Practical Byzantine Fault Tolerance (Castro and Liskov 1999)

Castro and Liskov made Byzantine agreement fast enough for real services. With n = 3f + 1 replicas, every quorum of 2f + 1 overlaps every other in at least f + 1 replicas, so in at least one honest replica. A replica prepares a value after 2f matching prepares and commits after 2f + 1 matching commits; no two honest replicas can commit different values in one view.

With one faulty replica among four, even an equivocating leader cannot make honest replicas commit different values. With two faulty replicas the quorums no longer intersect in an honest replica, and safety breaks. Tendermint, HotStuff and many proof-of-stake chains descend from PBFT.

import matplotlib.pyplot as plt

import blockchainkit as bk

An equivocating leader, one fault: still safe

safe = bk.consensus.pbft_round(4, faulty={0}, value="A", equivocate=True)
print("one faulty leader:", safe.commits)
assert len({v for v in safe.commits.values() if v}) <= 1

one faulty leader: {1: 'A', 2: 'A', 3: None}

Two faults among four: safety breaks

broken = bk.consensus.pbft_round(4, faulty={0, 1}, value="A", equivocate=True)
print("two faulty replicas:", broken.commits)
assert {v for v in broken.commits.values() if v} == {"A", "B"}

two faulty replicas: {2: 'A', 3: 'B'}

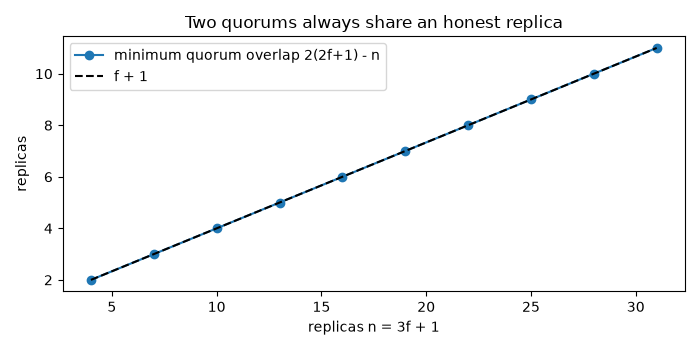

Quorum intersection

sizes = range(4, 32, 3)
overlap = [2 * bk.consensus.quorum_size(n) - n for n in sizes]
fig, ax = plt.subplots(figsize=(7, 3.5))
ax.plot(sizes, overlap, "o-", label="minimum quorum overlap 2(2f+1) - n")
ax.plot(sizes, [(n - 1) // 3 + 1 for n in sizes], "--", color="black", label="f + 1")
ax.set(
    xlabel="replicas n = 3f + 1",
    ylabel="replicas",
    title="Two quorums always share an honest replica",
)
ax.legend()
fig.tight_layout()

plt.show()

Exercise

Why does a replica wait for 2f + 1 commits and not 2f? Find the run where 2f would let two honest replicas commit different values.

A worked solution is in Exercises: consensus.
