Dandelion: hiding where a transaction came from (Bojja Venkatakrishnan et al. 2017)

When a peer broadcasts its own transaction by diffusion, it is usually the first to send it, so spy nodes that connect widely can guess the origin by noting which peer delivered each transaction to them first. Bojja Venkatakrishnan, Fanti and Viswanath proposed Dandelion: first pass the transaction along a random path (the stem), each hop continuing with a fixed probability, and only then diffuse it (the fluff). Spies then see the end of the stem.

With 10% spies, the first-spy estimator names the true origin about half as often under Dandelion as under diffusion. Precision does not reach zero: when the origin’s first stem hop happens to be a spy, the spy knows exactly who sent it.

from random import Random

import matplotlib.pyplot as plt

import blockchainkit as bk

10% spies on a 300-peer network

graph = bk.network.watts_strogatz(300, 8, 0.3, seed=4)
spies = set(Random(5).sample(range(300), 30))
precision = {
    mode: bk.network.first_spy_precision(graph, spies, mode=mode, trials=600, seed=1)
    for mode in ("diffusion", "dandelion")
}
print(precision)
assert precision["dandelion"] < 0.7 * precision["diffusion"]

{'diffusion': 0.21666666666666667, 'dandelion': 0.12333333333333334}

Longer stems

The stem continues with probability q at each hop, so its expected length is 1 / (1 - q).

qs = [0.0, 0.5, 0.75, 0.9]
stem = [
    bk.network.first_spy_precision(
        graph, spies, mode="dandelion", stem_probability=q, trials=600, seed=2
    )
    for q in qs
]
print([round(p, 3) for p in stem])
assert stem[-1] < stem[0]

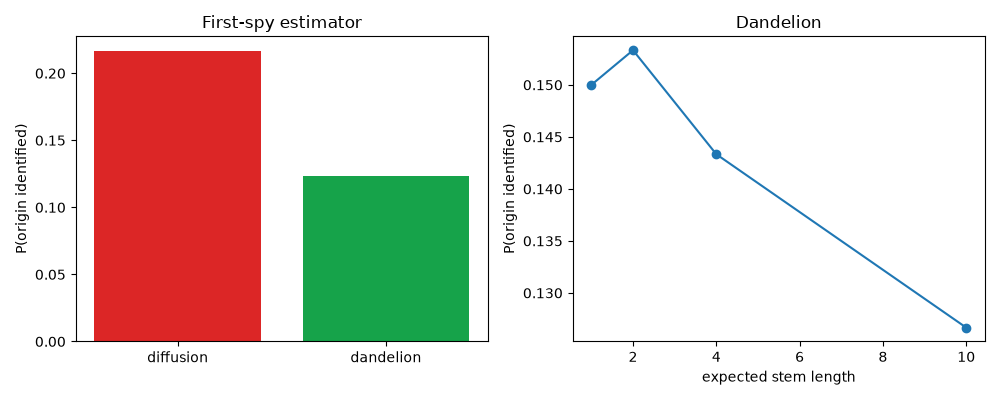

fig, (left, right) = plt.subplots(1, 2, figsize=(10, 4))
left.bar(precision.keys(), precision.values(), color=["#dc2626", "#16a34a"])
left.set(ylabel="P(origin identified)", title="First-spy estimator")
right.plot([1 / (1 - q) for q in qs], stem, "o-")
right.set(xlabel="expected stem length", ylabel="P(origin identified)", title="Dandelion")
fig.tight_layout()

plt.show()

[0.15, 0.153, 0.143, 0.127]

Exercise

Precision is roughly bounded below by the spy fraction: the chance the first stem hop is a spy. Vary the number of spies and plot both modes. Why does the original design route stems over a line-shaped anonymity graph rather than the full peer graph?
