Chaum’s blind signatures: authenticate a message the signer cannot see (1982)

Chaum’s construction separates authorization from knowledge of a message. This experiment exposes RSA’s multiplicative blinding identity with tiny integers; a usable payment system needs encoding, issuance, and spent-token rules.

What to look for

Follow the original message, its hidden form, and the final signature. The final check succeeds after removing the hiding factor; this is only the signing step of a payment system.

Read cells in order. An assert that produces no output has passed. The final exercise asks you to change an input and explain the result.

The history behind this experiment: Breakthroughs in Cryptography. See Exercises: cryptography for a worked solution to the exercise.

import matplotlib.pyplot as plt

import blockchainkit as bk

key = bk.crypto.rsa_keypair()
message, factor = 42, 7
blinded = bk.crypto.rsa_blind(message, factor, key)
blind_signature = key.decrypt(blinded)  # Private exponentiation by the signer.
signature = bk.crypto.rsa_unblind(blind_signature, factor, key)
assert key.encrypt(signature) == message
assert signature == key.decrypt(message)
print(f"Message {message}; blinded request {blinded}; final signature {signature}")

Message 42; blinded request 2508; final signature 3065

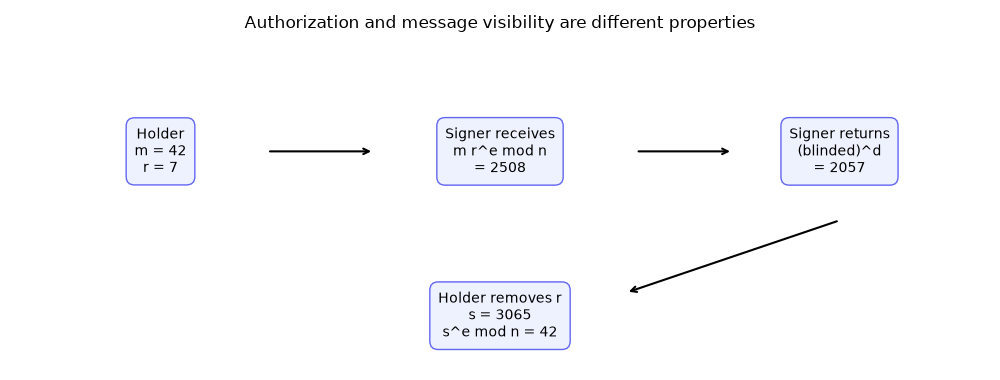

The signer sees the middle column, not the blinding factor

fig, ax = plt.subplots(figsize=(10, 3.8))
ax.set(xlim=(0, 1), ylim=(0, 1))
ax.axis("off")
labels = [
    (0.15, 0.65, f"Holder\nm = {message}\nr = {factor}"),
    (0.5, 0.65, f"Signer receives\nm r^e mod n\n= {blinded}"),
    (0.85, 0.65, f"Signer returns\n(blinded)^d\n= {blind_signature}"),
    (0.5, 0.15, f"Holder removes r\ns = {signature}\ns^e mod n = {message}"),
]
for x, y, label in labels:
    ax.text(
        x,
        y,
        label,
        ha="center",
        va="center",
        bbox={"boxstyle": "round,pad=0.6", "fc": "#eef2ff", "ec": "#6366f1"},
    )
for start, end in [
    ((0.26, 0.65), (0.37, 0.65)),
    ((0.64, 0.65), (0.74, 0.65)),
    ((0.85, 0.44), (0.63, 0.22)),
]:
    ax.annotate("", xy=end, xytext=start, arrowprops={"arrowstyle": "->", "lw": 1.5})
ax.set_title("Authorization and message visibility are different properties")
fig.tight_layout()

Exercise

Try an r that shares a factor with n. Why can it not be removed? Explain why blind signatures alone do not prevent spending the same token twice.
