RSA: a public trapdoor (Rivest, Shamir and Adleman 1978)

RSA publishes n = p*q and an exponent e; only the holder of p and q can compute the inverse exponent d. Anyone can raise a message to e; only the key holder can undo it. The same inverse pair gives digital signatures.

What to look for

The message 65 encrypts to 2790 and decrypts back. Then textbook RSA’s algebra shows through: multiplying a ciphertext by 2**e doubles the hidden message. Real RSA adds randomized padding (OAEP, PSS) to break this.

The history behind this experiment: Breakthroughs in Cryptography. See Exercises: cryptography for a worked solution to the exercise.

Encrypt and decrypt

import matplotlib.pyplot as plt

import blockchainkit as bk

key = bk.crypto.rsa_keypair()  # p = 61, q = 53, e = 17: the classic textbook key.
ciphertext = key.encrypt(65)
assert (ciphertext, key.decrypt(ciphertext)) == (2790, 65)
print("n =", key.n, "e =", key.e, "d =", key.d)
print("RSA: 65 ->", ciphertext, "->", key.decrypt(ciphertext))

n = 3233 e = 17 d = 2753
RSA: 65 -> 2790 -> 65

Signatures are the same operation in reverse

signature = key.decrypt(42)  # Apply the private exponent.
assert key.encrypt(signature) == 42  # Anyone can check with the public one.

Textbook RSA is malleable

Multiplying a ciphertext by 2**e multiplies the decrypted message by 2.

modified = ciphertext * pow(2, key.e, key.n) % key.n
assert key.decrypt(modified) == 130
print("Malleated ciphertext decrypts to", key.decrypt(modified))

Malleated ciphertext decrypts to 130

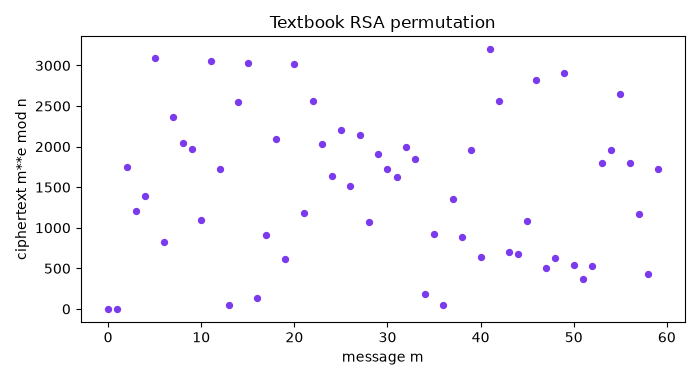

A permutation of the residues

fig, ax = plt.subplots(figsize=(7, 3.8))
messages = list(range(60))
ax.scatter(messages, [key.encrypt(m) for m in messages], s=18, color="#7c3aed")
ax.set(xlabel="message m", ylabel="ciphertext m**e mod n", title="Textbook RSA permutation")
fig.tight_layout()

Exercise

Factor n = 3233 by trial division and recompute d. Explain why a scrambled-looking plot is not evidence of secure encryption.
