Kademlia: routing by XOR distance (Maymounkov and Mazières 2002)

A distributed hash table stores each key at the nodes whose identifiers are closest to it, and lets any node find them without a central index. Kademlia measures closeness as the XOR of two identifiers. Each node keeps a k-bucket of contacts at every distance scale: a few nodes that share none of its leading bits, a few that share exactly one, and so on. Every hop toward a key at least fixes the next differing bit, so a lookup among n nodes takes about log2 n hops at most and far fewer on average. Ethereum’s discovery protocol and IPFS use Kademlia.

What to look for

Every lookup ends at the true closest node. The number of hops grows by a constant each time n quadruples: logarithmic growth, a straight line on a log axis. Larger buckets mean fewer hops, at the price of bigger tables.

The history behind this experiment: Breakthroughs in Peer-to-Peer Networking.

Build networks of 64 to 4096 nodes

from random import Random

import matplotlib.pyplot as plt
import numpy as np

import blockchainkit as bk

random = Random(1)
sizes = [64, 256, 1024, 4096]
mean_hops = {1: [], 4: []}
for n in sizes:
    ids = random.sample(range(2**32), n)
    for k in mean_hops:
        network = bk.network.KademliaNetwork(ids, bits=32, k=k, seed=1)
        hops = []
        for _ in range(200):
            target = random.randrange(2**32)
            result = network.lookup(random.choice(ids), target)
            assert result.found == network.closest(target, 1)[0]
            hops.append(result.hops)
        mean_hops[k].append(np.mean(hops))
print({k: [round(float(h), 2) for h in v] for k, v in mean_hops.items()})
steps = np.diff(mean_hops[1])
assert all(0.4 < step < 1.6 for step in steps)  # About one more hop per quadrupling.

{1: [2.91, 3.81, 4.79, 5.93], 4: [1.7, 2.23, 2.88, 3.4]}

One lookup, bit by bit

Each hop shares a longer prefix with the target.

network = bk.network.KademliaNetwork(ids, bits=32, k=1, seed=1)
target = 0xDEADBEEF
for node in network.lookup(ids[0], target).path:
    shared = 32 - bk.network.xor_distance(node, target).bit_length()
    print(f"{node:032b}  shares {shared:2d} leading bits")

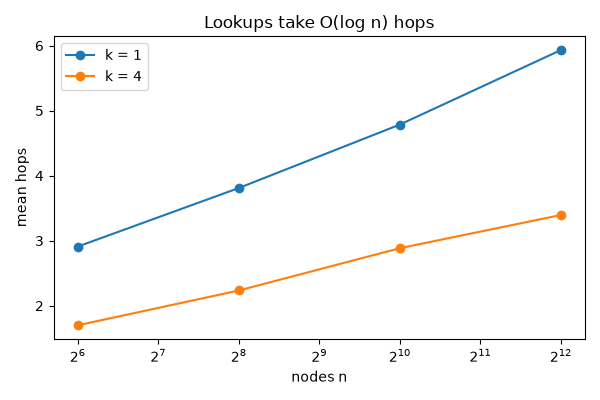

fig, ax = plt.subplots(figsize=(6, 4))
for k, hops in mean_hops.items():
    ax.semilogx(sizes, hops, "o-", base=2, label=f"k = {k}")
ax.set(xlabel="nodes n", ylabel="mean hops", title="Lookups take O(log n) hops")
ax.legend()
fig.tight_layout()

11101000111001111111010001001101  shares  2 leading bits
11000010111100000000101000010111  shares  3 leading bits
11010110001011101010100011011001  shares  4 leading bits
11011011100000111100110100100111  shares  5 leading bits
11011100100100110100000100111010  shares  6 leading bits
11011110011000100111111001010110  shares  8 leading bits
11011110101101011111001111100001  shares 11 leading bits
11011110101011000111001110111001  shares 15 leading bits

Exercise

Real Kademlia queries alpha = 3 contacts in parallel and keeps the k closest it has heard of. Why does that make a lookup robust when some contacts are offline, and how would you count its hops?
