Merkle mountain ranges: an append-only accumulator (Todd 2016)

Peter Todd described a structure for logs that only grow, designed for OpenTimestamps: a list of perfect Merkle trees (“peaks”) of decreasing size. Appending adds a one-leaf peak and merges equal-sized neighbours, like carrying in binary addition. Old peaks are never rewritten, so an append costs about two hashes, however long the range is.

What to look for

The number of peaks equals the number of 1-bits in the size. Every leaf has a short proof to its peak. Grin and other chains use mountain ranges to commit to their entire history of outputs or headers.

The history behind this experiment: Breakthroughs in Authenticated Data Structures. See Exercises: ledgers and data structures for a worked solution to the exercise.

Grow a range and watch the peaks

import matplotlib.pyplot as plt

import blockchainkit as bk

mmr = bk.structures.MerkleMountainRange()
peak_counts, merges = [], []
for i in range(64):
    before = len(mmr.peaks)
    mmr = mmr.append(f"header {i}".encode())
    peak_counts.append(len(mmr.peaks))
    merges.append(before + 1 - len(mmr.peaks))
assert all(count == bin(n + 1).count("1") for n, count in enumerate(peak_counts))
print(f"64 appends needed {sum(merges)} merges in total ({sum(merges) / 64:.2f} per append)")

64 appends needed 63 merges in total (0.98 per append)

Prove one old leaf

proof = mmr.proof(37)
assert bk.structures.verify_mmr_proof(b"header 37", proof, mmr.root)
assert not bk.structures.verify_mmr_proof(b"header 99", proof, mmr.root)

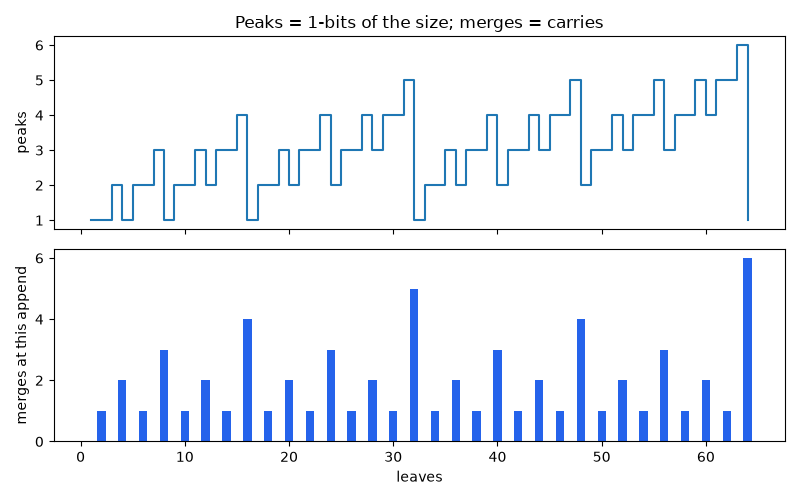

fig, (top, bottom) = plt.subplots(2, 1, figsize=(8, 5), sharex=True)
top.step(range(1, 65), peak_counts, where="post")
top.set(ylabel="peaks", title="Peaks = 1-bits of the size; merges = carries")
bottom.bar(range(1, 65), merges, color="#2563eb")
bottom.set(xlabel="leaves", ylabel="merges at this append")
fig.tight_layout()

Exercise

When does a single append cause the most merges? Relate the answer to carries when adding 1 in binary, and compute the average over 2**k appends.
