Replay protection with a chain identifier (EIP-155, 2016)

In 2016 Ethereum split into two chains, Ethereum and Ethereum Classic, with the same accounts and keys. A transaction signed for one was valid on the other: anyone could replay it, moving the sender’s coins on both. EIP-155 added the chain id to what is signed, so a signature belongs to exactly one network.

What to look for

A payment signed for one chain is rejected by a ledger with a different chain id, while an account nonce still prevents replay within one chain.

The history behind this experiment: Breakthroughs in Authenticated Data Structures.

Two networks, same keys, same balances

import matplotlib.pyplot as plt

import blockchainkit as bk

alice_key = 7
alice_pub = bk.crypto.public_key(alice_key)
alice = bk.structures.address(alice_pub)
bob = bk.structures.address(bk.crypto.public_key(11))
mainnet = bk.structures.Ledger({alice: 100}, chain_id="mainnet")
fork = bk.structures.Ledger({alice: 100}, chain_id="classic")

tx = bk.structures.Transaction(alice_pub, bob, 40, 0, chain_id="mainnet").signed(
    alice_key, signing_nonce=5
)
mainnet = mainnet.apply([tx])
try:
    fork.apply([tx])
except ValueError as error:
    print("Replay on the other chain rejected:", error)
assert fork.balances[alice] == 100

Replay on the other chain rejected: wrong chain ID or invalid signature

The chain id is part of the signed bytes

assert b'"chain_id":"mainnet"' in tx.payload()
results = {}
for label, ledger in (
    ("same chain, new", bk.structures.Ledger({alice: 100}, chain_id="mainnet")),
    ("same chain, replay", mainnet),
    ("other chain", fork),
):
    try:
        ledger.apply([tx])
        results[label] = True
    except ValueError:
        results[label] = False
assert results == {"same chain, new": True, "same chain, replay": False, "other chain": False}

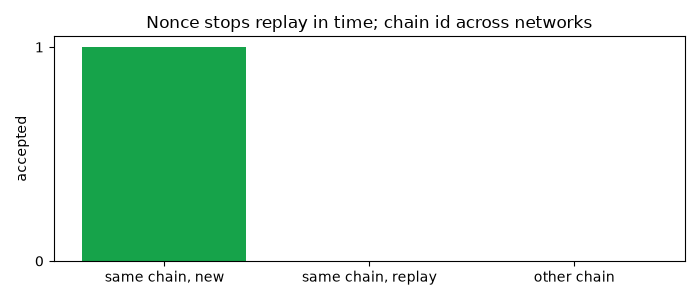

fig, ax = plt.subplots(figsize=(7, 3))
ax.bar(results.keys(), [int(v) for v in results.values()], color=["#16a34a", "#dc2626", "#dc2626"])
ax.set(
    ylabel="accepted", yticks=[0, 1], title="Nonce stops replay in time; chain id across networks"
)
fig.tight_layout()

Exercise

Before EIP-155, how could a cautious user split their coins safely after the fork? (Hint: make a transaction that is valid on only one chain.)
