Gaussian quadrature: optimal nodes are exact to degree 2n-1

Gauss let a quadrature rule choose its sample points as well as its weights. The optimal \(n\) nodes turn out to be the roots of the Legendre polynomial \(P_n\), and the resulting rule integrates every polynomial of degree up to \(2n-1\) exactly – about twice the degree an equally spaced rule with the same number of points manages. This example shows the nodes and weights from legendre_nodes_and_weights(), checks the degree of exactness of GaussianQuadrature, and compares its convergence with the equally spaced trapezoidal rule.

import matplotlib.pyplot as plt
import numpy as np
from numpy.polynomial import legendre

from mathematicskit.calculus import GaussianQuadrature, TrapezoidalRule, legendre_nodes_and_weights

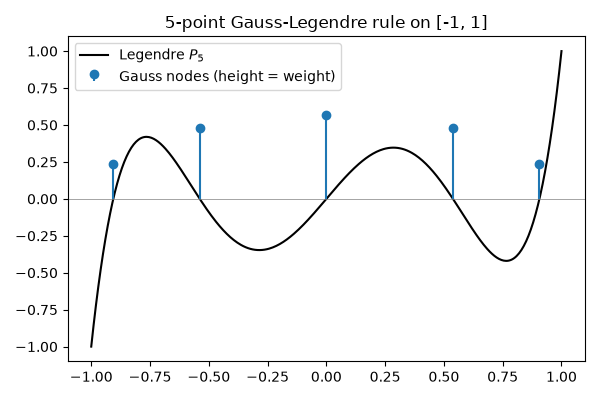

Nodes are the roots of the Legendre polynomial

n = 5
nodes, weights = legendre_nodes_and_weights(n)
grid = np.linspace(-1, 1, 400)
p_n = legendre.Legendre.basis(n)

fig, ax = plt.subplots(figsize=(6, 4))
ax.plot(grid, p_n(grid), "k", label=f"Legendre $P_{n}$")
ax.axhline(0, color="gray", lw=0.5)
ax.stem(nodes, weights, linefmt="C0-", markerfmt="C0o", basefmt=" ", label="Gauss nodes (height = weight)")
ax.set_title(f"{n}-point Gauss-Legendre rule on [-1, 1]")
ax.legend()
fig.tight_layout()

print("nodes:  ", np.round(nodes, 6))
print("weights:", np.round(weights, 6))
print("max |P_n(node)|:", float(np.max(np.abs(p_n(nodes)))))

nodes:   [-0.90618  -0.538469  0.        0.538469  0.90618 ]
weights: [0.236927 0.478629 0.568889 0.478629 0.236927]
max |P_n(node)|: 1.1102230246251565e-16

Exact for every polynomial of degree up to 2n - 1

With \(n = 5\) nodes, \(x^k\) over \([0, 1]\) is integrated to round-off for \(k \le 9\) and first fails at \(k = 10\).

rule = GaussianQuadrature(n=n)
for k in range(2 * n + 2):
    err = abs(rule.integrate(lambda x, k=k: x**k, 0.0, 1.0).value - 1.0 / (k + 1))
    print(f"degree {k:2d}: error = {err:.2e}{'  <- exactness lost' if k == 2 * n else ''}")

degree  0: error = 0.00e+00
degree  1: error = 0.00e+00
degree  2: error = 5.55e-17
degree  3: error = 1.11e-16
degree  4: error = 8.33e-17
degree  5: error = 8.33e-17
degree  6: error = 1.11e-16
degree  7: error = 8.33e-17
degree  8: error = 9.71e-17
degree  9: error = 8.33e-17
degree 10: error = 1.43e-06  <- exactness lost
degree 11: error = 7.87e-06

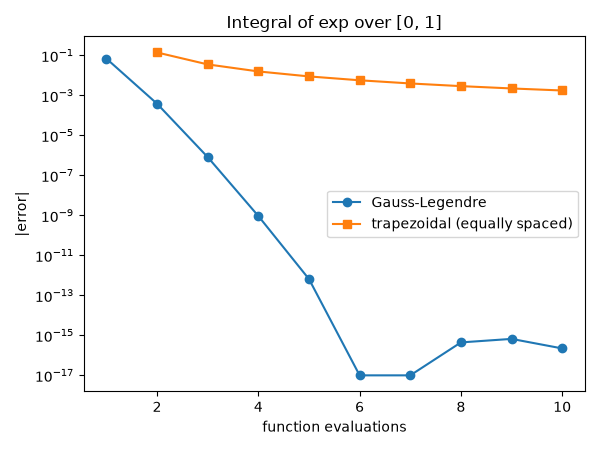

Far fewer evaluations than an equally spaced rule

f, a, b, exact = np.exp, 0.0, 1.0, np.e - 1.0
ns = np.arange(1, 11)
err_gauss = [abs(GaussianQuadrature(n=int(k)).integrate(f, a, b).value - exact) for k in ns]
err_trap = [abs(TrapezoidalRule(n=int(k) - 1).integrate(f, a, b).value - exact) if k > 1 else np.nan for k in ns]

fig, ax = plt.subplots(figsize=(6, 4.5))
ax.semilogy(ns, np.maximum(err_gauss, 1e-17), "o-", label="Gauss-Legendre")
ax.semilogy(ns, err_trap, "s-", label="trapezoidal (equally spaced)")
ax.set_xlabel("function evaluations")
ax.set_ylabel("|error|")
ax.set_title("Integral of exp over [0, 1]")
ax.legend()
fig.tight_layout()

plt.show()
