Euclid’s algorithm and Bézout’s identity

Euclid’s Elements (Book VII, Propositions 1-2) finds the greatest common divisor by repeating \(\gcd(a, b) = \gcd(b, a \bmod b)\) until the remainder vanishes. This script traces the division steps for one pair, recovers Bézout’s coefficients \(ax + by = \gcd(a, b)\) with extended_gcd(), and maps how many steps the algorithm needs: the slowest inputs are consecutive Fibonacci numbers (Lamé, 1844).

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.number_theory import extended_gcd, gcd, mod_inverse

Euclid’s division steps for gcd(1071, 462)

def euclid_steps(a, b):
    """Return the list of (a, b, q, r) rows of Euclid's algorithm."""
    rows = []
    while b:
        q, r = divmod(a, b)
        rows.append((a, b, q, r))
        a, b = b, r
    return rows


for a, b, q, r in euclid_steps(1071, 462):
    print(f"  {a:>4} = {q} * {b:>3} + {r}")
print(f"gcd(1071, 462) = {gcd(1071, 462)}")

  1071 = 2 * 462 + 147
   462 = 3 * 147 + 21
   147 = 7 *  21 + 0
gcd(1071, 462) = 21

Bézout’s identity from the extended algorithm

bez = extended_gcd(1071, 462)
print(f"1071 * ({bez.x}) + 462 * ({bez.y}) = {1071 * bez.x + 462 * bez.y} = gcd {bez.gcd}")
inv = mod_inverse(17, 3120)
print(f"17^-1 mod 3120 = {inv}  (check: 17 * {inv} mod 3120 = {17 * inv % 3120})")

1071 * (-3) + 462 * (7) = 21 = gcd 21
17^-1 mod 3120 = 2753  (check: 17 * 2753 mod 3120 = 1)

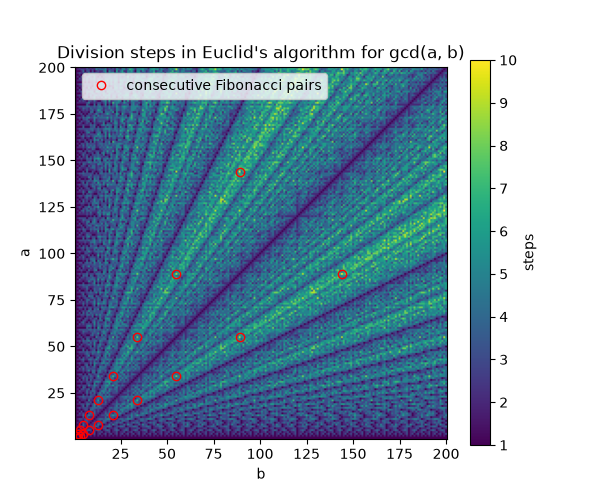

How many division steps does each pair need?

Bright cells are the slow pairs; the worst case up to any bound is a pair of consecutive Fibonacci numbers, so the step count grows only logarithmically in the inputs.

N = 200
steps = np.array([[len(euclid_steps(max(a, b), min(a, b))) for b in range(1, N + 1)] for a in range(1, N + 1)])
fib = [1, 2]
while fib[-1] + fib[-2] <= N:
    fib.append(fib[-1] + fib[-2])
print(f"max steps for a, b <= {N}: {steps.max()} (Fibonacci pair {fib[-1]}, {fib[-2]}: {len(euclid_steps(fib[-1], fib[-2]))})")

fig, ax = plt.subplots(figsize=(6, 5))
im = ax.imshow(steps, origin="lower", extent=(0.5, N + 0.5, 0.5, N + 0.5), cmap="viridis")
ax.plot(fib[1:] + fib[:-1], fib[:-1] + fib[1:], "o", mfc="none", mec="red", label="consecutive Fibonacci pairs")
ax.set_xlabel("b")
ax.set_ylabel("a")
ax.set_title("Division steps in Euclid's algorithm for gcd(a, b)")
ax.legend(loc="upper left")
fig.colorbar(im, ax=ax, label="steps")
plt.show()

max steps for a, b <= 200: 10 (Fibonacci pair 144, 89: 10)
