Lagrange vs. Newton divided-difference interpolation

There is exactly one polynomial of degree \(\leq n\) through \(n+1\) distinct points, so LagrangeInterpolant and NewtonDividedDifference – built from completely different representations (a sum of basis polynomials vs. nested divided differences) – must produce identical curves. Both are also exact for any polynomial up to the interpolation degree, which this script verifies directly.

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.numerical_analysis import LagrangeInterpolant, NewtonDividedDifference

Same data, two representations

x = np.array([0.0, 1.0, 2.0, 3.0, 4.0])
y = np.sin(x) + 0.5 * x

p_lagrange = LagrangeInterpolant(x, y)
p_newton = NewtonDividedDifference(x, y)

x_fine = np.linspace(x.min(), x.max(), 300)
y_lagrange = p_lagrange.evaluate(x_fine)
y_newton = p_newton.evaluate(x_fine)

print("max |Lagrange - Newton| over the fine grid:", np.max(np.abs(y_lagrange - y_newton)))

fig, ax = plt.subplots(figsize=(6, 4))
ax.plot(x_fine, y_lagrange, color="steelblue", lw=2, label="Lagrange")
ax.plot(x_fine, y_newton, "--", color="firebrick", lw=1.5, label="Newton divided-difference")
ax.scatter(x, y, color="black", zorder=3, label="nodes")

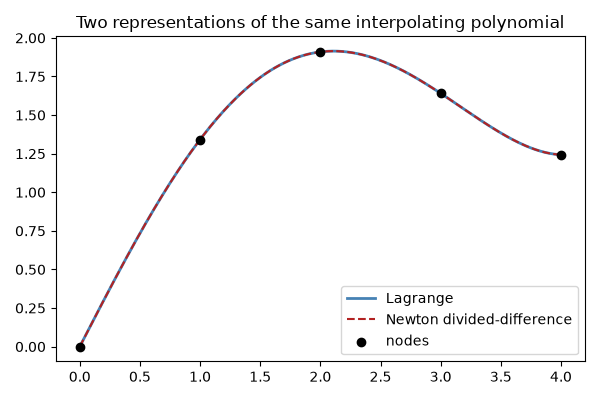

ax.set_title("Two representations of the same interpolating polynomial")
ax.legend()
fig.tight_layout()

max |Lagrange - Newton| over the fine grid: 8.881784197001252e-16

Exactness on a polynomial up to the interpolation degree

A degree-4 polynomial through 5 nodes should be reproduced to floating-point precision.

x5 = np.linspace(0.0, 4.0, 5)
y5 = 2.0 * x5**4 - 3.0 * x5**3 + x5 - 1.0
p5 = NewtonDividedDifference(x5, y5)
x_test = np.linspace(0.0, 4.0, 50)
expected = 2.0 * x_test**4 - 3.0 * x_test**3 + x_test - 1.0
print("max error vs. exact degree-4 polynomial:", np.max(np.abs(p5.evaluate(x_test) - expected)))

plt.show()

max error vs. exact degree-4 polynomial: 5.684341886080802e-14
