BFGS: Newton-like convergence without second derivatives

On the Rosenbrock function from (-1.2, 1.0), BFGS builds an inverse-Hessian approximation from gradients alone. It needs only a few dozen iterations, as few as Newton’s method with the exact Hessian at every step, while gradient descent needs thousands. Near the minimum its convergence is superlinear: the ratio of successive errors tends to zero.

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.optimization import BFGS, GradientDescentLineSearch, NewtonMethod, rosenbrock, rosenbrock_grad, rosenbrock_hess
from mathematicskit.optimization.visualizers.plots import plot_contour_path, plot_convergence_comparison

BFGS against Newton’s method and gradient descent

x0 = [-1.2, 1.0]
results = {
    "gradient descent": GradientDescentLineSearch(tol=1e-6, max_iter=5000).minimize(rosenbrock, rosenbrock_grad, x0),
    "Newton (exact Hessian)": NewtonMethod(tol=1e-8).minimize(rosenbrock, rosenbrock_grad, x0, hess=rosenbrock_hess),
    "BFGS (gradients only)": BFGS(tol=1e-8).minimize(rosenbrock, rosenbrock_grad, x0),
}
for name, result in results.items():
    print(f"{name}: {result.iterations} iterations, converged = {result.converged}, x = {result.x.round(6)}")

gradient descent: 5000 iterations, converged = False, x = [0.999049 0.998091]
Newton (exact Hessian): 85 iterations, converged = True, x = [1. 1.]
BFGS (gradients only): 34 iterations, converged = True, x = [1. 1.]

Superlinear convergence of BFGS

The error ratio \(\|x_{k+1}-x^*\| / \|x_k-x^*\|\) stays bounded away from zero for a linearly convergent method; for BFGS it tends to zero.

bfgs = results["BFGS (gradients only)"]
err = np.linalg.norm(bfgs.path - np.array([1.0, 1.0]), axis=1)
ratios = err[1:] / err[:-1]
print("last BFGS error ratios:", np.round(ratios[-6:-1], 3))

last BFGS error ratios: [0.6   0.072 0.015 0.011 0.027]

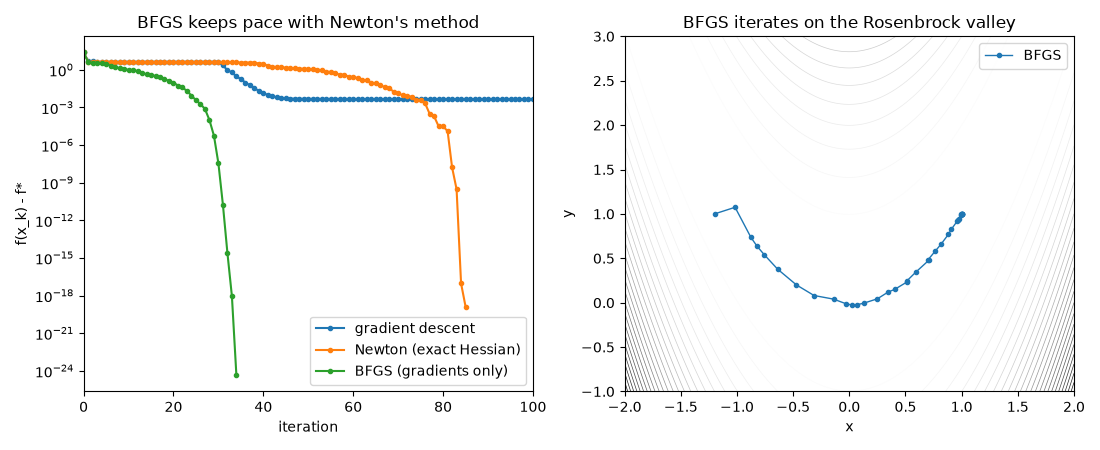

Convergence rates and the BFGS path

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 4.5))
plot_convergence_comparison(results, rosenbrock, f_star=0.0, ax=ax1)
ax1.set_xlim(0, 100)
ax1.set_title("BFGS keeps pace with Newton's method")
plot_contour_path(rosenbrock, bfgs, ax=ax2, x_range=(-2.0, 2.0), y_range=(-1.0, 3.0), label="BFGS")
ax2.set_title("BFGS iterates on the Rosenbrock valley")
fig.tight_layout()
