Rumor spreading in log2 n + ln n rounds (Frieze and Grimmett 1985, Pittel 1987)

How long does push gossip take to reach everyone? On the complete graph, Frieze and Grimmett, and then Pittel more precisely, showed it takes log2 n + ln n + O(1) rounds. The first term is the doubling phase, while almost every call reaches someone new; the second is a coupon-collector phase, while the last few peers wait to be called.

What to look for

The measured rounds track log2 n + ln n with a gap that stays roughly constant as n grows a thousandfold. A network of a million peers needs only about 34 rounds: this is why gossip scales.

The history behind this experiment: Breakthroughs in Peer-to-Peer Networking. See Exercises: networking for a worked solution to the exercise.

Measure rounds for n from 16 to 16384

import matplotlib.pyplot as plt
import numpy as np

import blockchainkit as bk

sizes = [2**k for k in range(4, 15, 2)]
measured = [np.mean([bk.network.spread_rumor(n, seed=s).rounds for s in range(8)]) for n in sizes]
predicted = [bk.network.pittel_rounds(n) for n in sizes]
gaps = [m - p for m, p in zip(measured, predicted, strict=True)]
print([round(float(g), 2) for g in gaps])
assert max(gaps) - min(gaps) < 2.5  # The O(1) term does not grow with n.
print(round(bk.network.pittel_rounds(10**6), 1), "rounds for a million peers")

[0.73, 1.09, 1.7, 0.94, 0.93, 1.3]
33.7 rounds for a million peers

The two phases

run = bk.network.spread_rumor(16384, seed=1)
doubling = next(r for r, count in enumerate(run.informed) if count > 16384 / 2)
print(f"half informed after {doubling} rounds; done after {run.rounds}")
assert abs(doubling - np.log2(16384)) < 2

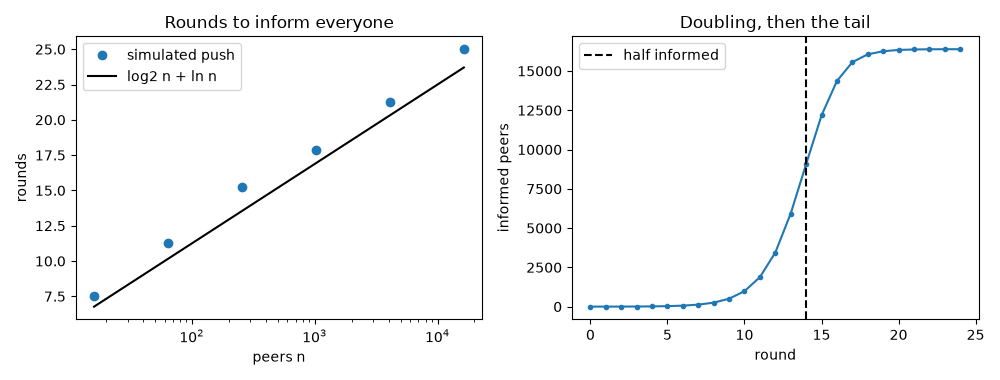

fig, (left, right) = plt.subplots(1, 2, figsize=(10, 3.8))
left.semilogx(sizes, measured, "o", label="simulated push")
left.semilogx(sizes, predicted, "-", color="black", label="log2 n + ln n")
left.set(xlabel="peers n", ylabel="rounds", title="Rounds to inform everyone")
left.legend()
right.plot(run.informed, marker="o", markersize=3)
right.axvline(doubling, color="black", linestyle="--", label="half informed")
right.set(xlabel="round", ylabel="informed peers", title="Doubling, then the tail")
right.legend()
fig.tight_layout()

half informed after 14 rounds; done after 24

Exercise

Run push on a ring (bk.network.ring_lattice(n, 2)) instead of the complete graph. How do the rounds grow with n now, and why?
