Gas repricing after denial-of-service attacks (EIP-150, 2016)

Gas is meant to be proportional to the work an instruction costs every node. In September 2016 attackers found instructions that were cheap in gas but slow to execute, because they read state from disk, and filled blocks with them, slowing nodes to a crawl. EIP-150 (“Tangerine Whistle”) raised their prices: reading storage went from 50 to 200 gas, and EXTCODESIZE and CALL from 20 and 40 to 700.

What to look for

An attacker picks the instruction with the most real work per unit of gas. Under the old schedule, a block of storage reads takes several times longer to process than a block of arithmetic with the same gas; after repricing the gap shrinks. A gas schedule is a security parameter.

The history behind this experiment: Breakthroughs in Replicated Execution. See Exercises: execution for a worked solution to the exercise.

Fill a block with each program

import matplotlib.pyplot as plt

import blockchainkit as bk

# Teaching estimate of each instruction's real cost, in arithmetic units:
# reading storage means a disk access.
REAL_COST = {"LOAD": 100}
before = {"LOAD": 50, "ADD": 3, "DROP": 2, "PUSH": 3, "JMP": 8}
after = {**before, "LOAD": 200}

programs = {
    "arithmetic": bk.vm.assemble("PUSH 1\ntop:\n    PUSH 1\n    ADD\n    JMP top"),
    "storage reads": bk.vm.assemble("top:\n    LOAD 0\n    DROP\n    JMP top"),
}


def block_work(program, schedule, gas=200_000):
    """Real work done by one block's worth of gas spent looping on ``program``."""
    try:
        bk.vm.execute(program, gas_limit=gas, gas_costs=schedule, trace=True)
    except bk.vm.VMError as error:  # Every loop ends by running out of gas.
        return sum(REAL_COST.get(step.opcode, 1) for step in error.trace)
    raise AssertionError("the loop should run out of gas")


work = {
    name: {label: block_work(p, s) for label, s in (("before", before), ("after", after))}
    for name, p in programs.items()
}
ratio = {
    label: work["storage reads"][label] / work["arithmetic"][label] for label in ("before", "after")
}
print(work)
print({label: round(r, 1) for label, r in ratio.items()})
assert ratio["before"] > 2 * ratio["after"]

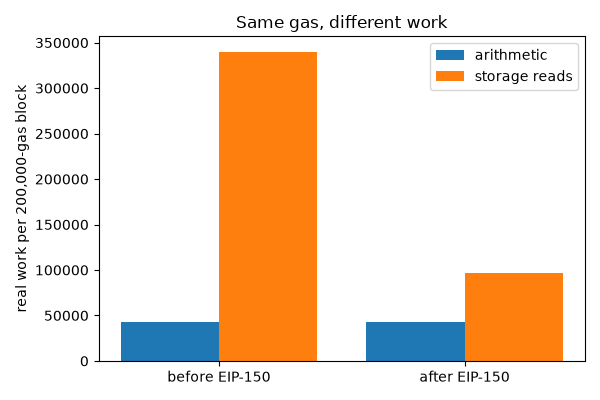

fig, ax = plt.subplots(figsize=(6, 4))
x = range(2)
for i, name in enumerate(programs):
    ax.bar(
        [j + 0.4 * i - 0.2 for j in x], [work[name]["before"], work[name]["after"]], 0.4, label=name
    )
ax.set_xticks(list(x), ["before EIP-150", "after EIP-150"])
ax.set(ylabel="real work per 200,000-gas block", title="Same gas, different work")
ax.legend()
fig.tight_layout()

{'arithmetic': {'before': 42858, 'after': 42858}, 'storage reads': {'before': 339966, 'after': 97104}}
{'before': 7.9, 'after': 2.3}

Exercise

Choose a LOAD price that makes the two programs equally expensive per unit of real work. Why did EIP-150 not simply set every price that way, and what did EIP-2929 (2021) change about pricing storage reads?
