Hamming codes (1950)

Tired of weekend jobs on the Bell Labs relay computers stopping at every error, Hamming designed codes that correct them. The (7,4) code adds three parity bits so that the syndrome – which checks fail – spells out the position of a single flipped bit in binary. Over a binary symmetric channel it trades rate 4/7 for a much lower bit error rate when errors are rare.

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.information_theory import bsc_transmit, hamming_decode, hamming_encode, hamming_parity_check_matrix

H = hamming_parity_check_matrix(3)
word = hamming_encode([1, 0, 1, 1])
corrupted = word.copy()
corrupted[4] ^= 1
syndrome = (H.astype(int) @ corrupted) % 2
print("codeword ", word, "\nreceived ", corrupted)
print(f"syndrome {syndrome[::-1]} = position {int(syndrome @ [1, 2, 4])} -> decoded {hamming_decode(corrupted)}")

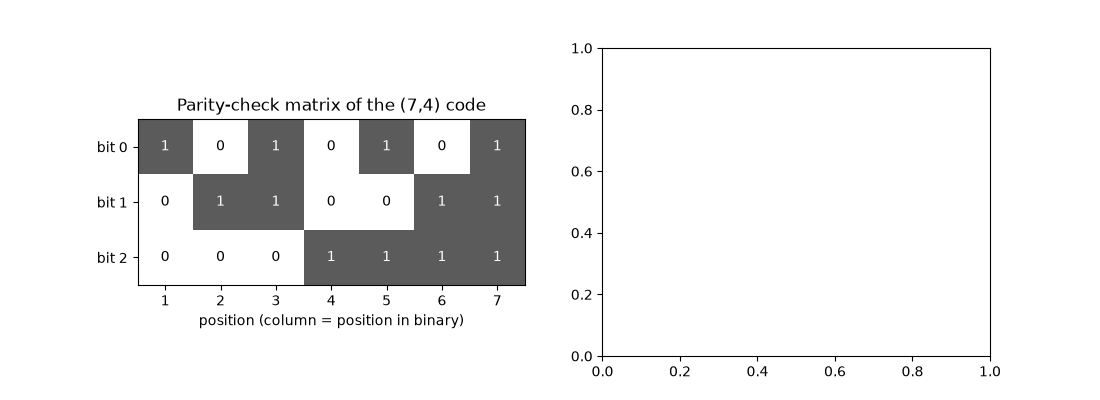

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 4))
ax1.imshow(H, cmap="Greys", vmin=0, vmax=1.4)
for (i, j), v in np.ndenumerate(H):
    ax1.text(j, i, v, ha="center", va="center", color="w" if v else "k")
ax1.set_xticks(range(7), [str(j + 1) for j in range(7)])
ax1.set_yticks(range(3), ["bit 0", "bit 1", "bit 2"])
ax1.set_xlabel("position (column = position in binary)")
ax1.set_title("Parity-check matrix of the (7,4) code")

codeword  [0 1 1 0 0 1 1]
received  [0 1 1 0 1 1 1]
syndrome [1 0 1] = position 5 -> decoded [1 0 1 1]

Text(0.5, 1.0, 'Parity-check matrix of the (7,4) code')

Bit error rate on a binary symmetric channel

rng = np.random.default_rng(0)
ps = np.logspace(-3, -0.7, 12)
for r in (3, 4, 5):
    k = 2**r - r - 1
    message = rng.integers(0, 2, k * 4000)
    ber = [np.mean(hamming_decode(bsc_transmit(hamming_encode(message, r), p, seed=rng), r) != message) for p in ps]
    ax2.loglog(ps, ber, "o-", label=f"Hamming ({2**r - 1},{k})")
ax2.loglog(ps, ps, "k--", label="uncoded")
ax2.set_xlabel("crossover probability p")
ax2.set_ylabel("decoded bit error rate")
ax2.legend()

<matplotlib.legend.Legend object at 0x1135316a0>
