Diophantus and the linear equation ax + by = c

Diophantus’s Arithmetica asks for whole-number solutions of equations with more unknowns than constraints. For the linear case \(ax + by = c\), integer solutions exist exactly when \(\gcd(a, b)\) divides \(c\), and then they form one infinite family spaced evenly along the line. This script solves \(12x + 18y = 30\), shows that \(12x + 18y = 31\) has no solution, and plots the integer points on the line.

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.number_theory import solve_linear_diophantine

Solvable: 12x + 18y = 30 (gcd 6 divides 30)

linear = solve_linear_diophantine(12, 18, 30)
print(f"particular solution: x={linear.x0}, y={linear.y0} (gcd={linear.gcd})")
print(f"general solution: x = {linear.x0} + {linear.x_step}k, y = {linear.y0} - {linear.y_step}k")
for k in range(-2, 3):
    x = linear.x0 + k * linear.x_step
    y = linear.y0 - k * linear.y_step
    print(f"  k={k:>2}: (x, y) = ({x:>3}, {y:>3}), 12x + 18y = {12 * x + 18 * y}")

particular solution: x=-5, y=5 (gcd=6)
general solution: x = -5 + 3k, y = 5 - 2k
  k=-2: (x, y) = (-11,   9), 12x + 18y = 30
  k=-1: (x, y) = ( -8,   7), 12x + 18y = 30
  k= 0: (x, y) = ( -5,   5), 12x + 18y = 30
  k= 1: (x, y) = ( -2,   3), 12x + 18y = 30
  k= 2: (x, y) = (  1,   1), 12x + 18y = 30

Unsolvable: 12x + 18y = 31 (gcd 6 does not divide 31)

print("12x + 18y = 31 solvable:", solve_linear_diophantine(12, 18, 31).has_solution)

12x + 18y = 31 solvable: False

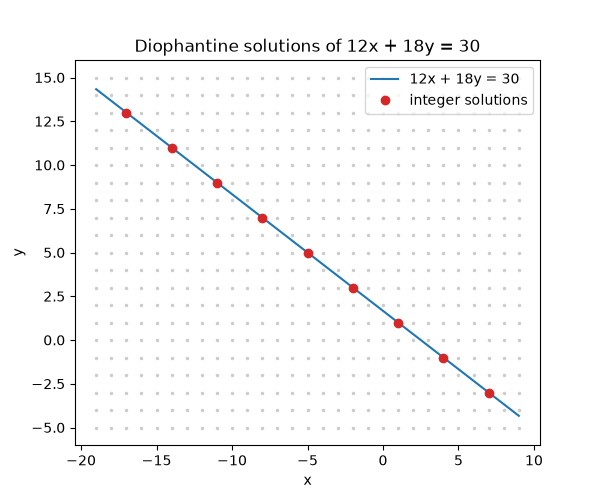

The integer solutions lie evenly spaced on the line

ks = np.arange(-4, 5)
xs = linear.x0 + ks * linear.x_step
ys = linear.y0 - ks * linear.y_step
line_x = np.linspace(xs.min() - 2, xs.max() + 2, 2)

fig, ax = plt.subplots(figsize=(6, 5))
gx, gy = np.meshgrid(np.arange(xs.min() - 2, xs.max() + 3), np.arange(ys.min() - 2, ys.max() + 3))
ax.plot(gx, gy, ".", color="0.8", ms=3)
ax.plot(line_x, (30 - 12 * line_x) / 18, "-", color="tab:blue", label="12x + 18y = 30")
ax.plot(xs, ys, "o", color="tab:red", label="integer solutions")
ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_title("Diophantine solutions of 12x + 18y = 30")
ax.legend()
plt.show()
