Kahan’s compensated summation

Adding \(n\) floating-point numbers one at a time can accumulate error proportional to \(n\). William Kahan’s 1965 algorithm carries the rounding error of each addition forward in a correction term, so the error stays at a few units in the last place however many terms are added. This script sums \(0.1\) repeatedly and compares the naive loop, Kahan’s algorithm, and NumPy’s pairwise summation against the exactly rounded result from math.fsum().

import math

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.numerical_analysis import kahan_sum


def naive_sum(values):
    s = 0.0
    for v in values:
        s += v
    return s

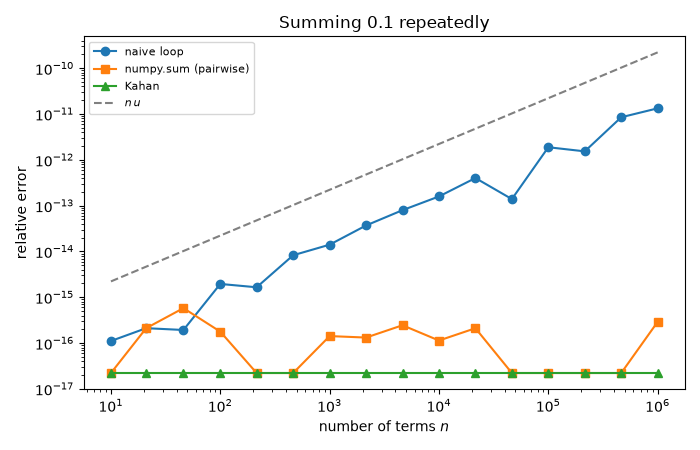

Relative error against the number of terms

sizes = np.unique(np.logspace(1, 6, 16).astype(int))
eps = np.finfo(float).eps
errors = {"naive loop": [], "numpy.sum (pairwise)": [], "Kahan": []}
for n in sizes:
    values = [0.1] * int(n)
    exact = math.fsum(values)
    for name, total in (("naive loop", naive_sum(values)), ("numpy.sum (pairwise)", float(np.sum(values))), ("Kahan", kahan_sum(values))):
        errors[name].append(max(abs(total - exact) / exact, eps / 10))

fig, ax = plt.subplots(figsize=(7, 4.5))
for name, marker in zip(errors, "os^"):
    ax.loglog(sizes, errors[name], marker + "-", label=name)
ax.loglog(sizes, sizes * eps, "--", color="gray", label=r"$n\,u$")
ax.set_xlabel("number of terms $n$")
ax.set_ylabel("relative error")
ax.set_title("Summing 0.1 repeatedly")
ax.legend(fontsize=8)
fig.tight_layout()

for name in errors:
    print(f"{name:22s} n = {sizes[-1]}: relative error {errors[name][-1]:.1e}")

plt.show()

naive loop             n = 1000000: relative error 1.3e-11
numpy.sum (pairwise)   n = 1000000: relative error 2.9e-16
Kahan                  n = 1000000: relative error 2.2e-17
