Runge, Heun and Kutta: Runge-Kutta methods

Runge (1895), Heun (1900) and Kutta (1901) matched more terms of the solution’s Taylor series without computing any derivatives of \(f\). They did it by sampling the slope at several points inside each step and combining the samples. Heun’s two-stage method is second order, and Kutta’s classical four-stage method

\[y_{n+1} = y_n + \tfrac{h}{6}(k_1 + 2k_2 + 2k_3 + k_4)\]

is fourth order: halving \(h\) divides the error by 16.

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.integrators import njit, rk4_integrate


@njit
def oscillator(state, t, params):
    return np.array([state[1], -state[0]])


def euler_final(h, n):
    y = np.array([1.0, 0.0])
    for i in range(n):
        y = y + h * oscillator(y, i * h, None)
    return y


def heun_final(h, n):
    y = np.array([1.0, 0.0])
    for i in range(n):
        k1 = oscillator(y, i * h, None)
        k2 = oscillator(y + h * k1, (i + 1) * h, None)
        y = y + 0.5 * h * (k1 + k2)
    return y

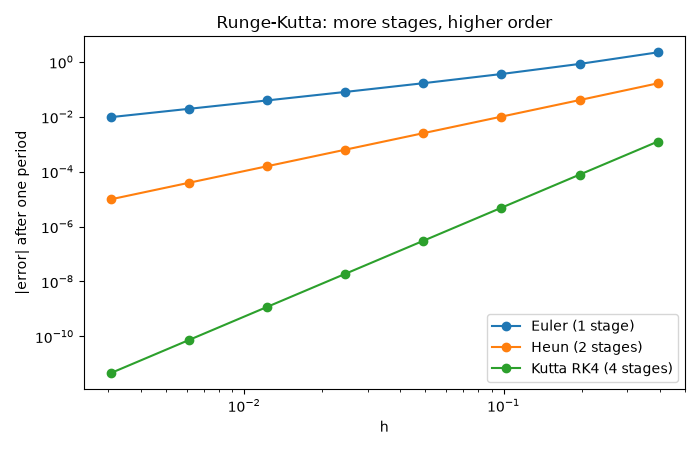

Error at t = 2 pi for the harmonic oscillator

t_end = 2 * np.pi
ns = 2 ** np.arange(4, 12)
hs = t_end / ns
exact = np.array([1.0, 0.0])
errors = {
    "Euler (1 stage)": [np.linalg.norm(euler_final(h, n) - exact) for h, n in zip(hs, ns, strict=False)],
    "Heun (2 stages)": [np.linalg.norm(heun_final(h, n) - exact) for h, n in zip(hs, ns, strict=False)],
    "Kutta RK4 (4 stages)": [
        np.linalg.norm(rk4_integrate(oscillator, np.array([1.0, 0.0]), 0.0, h, n, np.zeros(1))[1][-1] - exact) for h, n in zip(hs, ns, strict=False)
    ],
}

fig, ax = plt.subplots(figsize=(7, 4.5))
for (label, err), order in zip(errors.items(), (1, 2, 4), strict=False):
    ax.loglog(hs, err, "o-", label=label)
    print(f"{label}: error ratio for halved h = {err[-2] / err[-1]:.2f} (expected {2**order})")
ax.set_xlabel("h")
ax.set_ylabel("|error| after one period")
ax.set_title("Runge-Kutta: more stages, higher order")
ax.legend()
fig.tight_layout()

plt.show()

Euler (1 stage): error ratio for halved h = 2.01 (expected 2)
Heun (2 stages): error ratio for halved h = 4.00 (expected 4)
Kutta RK4 (4 stages): error ratio for halved h = 16.00 (expected 16)
