Dantzig’s simplex method: walking the vertices of a production LP

Maximize the profit \(3x + 5y\) from two products subject to \(x + 2y \leq 40\) labor-hours and \(2x + y \leq 30\) units of material. The simplex method starts at the vertex \((0, 0)\) of the feasible polygon and pivots along its edges to an adjacent vertex with a higher profit, until no neighbour improves. The tableau pivots are written out below, and the answer is checked against linear_program().

import matplotlib.pyplot as plt
import numpy as np

from mathematicskit.optimization import linear_program

c = np.array([3.0, 5.0])
a_ub = np.array([[1.0, 2.0], [2.0, 1.0]])
b_ub = np.array([40.0, 30.0])

The simplex tableau, pivot by pivot

Slack variables turn each inequality into an equation, and the slack basis is the starting vertex \((0, 0)\). Dantzig’s rule brings in the variable with the largest reduced profit; the ratio test picks the constraint that becomes tight first, which fixes the next vertex.

m, n = a_ub.shape
tableau = np.zeros((m + 1, n + m + 1))
tableau[:m, :n] = a_ub
tableau[:m, n : n + m] = np.eye(m)
tableau[:m, -1] = b_ub
tableau[-1, :n] = -c
basis = list(range(n, n + m))


def current_vertex():
    x = np.zeros(n + m)
    x[basis] = tableau[:m, -1]
    return x[:n]


vertices = [current_vertex()]
while np.min(tableau[-1, :-1]) < -1e-12:
    col = int(np.argmin(tableau[-1, :-1]))
    positive = tableau[:m, col] > 1e-12
    ratios = np.where(positive, tableau[:m, -1] / np.where(positive, tableau[:m, col], 1.0), np.inf)
    row = int(np.argmin(ratios))
    tableau[row] /= tableau[row, col]
    for r in range(m + 1):
        if r != row:
            tableau[r] -= tableau[r, col] * tableau[row]
    basis[row] = col
    vertices.append(current_vertex())

vertices = np.array(vertices)
for k, v in enumerate(vertices):
    print(f"vertex {k}: (x, y) = ({v[0]:.3f}, {v[1]:.3f}), profit = {c @ v:.3f}")

result = linear_program(-c, a_ub=a_ub, b_ub=b_ub)  # linprog minimizes, so negate
print(f"linear_program optimum: {result.x.round(3)}, profit = {-result.fun:.3f}")

vertex 0: (x, y) = (0.000, 0.000), profit = 0.000
vertex 1: (x, y) = (0.000, 20.000), profit = 100.000
vertex 2: (x, y) = (6.667, 16.667), profit = 103.333
linear_program optimum: [ 6.667 16.667], profit = 103.333

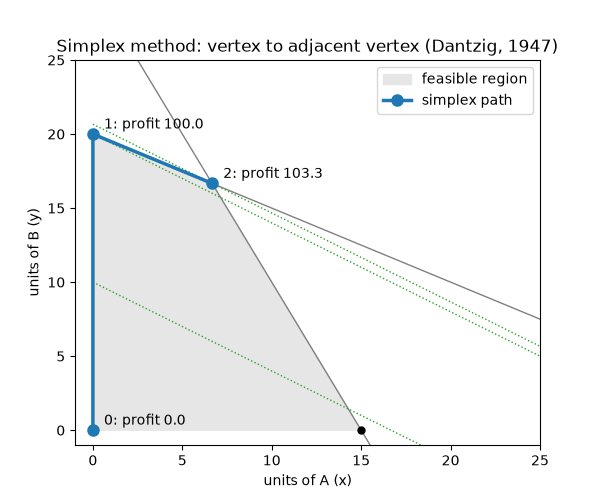

The path along the feasible polygon

polygon = np.array([[0.0, 0.0], [15.0, 0.0], [20.0 / 3.0, 50.0 / 3.0], [0.0, 20.0]])
fig, ax = plt.subplots(figsize=(6, 5))
ax.fill(*polygon.T, color="0.9", label="feasible region")
xs = np.linspace(0.0, 25.0, 2)
ax.plot(xs, (40.0 - xs) / 2.0, color="0.5", lw=1)
ax.plot(xs, 30.0 - 2.0 * xs, color="0.5", lw=1)
for level in (50.0, 100.0, c @ vertices[-1]):
    ax.plot(xs, (level - 3.0 * xs) / 5.0, ":", color="tab:green", lw=1)
ax.plot(*polygon.T, "ko", ms=5)
ax.plot(*vertices.T, "o-", color="tab:blue", lw=2.5, ms=8, label="simplex path")
for k, v in enumerate(vertices):
    ax.annotate(f"{k}: profit {c @ v:.1f}", v, textcoords="offset points", xytext=(8, 4))
ax.set_xlim(-1.0, 25.0)
ax.set_ylim(-1.0, 25.0)
ax.set_xlabel("units of A (x)")
ax.set_ylabel("units of B (y)")
ax.legend(loc="upper right")
ax.set_title("Simplex method: vertex to adjacent vertex (Dantzig, 1947)")

Text(0.5, 1.0, 'Simplex method: vertex to adjacent vertex (Dantzig, 1947)')
