zk-rollups: validity proofs for batched transactions (2018)

A rollup runs transactions off chain but posts them, compressed, to the chain, so anyone can rebuild its state. Barry Whitehat’s roll_up and Buterin’s 2018 proposal added a succinct proof that the posted state root follows from the batch. The contract checks the proof at a fixed cost and never re-executes anything, so the gas per transaction falls toward the cost of its calldata:

\[g(n) = \frac{G_{\text{verify}}}{n} + 16\,b \quad\text{vs.}\quad 21\,000 \text{ for a transfer on chain}.\]

An invalid state root cannot be posted at all, because no proof of it exists, so withdrawals are final as soon as the batch is accepted.

from random import Random

import matplotlib.pyplot as plt

import blockchainkit as bk

A batch of transfers, proven and posted

rng = Random(11)
accounts = [f"user{i}" for i in range(20)]
rollup = bk.channels.ZKRollup({a: 1_000 for a in accounts})
batch = [
    bk.channels.Transfer(rng.choice(accounts), rng.choice(accounts), rng.randint(1, 300))
    for _ in range(200)
]
gas = rollup.submit(batch, rollup.prove(batch))
print(f"200 transfers for {gas:,} gas: {gas / 200:,.0f} per transfer")
assert sum(rollup.balances.values()) == 20 * 1_000

200 transfers for 338,400 gas: 1,692 per transfer

An operator cannot prove a false state

theft = {**rollup.balances, "operator": 5_000}
try:
    rollup.prove(batch, claimed_root=bk.channels.state_root(theft))
except ValueError as error:
    print("operator's claim:", error)

operator's claim: no proof exists for a false state transition

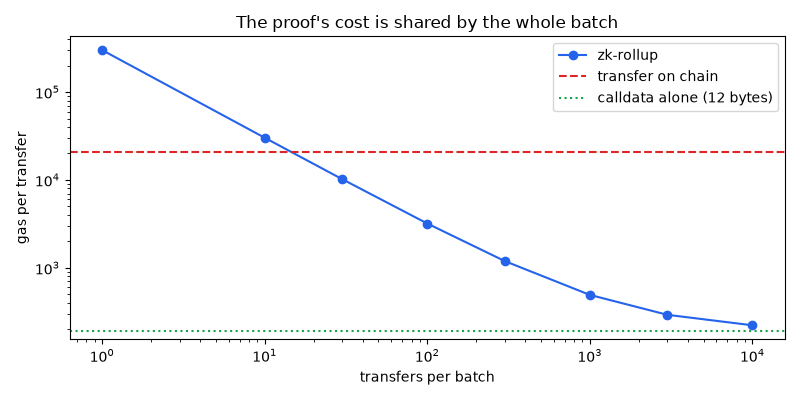

Gas per transaction against batch size

sizes = [1, 10, 30, 100, 300, 1_000, 3_000, 10_000]
per_transfer = [
    bk.channels.batch_gas(n, bytes_per_transaction=12, fixed_gas=300_000) / n for n in sizes
]
break_even = next(n for n, g in zip(sizes, per_transfer, strict=True) if g < 21_000)
print("cheaper than on chain from", break_even, "transfers per batch")
per_block = 30_000_000 // round(per_transfer[-1])
print(f"transfers per 30M-gas block: {30_000_000 // 21_000:,} on chain, {per_block:,} rolled up")

fig, ax = plt.subplots(figsize=(8, 4))
ax.loglog(sizes, per_transfer, "o-", color="#2563eb", label="zk-rollup")
ax.axhline(21_000, color="#dc2626", linestyle="--", label="transfer on chain")
ax.axhline(12 * 16, color="#16a34a", linestyle=":", label="calldata alone (12 bytes)")
ax.set(xlabel="transfers per batch", ylabel="gas per transfer")
ax.set_title("The proof's cost is shared by the whole batch")
ax.legend()
fig.tight_layout()

plt.show()

cheaper than on chain from 30 transfers per batch
transfers per 30M-gas block: 1,428 on chain, 135,135 rolled up

Exercise

A rollup that posts its data elsewhere (a “validium”) pays only for the proof. Recompute the gas per transfer with bytes_per_transaction=0, and explain what users lose if the operator then withholds the data. A worked solution is in Exercises: channels.
