Decker and Wattenhofer’s duplex micropayment channels (2015)

A Spilman channel pays one way and is spent once its capacity has gone to the payee. Decker and Wattenhofer pair two of them, one in each direction, and reset the pair when one side runs dry, re-funding both from the current balances. Without penalties, the newest pair must beat every older one to the chain, and an invalidation tree of relative lock times sees to that: at every level, each replacement lowers the lock time by \(\delta\), so where two branches part, the newer one is valid first and spends the shared parent. A tree of depth d with s lock-time values per level holds s^d resets, and closing waits for up to

\[d\,(s - 1)\,\delta\]

blocks.

from random import Random

import matplotlib.pyplot as plt

import blockchainkit as bk

The newest branch always wins

depth, steps, delta = 2, 4, 6
locks = [
    bk.channels.invalidation_locktimes(s, depth=depth, steps=steps, delta=delta)
    for s in range(steps**depth)
]
print("state 5 lock times:", locks[5], " state 6:", locks[6])
rng = Random(3)
for _ in range(100):
    published = rng.sample(range(steps**depth), 3)
    winner = bk.channels.first_confirmed(published, depth=depth, steps=steps, delta=delta)
    assert winner == max(published)

state 5 lock times: (12, 12)  state 6: (12, 6)

Ping-pong payments until the tree is used up

channel = bk.channels.DuplexChannel(
    ("alice", "bob"), (50, 50), depth=depth, steps=steps, delta=delta
)
payments = 0
try:
    while True:
        channel.pay("alice", 40)
        channel.pay("bob", 40)
        payments += 2
except ValueError as error:
    print(f"after {payments} payments and {channel.resets} resets: {error}")
assert channel.resets == steps**depth - 1

after 32 payments and 15 resets: the invalidation tree is exhausted; close the channel

Capacity against closing delay

More levels give exponentially more resets, but closing waits for the lock times of every level.

shapes = [(d, s) for d in (1, 2, 3, 4) for s in (2, 4, 8, 16)]
for d, s in shapes:
    worst = sum(bk.channels.invalidation_locktimes(0, depth=d, steps=s, delta=delta))
    assert worst == d * (s - 1) * delta

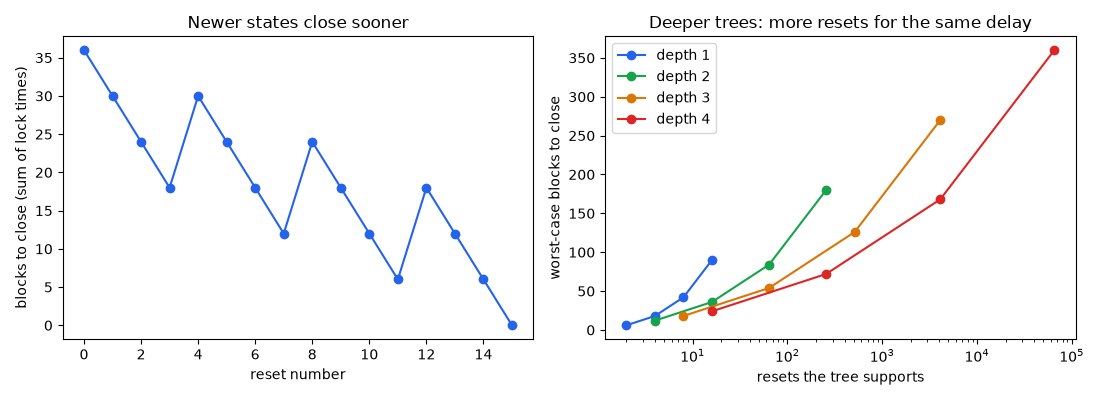

fig, (left, right) = plt.subplots(1, 2, figsize=(11, 4))
left.plot(range(steps**depth), [sum(lock) for lock in locks], "o-", color="#2563eb")
left.set(xlabel="reset number", ylabel="blocks to close (sum of lock times)")
left.set_title("Newer states close sooner")
for d, color in zip((1, 2, 3, 4), ("#2563eb", "#16a34a", "#d97706", "#dc2626"), strict=True):
    points = [(s**d, d * (s - 1) * delta) for dd, s in shapes if dd == d]
    right.plot(*zip(*points, strict=True), "o-", color=color, label=f"depth {d}")
right.set_xscale("log")
right.set(xlabel="resets the tree supports", ylabel="worst-case blocks to close")
right.set_title("Deeper trees: more resets for the same delay")
right.legend()
fig.tight_layout()

plt.show()

Exercise

With delta = 6 blocks, which shape of tree supports a million resets while closing within a day (144 blocks)? Compare with Lightning, whose number of updates is not limited by its delay at all. A worked solution is in Exercises: channels.
