Quadratic arithmetic programs and Pinocchio: a circuit as one divisibility (2013)

Gennaro, Gentry, Parno and Raykova turned a whole circuit into a single polynomial identity. Write the computation as rank-1 constraints \(\langle a_j, z\rangle \cdot \langle b_j, z\rangle = \langle c_j, z\rangle\), put constraint \(j\) at the point \(\omega^j\), and interpolate each column into polynomials \(A_i, B_i, C_i\). Then all the constraints hold exactly when

\[A(X) B(X) - C(X) = H(X) \, t(X), \qquad t(X) = X^n - 1,\]

with \(A = \sum z_i A_i\) and so on. Pinocchio (Parno, Howell, Gentry and Raykova) checked this at one hidden random point with pairings, and was the first SNARK fast enough to use; Zcash’s first version ran on its descendants.

The statement here is Vitalik Buterin’s classic: I know \(x\) with \(x^3 + x + 5 = 35\).

import matplotlib.pyplot as plt

import blockchainkit as bk

The circuit and its R1CS

def cubic(x):
    circuit = bk.proofs.Circuit()
    out = circuit.public(35)
    secret = circuit.private(x)
    circuit.assert_equal(circuit.mul(circuit.mul(secret, secret), secret) + secret + 5, out)
    return circuit


circuit = cubic(3)
r1cs = circuit.r1cs()
print("witness (1, out, x, x^2, x^3):", circuit.witness())
print("constraints:", r1cs.num_constraints)
assert r1cs.is_satisfied(circuit.witness())

witness (1, out, x, x^2, x^3): (1, 35, 3, 9, 27)
constraints: 5

The QAP: divisible for the right witness only

qap = bk.proofs.r1cs_to_qap(r1cs)
good = bk.proofs.qap_divide(qap, circuit.witness())
bad = bk.proofs.qap_divide(qap, (1, 35, 4, 16, 64))  # x = 4 satisfies the gates, not the output.
print("remainder for x = 3:", good.remainder, "| for x = 4:", bad.remainder[:3], "...")
assert good.satisfied and not bad.satisfied

remainder for x = 3: () | for x = 4: (503316485, 1353091688, 1509949436) ...

Pinocchio’s idea: test the identity at one random point

r = 1234567
P = bk.proofs.FIELD_PRIME
lhs = (
    bk.proofs.poly_eval(good.left, r) * bk.proofs.poly_eval(good.right, r)
    - bk.proofs.poly_eval(good.output, r)
) % P
rhs = bk.proofs.poly_eval(good.quotient, r) * bk.proofs.poly_eval(qap.target, r) % P
assert lhs == rhs

points = bk.proofs.domain(qap.domain_size)
fig, ax = plt.subplots(figsize=(8, 4.5))
for division, label, color, offset in (
    (good, "x = 3", "#2563eb", -0.15),
    (bad, "x = 4", "#dc2626", 0.15),
):
    residual = [
        (
            bk.proofs.poly_eval(division.left, w) * bk.proofs.poly_eval(division.right, w)
            - bk.proofs.poly_eval(division.output, w)
        )
        % P
        != 0
        for w in points
    ]
    ax.bar([j + offset for j in range(len(points))], residual, width=0.3, color=color, label=label)
ax.set_xticks(range(len(points)), [f"w^{j}" for j in range(len(points))])
ax.set(xlabel="domain point (one per constraint)", ylabel="A B - C is nonzero")

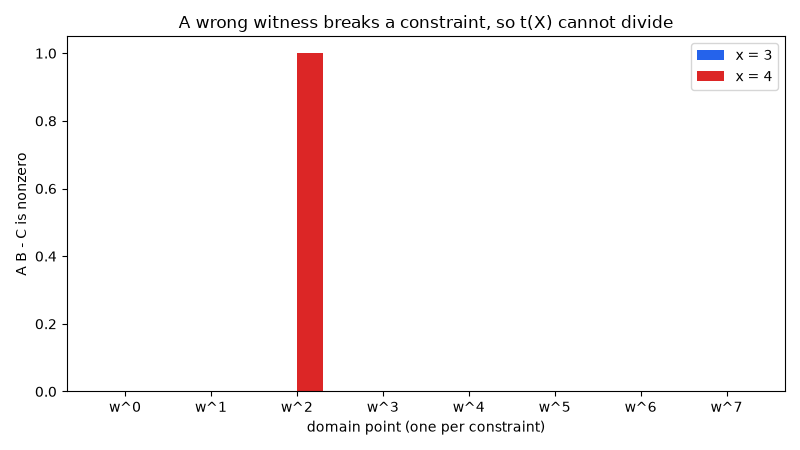

ax.set_title("A wrong witness breaks a constraint, so t(X) cannot divide")
ax.legend()
fig.tight_layout()

plt.show()

Exercise

How many multiplication constraints does x**16 need with repeated squaring, and how many with repeated multiplication by x? Build both circuits and compare their QAP domain sizes. A worked solution is in Exercises: proof systems.
