Verhoeff’s check digit and detecting transpositions (1969)

Jacobus Verhoeff studied the errors Dutch clerks made when copying numbers: most were one wrong digit, and most of the rest were two neighbouring digits swapped. A check digit chosen so that the digit sum is a multiple of 10 catches every wrong digit but no swap, since addition commutes. Luhn’s scheme, used on payment cards, catches every swap but 09 and 90. Verhoeff catches all of them by computing in the dihedral group D5, where \(a * b \ne b * a\), and permuting each digit by its position:

\[\sigma^{0}(a_0) * \sigma^{1}(a_1) * \cdots * \sigma^{k}(a_k) = 0 .\]

Base58Check and Bech32 addresses do the same job, at the scale of a whole string.

import matplotlib.pyplot as plt

import blockchainkit as bk
from blockchainkit.wallets.visualizers import plot_detection_rates

Check digits on one number

number = "236"
for scheme in ("sum", "luhn", "verhoeff"):
    digit, valid = bk.wallets.CHECK_SCHEMES[scheme]
    word = number + digit(number)
    swapped = word[1] + word[0] + word[2:]
    print(f"{scheme:9} {word}  swap {swapped} caught: {not valid(swapped)}")
assert bk.wallets.verhoeff_valid("2363") and not bk.wallets.verhoeff_valid("3263")

sum       2369  swap 3269 caught: False
luhn      2360  swap 3260 caught: True
verhoeff  2363  swap 3263 caught: True

Luhn’s blind spot

print("Luhn digit of 09 and 90:", bk.wallets.luhn_digit("09"), bk.wallets.luhn_digit("90"))
print(
    "Verhoeff digit of 09 and 90:", bk.wallets.verhoeff_digit("09"), bk.wallets.verhoeff_digit("90")
)
assert bk.wallets.luhn_digit("09") == bk.wallets.luhn_digit("90")

Luhn digit of 09 and 90: 1 1
Verhoeff digit of 09 and 90: 9 2

Every error on every three-digit number

rates = [bk.wallets.detection_rates(s, 3) for s in ("sum", "luhn", "verhoeff")]
for r in rates:
    print(f"{r.scheme:9} single errors {r.single_errors:.1%}, swaps {r.transpositions:.1%}")
assert rates[2].single_errors == rates[2].transpositions == 1.0

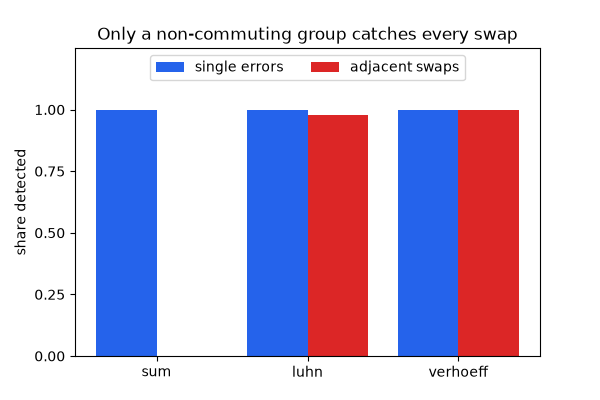

ax = plot_detection_rates(rates)
ax.set_title("Only a non-commuting group catches every swap")
plt.show()

sum       single errors 100.0%, swaps 0.0%
luhn      single errors 100.0%, swaps 97.8%
verhoeff  single errors 100.0%, swaps 100.0%

Exercise

Which pairs of different digits ab can Luhn’s scheme not tell from ba? A worked solution is in Exercises: wallets.
