A Fistful of Bitcoins: clustering addresses by owner (2013)

Meiklejohn, Pomarole, Jordan, Levchenko, McCoy, Voelker and Savage showed that fresh addresses hide much less than they seem. Two heuristics group addresses that one user controls:

• the inputs of one transaction share an owner, who signed them all;

• a transaction’s change goes to a fresh address: if exactly one output address has never been seen before, it is the sender’s.

Each heuristic adds edges to a graph of addresses, and the clusters are its connected components (found with union-find). Buying a few things from a service then names its whole cluster.

import matplotlib.pyplot as plt

import blockchainkit as bk
from blockchainkit.privacy.visualizers import plot_cluster_sizes

A toy economy with known owners

Payees reuse a receiving address 90% of the time, as shops do.

history = bk.privacy.simulate_payments(150, 1_500, reuse=0.9, seed=13)
print(f"{len(history.transactions)} transactions, {len(history.owners)} addresses, 150 users")
inputs_only = bk.privacy.cluster_addresses(history.transactions)
with_change = bk.privacy.cluster_addresses(history.transactions, change=True)
for name, clusters in (("inputs only", inputs_only), ("with change", with_change)):
    score = bk.privacy.score_clusters(clusters, history.owners)
    print(
        f"{name:12}: {score.clusters} clusters, {score.identified} users identified, "
        f"{score.false_merges} false merges"
    )
assert len(with_change) < len(inputs_only)

1648 transactions, 1871 addresses, 150 users
inputs only : 1322 clusters, 0 users identified, 0 false merges
with change : 316 clusters, 49 users identified, 0 false merges

When payees never reuse addresses

Two fresh outputs make the change ambiguous, and the heuristic abstains.

careful = bk.privacy.simulate_payments(150, 1_500, reuse=0.0, seed=13)
careful_clusters = bk.privacy.cluster_addresses(careful.transactions, change=True)
print("no reuse:", bk.privacy.score_clusters(careful_clusters, careful.owners))

fig, ax = plt.subplots(figsize=(6, 4))
plot_cluster_sizes(inputs_only, ax=ax, label="inputs only")
plot_cluster_sizes(with_change, ax=ax, label="inputs and change")

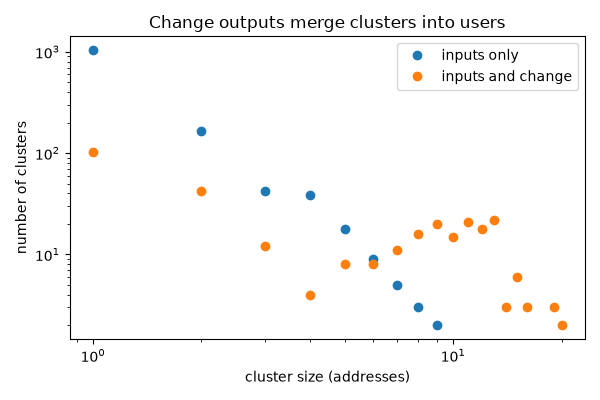

ax.set_title("Change outputs merge clusters into users")
fig.tight_layout()

plt.show()

no reuse: ClusterScore(addresses=3239, users=150, clusters=2614, false_merges=0, identified=0, largest=6)

Exercise

A user always spends exactly one coin per payment. Which heuristic still links that user’s addresses, and when does it abstain? A worked solution is in Exercises: privacy.
