Trusted-setup ceremonies: Zcash’s parameters and the powers of tau (2016)

Pairing-based SNARKs need \([\tau^i]G\) for a \(\tau\) that nobody knows: whoever knows it can prove false statements. In October 2016 six Zcash participants generated its parameters by multi-party computation, so that the secret stayed unknown unless all of them colluded. Later “powers of tau” ceremonies scaled this to thousands of participants. Each one multiplies the current string by a secret \(s\) and destroys it:

\[[\tau^i]G \;\mapsto\; [(\tau s)^i]G,\]

and publishes \([s]G\), so that anyone can check with pairings that the update is honest and builds on the previous string. One honest participant is enough.

import matplotlib.pyplot as plt

import blockchainkit as bk

Five participants, each checked by everyone

secrets = [1789, 31337, 271828, 141421, 577215]
string = bk.proofs.start_ceremony(16)
checks = []
for s in secrets:
    step = bk.proofs.contribute(string, s)
    checks.append(bk.proofs.verify_contribution(string, step))
    string = step.srs
tau = 1
for s in secrets:
    tau = tau * s % bk.proofs.FIELD_PRIME
assert all(checks) and string == bk.proofs.trusted_setup(16, tau)
print("every contribution verified; tau is the product of five secrets")

every contribution verified; tau is the product of five secrets

A participant who ignores the previous string is caught

Mallory publishes a fresh string from a tau she knows, discarding the others’ contributions.

fresh = bk.proofs.contribute(bk.proofs.start_ceremony(16), 42)
caught = not bk.proofs.verify_contribution(string, fresh)
assert caught

Why tau must be destroyed

f = [5, 0, 1]
commitment = bk.proofs.kzg_commit(f, string)
forged = bk.proofs.forge_opening(commitment, point=3, value=1_000_000, secret=tau, srs=string)
assert bk.proofs.kzg_verify(commitment, forged, string)  # f(3) is 14, yet "1,000,000" verifies.
print("with tau, the commitment to 5 + x**2 opens to", forged.value, "at x = 3")

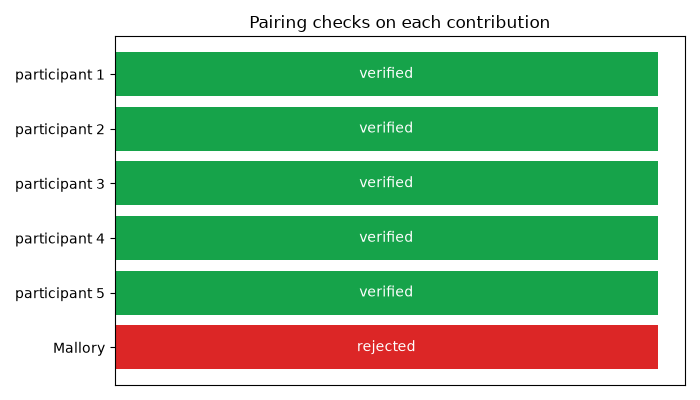

fig, ax = plt.subplots(figsize=(7, 4))
names = [f"participant {i + 1}" for i in range(len(secrets))] + ["Mallory"]
results = checks + [not caught]
ax.barh(names, [1] * len(names), color=["#16a34a" if ok else "#dc2626" for ok in results])
for i, ok in enumerate(results):
    ax.text(0.5, i, "verified" if ok else "rejected", ha="center", va="center", color="white")
ax.set_xticks([])
ax.invert_yaxis()
ax.set_title("Pairing checks on each contribution")
fig.tight_layout()

plt.show()

with tau, the commitment to 5 + x**2 opens to 1000000 at x = 3

Exercise

The toy group has order about 2**31, so tau can be recovered from [tau]G by baby-step giant-step in about 2**16 steps. Write that search on the pairing curve and recover the ceremony’s tau from string.powers[1].
