Bech32m and the insertion flaw in Bech32 (BIP350, 2020)

In 2019 it was found that Bech32 has a blind spot: when a string ends in p, inserting or deleting q characters just before that p leaves the checksum valid. q is the value 0, and p is 1, the constant the checksum must leave, so the extra zeros multiply the polynomial by powers of x without changing its remainder. Witness version 0 survives, because its programs must be 20 or 32 bytes, but Taproot’s version 1 and later allow other lengths. Pieter Wuille’s Bech32m changes only the constant,

\[\mathrm{polymod}(\dots) = \texttt{0x2bc830a3},\]

and is required from witness version 1 on.

import matplotlib.pyplot as plt

import blockchainkit as bk

A string ending in p

def ending_in_p(encoding):
    for n in range(1_000):
        data = [n % 32, n // 32 % 32, 7, 3, 1]
        text = bk.wallets.bech32_encode("bc", data, encoding)
        if text.endswith("p"):
            return text
    raise ValueError("no string found")


def accepts(text):
    try:
        bk.wallets.bech32_decode(text)
    except ValueError:
        return False
    return True


original = ending_in_p("bech32")
print("original:", original)
inserted = {}
for encoding in ("bech32", "bech32m"):
    text = ending_in_p(encoding)
    inserted[encoding] = [accepts(text[:-1] + "q" * k + "p") for k in range(1, 9)]
    print(f"{encoding:8} with 1..8 q's inserted:", inserted[encoding])
assert all(inserted["bech32"]) and not any(inserted["bech32m"])

original: bc1sq8rpprd0lp
bech32   with 1..8 q's inserted: [True, True, True, True, True, True, True, True]
bech32m  with 1..8 q's inserted: [False, False, False, False, False, False, False, False]

Why version 0 was safe

program = bytes(20)
v0 = bk.wallets.segwit_encode("bc", 0, program)
assert bk.wallets.segwit_decode("bc", v0).program == program
taproot = bk.wallets.segwit_encode("bc", 1, bytes(32))
print("version 0:", v0)
print("version 1:", taproot, bk.wallets.bech32_decode(taproot).encoding)

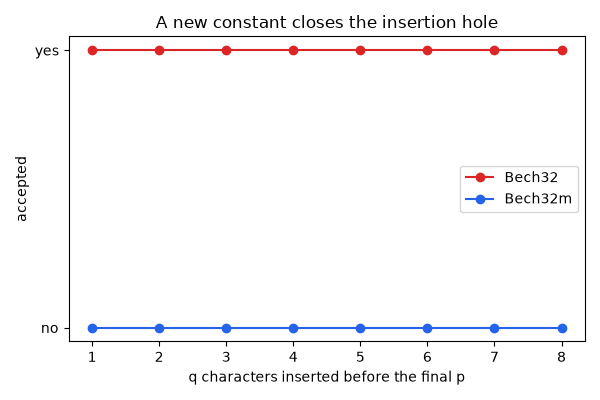

fig, ax = plt.subplots(figsize=(6, 4))
k = list(range(1, 9))
ax.plot(k, inserted["bech32"], "o-", color="#dc2626", label="Bech32")
ax.plot(k, inserted["bech32m"], "o-", color="#2563eb", label="Bech32m")
ax.set(
    xlabel="q characters inserted before the final p",
    ylabel="accepted",
    yticks=[0, 1],
    yticklabels=["no", "yes"],
)
ax.set_title("A new constant closes the insertion hole")
ax.legend()
fig.tight_layout()
plt.show()

version 0: bc1qqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq9e75rs
version 1: bc1pqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqqpqqenm bech32m

Exercise

Does deleting a q before a final p fool Bech32 too? Find a string ending in qp and try. A worked solution is in Exercises: wallets.
