Mendeleev’s periodic table: periodicity and the atomic-weight inversions

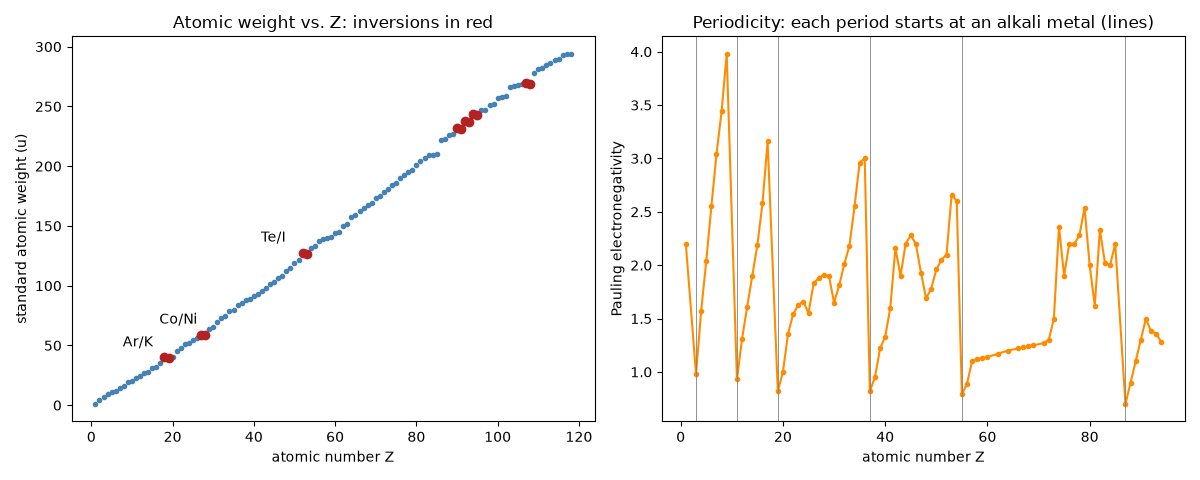

Mendeleev ordered the elements by atomic weight but let chemical behavior overrule the order where the two disagreed. Most famously he placed tellurium (127.6) before iodine (126.9) so that iodine fell with the halogens. Moseley later showed that the true ordering quantity is the atomic number \(Z\). Left: the standard atomic weights of all 118 elements in chemistrykit.periodic_table.PERIODIC_TABLE against \(Z\). The points where weight decreases as \(Z\) increases are exactly the “inversions” an atomic-weight ordering gets wrong. Ar/K, Co/Ni and Te/I are the chemically real ones; those past uranium reflect only the convention of listing the longest-lived isotope’s mass number for elements with no stable isotope. Right: the periodicity itself, Pauling electronegativity rising across each period and collapsing at each alkali metal.

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.periodic_table import PAULING_ELECTRONEGATIVITY, PERIODIC_TABLE_BY_NUMBER, molar_mass

Z = np.arange(1, 119)
mass = np.array([PERIODIC_TABLE_BY_NUMBER[z].atomic_mass for z in Z])
inversions = [z for z in Z[:-1] if mass[z] < mass[z - 1]]

fig, axes = plt.subplots(1, 2, figsize=(12, 4.8))
axes[0].plot(Z, mass, ".", color="steelblue")
for z in inversions:
    a, b = PERIODIC_TABLE_BY_NUMBER[z], PERIODIC_TABLE_BY_NUMBER[z + 1]
    axes[0].plot([z, z + 1], [a.atomic_mass, b.atomic_mass], "o-", color="firebrick")
    if z < 90:  # past U the "weights" are isotope mass numbers
        axes[0].annotate(f"{a.symbol}/{b.symbol}", (z, a.atomic_mass), textcoords="offset points", xytext=(-30, 8))
axes[0].set_xlabel("atomic number Z")
axes[0].set_ylabel("standard atomic weight (u)")
axes[0].set_title("Atomic weight vs. Z: inversions in red")

en = [(z, PAULING_ELECTRONEGATIVITY[PERIODIC_TABLE_BY_NUMBER[z].symbol]) for z in Z if PERIODIC_TABLE_BY_NUMBER[z].symbol in PAULING_ELECTRONEGATIVITY]
zs, chis = np.array(en).T
axes[1].plot(zs, chis, "o-", color="darkorange", markersize=3)
for alkali in (3, 11, 19, 37, 55, 87):
    axes[1].axvline(alkali, color="gray", linewidth=0.6)
axes[1].set_xlabel("atomic number Z")
axes[1].set_ylabel("Pauling electronegativity")
axes[1].set_title("Periodicity: each period starts at an alkali metal (lines)")
fig.tight_layout()

print("inversions:", ", ".join(f"{PERIODIC_TABLE_BY_NUMBER[z].symbol}/{PERIODIC_TABLE_BY_NUMBER[z + 1].symbol}" for z in inversions))

inversions: Ar/K, Co/Ni, Te/I, Th/Pa, U/Np, Pu/Am, Bh/Hs

With the full table, molar masses of heavy-element compounds come straight from their formulas:

for f in ("UF6", "K2[PtCl6]", "HgCl2", "Gd2O3", "Pb(NO3)2"):
    print(f"{f:10s} {molar_mass(f):8.2f} g/mol")

plt.show()

UF6          352.02 g/mol
K2[PtCl6]    485.98 g/mol
HgCl2        271.49 g/mol
Gd2O3        362.50 g/mol
Pb(NO3)2     331.21 g/mol
