Werner’s coordination theory: counting isomers to prove the octahedron

In 1893 Alfred Werner proposed that a six-coordinate metal complex places its ligands at the corners of an octahedron. No experiment could see the shape directly, so he argued from isomer counts. A complex \(\mathrm{MA_4B_2}\) such as \([\mathrm{Co(NH_3)_4Cl_2}]^+\) has only two forms (green trans “praseo” and violet cis “violeo”). An octahedron gives exactly two ways to place the two B ligands; a flat hexagon or a trigonal prism gives three. For \(\mathrm{MA_3B_3}\) the octahedron again gives two (fac and mer).

This example counts those isomers by brute force. For each candidate shape it finds every permutation of the six vertices that a rotation or reflection of the shape can produce, then counts the distinct ways to place the B ligands up to those symmetry operations. Mirror images are counted as one here, because Werner compared these geometric isomers. Finally it builds the octahedral complex and checks that it has \(O_h\) symmetry.

import itertools

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.structure.core.base_system import Molecule
from chemistrykit.structure.systems.point_group import determine_point_group
from chemistrykit.structure.systems.vsepr import domain_positions
from chemistrykit.structure.visualizers.structure_plots import plot_molecule_3d

hexagon = np.array([[np.cos(a), np.sin(a), 0.0] for a in np.radians(np.arange(0, 360, 60))])
prism = np.array([[np.cos(a), np.sin(a), z] for z in (0.8, -0.8) for a in np.radians([90, 210, 330])])
shapes = {
    "octahedron (Werner)": domain_positions(6),
    "hexagonal plane": hexagon,
    "trigonal prism": prism,
}


def symmetry_permutations(vertices, tol=1e-6):
    """Vertex permutations that an orthogonal transform (rotation or reflection) of the shape achieves."""
    x = vertices - vertices.mean(axis=0)
    perms = []
    for perm in itertools.permutations(range(len(x))):
        y = x[list(perm)]
        # Best orthogonal map x -> y (orthogonal Procrustes); exact symmetries map with zero residual.
        u, _, vt = np.linalg.svd(y.T @ x)
        q = u @ vt
        if np.allclose(x @ q.T, y, atol=tol):
            perms.append(perm)
    return perms


def count_isomers(vertices, n_b):
    """Number of distinct placements of n_b B ligands on the vertices, up to symmetry."""
    perms = symmetry_permutations(vertices)
    seen, n_classes = set(), 0
    for combo in itertools.combinations(range(len(vertices)), n_b):
        key = frozenset(combo)
        if key in seen:
            continue
        n_classes += 1
        for perm in perms:
            seen.add(frozenset(perm[i] for i in combo))
    return n_classes


counts = {name: (count_isomers(v, 2), count_isomers(v, 3)) for name, v in shapes.items()}
for name, (n_ma4b2, n_ma3b3) in counts.items():
    print(f"{name:20s}: MA4B2 -> {n_ma4b2} isomers, MA3B3 -> {n_ma3b3} isomers")
print("observed for cobalt(III) ammines: 2 and 2 -> only the octahedron fits")
assert counts["octahedron (Werner)"] == (2, 2)

octahedron (Werner) : MA4B2 -> 2 isomers, MA3B3 -> 2 isomers
hexagonal plane     : MA4B2 -> 3 isomers, MA3B3 -> 3 isomers
trigonal prism      : MA4B2 -> 3 isomers, MA3B3 -> 3 isomers
observed for cobalt(III) ammines: 2 and 2 -> only the octahedron fits

The octahedral complex itself: an \(\mathrm{MA_6}\) ion such as \([\mathrm{Co(NH_3)_6}]^{3+}\) (ligands drawn as single atoms). Its symmetry elements add up to \(O_h\), including the four three-fold axes through opposite faces.

bond_length = 1.97  # angstrom, typical Co-N distance
ligands = domain_positions(6) * bond_length
complex_ion = Molecule(symbols=["Co"] + ["N"] * 6, coordinates=np.vstack([[0.0, 0.0, 0.0], ligands]), bonds=[(0, i) for i in range(1, 7)])
result = determine_point_group(complex_ion)
print(f"\nMA6 point group: {result.group_name}, C3 axes found: {result.n_c3_axes}, inversion centre: {result.has_inversion_center}")
assert result.group_name == "Oh"

MA6 point group: Oh, C3 axes found: 4, inversion centre: True

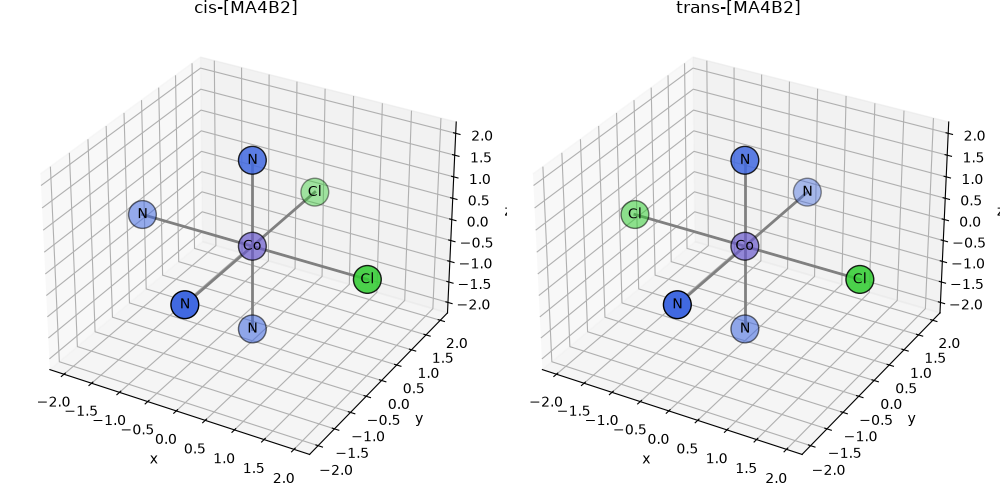

Draw the two MA4B2 isomers Werner separated, cis and trans:

first = int(np.argmax(ligands[:, 0]))  # ligand on +x
partners = {"cis-[MA4B2]": int(np.argmax(ligands[:, 1])), "trans-[MA4B2]": int(np.argmin(ligands[:, 0]))}

fig = plt.figure(figsize=(10, 5))
for k, (label, partner) in enumerate(partners.items(), start=1):
    symbols = ["Co"] + ["Cl" if i in (first, partner) else "N" for i in range(6)]
    mol = Molecule(symbols=symbols, coordinates=complex_ion.coordinates, bonds=complex_ion.bonds)
    ax = fig.add_subplot(1, 2, k, projection="3d")
    plot_molecule_3d(mol, ax=ax)
    ax.set_title(label)
fig.tight_layout()
plt.show()
