Evjen’s method: converging the NaCl Madelung constant

The NaCl Madelung-constant lattice sum is only conditionally convergent: a naive truncated sum over a growing cube of ions does not settle down as the cutoff grows, it oscillates. madelung_constant_nacl() uses Evjen’s method (fractional boundary-charge weighting) to build a genuinely converging summation instead, and this example demonstrates both behaviors side by side against the literature value.

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.crystal.systems.madelung import MADELUNG_CONSTANT_NACL_LITERATURE, madelung_constant_nacl
from chemistrykit.crystal.visualizers.crystal_plots import plot_madelung_convergence


def naive_truncated_sum(n_shells: int) -> float:
    """A naive (unweighted) truncated lattice sum -- does NOT converge properly."""
    total = 0.0
    for i in range(-n_shells, n_shells + 1):
        for j in range(-n_shells, n_shells + 1):
            for k in range(-n_shells, n_shells + 1):
                if i == 0 and j == 0 and k == 0:
                    continue
                total += (-1) ** (i + j + k) / np.sqrt(i * i + j * j + k * k)
    return -total


n_shells = list(range(2, 16))
evjen_values = [madelung_constant_nacl(n) for n in n_shells]
naive_values = [naive_truncated_sum(n) for n in n_shells]

print(f"Literature value: {MADELUNG_CONSTANT_NACL_LITERATURE}")
print(f"\n{'n_shells':>8s}  {'Evjen (converges)':>18s}  {'naive (oscillates)':>18s}")
for n, e, nv in zip(n_shells, evjen_values, naive_values, strict=True):
    print(f"{n:8d}  {e:18.6f}  {nv:18.6f}")

Literature value: 1.747565

n_shells   Evjen (converges)  naive (oscillates)
       2            1.751769            1.516646
       3            1.747042            1.912504
       4            1.747721            1.619270
       5            1.747501            1.852535
       6            1.747596            1.658742
       7            1.747548            1.824544
       8            1.747574            1.679641
       9            1.747558            1.808338
      10            1.747569            1.692579
      11            1.747562            1.797769
      12            1.747567            1.701377
      13            1.747563            1.790331
      14            1.747566            1.707747
      15            1.747564            1.784813

The Evjen-weighted sum settles to within 1e-4 of the literature value well before the naive sum’s oscillation amplitude has shrunk at all:

print(f"\nEvjen std (n=10..15): {np.std(evjen_values[-6:]):.2e}")
print(f"Naive std (n=10..15): {np.std(naive_values[-6:]):.2e}")

Evjen std (n=10..15): 2.25e-06
Naive std (n=10..15): 4.56e-02

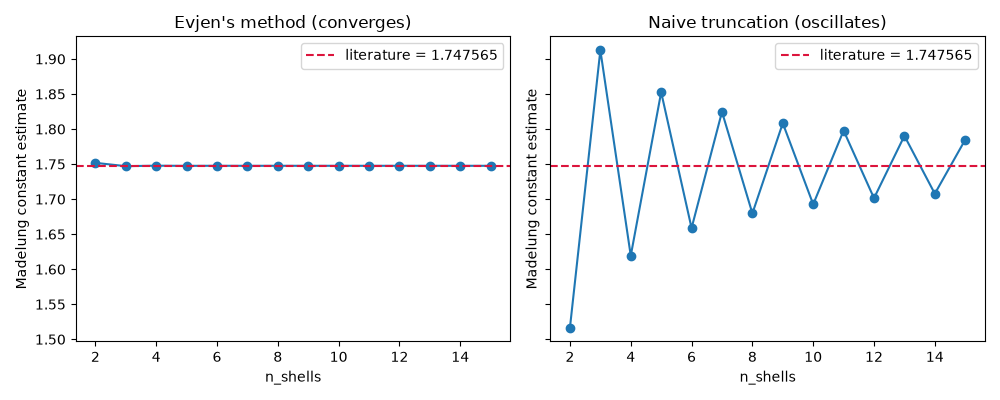

fig, axes = plt.subplots(1, 2, figsize=(10, 4), sharey=True)
plot_madelung_convergence(n_shells, evjen_values, literature_value=MADELUNG_CONSTANT_NACL_LITERATURE, ax=axes[0])
axes[0].set_title("Evjen's method (converges)")
plot_madelung_convergence(n_shells, naive_values, literature_value=MADELUNG_CONSTANT_NACL_LITERATURE, ax=axes[1])
axes[1].set_title("Naive truncation (oscillates)")
plt.tight_layout()
plt.show()
