Madelung’s lattice sum: the electrostatic energy of rock salt

Madelung (1918) asked for the electrostatic energy of one ion in the field of every other ion of an infinite crystal. For rock salt it is \(U=-Me^2/(4\pi\varepsilon_0r_0)\) per ion pair, with the Madelung constant \(M=\sum_j \pm r_0/r_j\) summed shell by shell: 6 opposite charges at \(r_0\), 12 like charges at \(\sqrt2r_0\), 8 opposite charges at \(\sqrt3r_0\), and so on. madelung_constant_nacl() returns the converged value.

from collections import defaultdict

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.constants import ELEMENTARY_CHARGE, NA, VACUUM_PERMITTIVITY
from chemistrykit.crystal.systems.madelung import madelung_constant_nacl

# Group the ions around a central Na+ into coordination shells (r in units of r0).
shells = defaultdict(lambda: [0, 0])
n = 4
for i in range(-n, n + 1):
    for j in range(-n, n + 1):
        for k in range(-n, n + 1):
            r2 = i * i + j * j + k * k
            if 0 < r2 <= 12:
                shells[r2][0] += 1
                shells[r2][1] = 1 if (i + j + k) % 2 else -1  # +1 attractive (opposite charge)

print(f"{'shell':>5s} {'r/r0':>7s} {'ions':>5s} {'charge':>8s} {'term':>9s}")
r_values, terms = [], []
for r2 in sorted(shells):
    count, sign = shells[r2]
    term = sign * count / np.sqrt(r2)
    r_values.append(np.sqrt(r2))
    terms.append(term)
    print(f"{len(terms):5d} {np.sqrt(r2):7.3f} {count:5d} {'opposite' if sign > 0 else 'like':>8s} {term:+9.4f}")

shell    r/r0  ions   charge      term
    1   1.000     6 opposite   +6.0000
    2   1.414    12     like   -8.4853
    3   1.732     8 opposite   +4.6188
    4   2.000     6     like   -3.0000
    5   2.236    24 opposite  +10.7331
    6   2.449    24     like   -9.7980
    7   2.828    12     like   -4.2426
    8   3.000    30 opposite  +10.0000
    9   3.162    24     like   -7.5895
   10   3.317    24 opposite   +7.2363
   11   3.464     8     like   -2.3094

The shell terms are large and alternate in sign; only the full lattice sum gives Madelung’s constant, and with it the Coulomb energy of the crystal:

M = madelung_constant_nacl()
r0 = 282e-12
U_pair = -M * ELEMENTARY_CHARGE**2 / (4.0 * np.pi * VACUUM_PERMITTIVITY * r0)
print(f"\nMadelung constant of NaCl: M = {M:.4f}")
print(f"Electrostatic energy per ion pair: {U_pair / ELEMENTARY_CHARGE:.2f} eV")
print(f"                          per mole: {U_pair * NA / 1000.0:.0f} kJ/mol")
print(f"(an isolated Na+Cl- pair at the same distance: {-1.0 * ELEMENTARY_CHARGE / (4.0 * np.pi * VACUUM_PERMITTIVITY * r0):.2f} eV)")
assert 1.74 < M < 1.75

Madelung constant of NaCl: M = 1.7476
Electrostatic energy per ion pair: -8.92 eV
                          per mole: -861 kJ/mol
(an isolated Na+Cl- pair at the same distance: -5.11 eV)

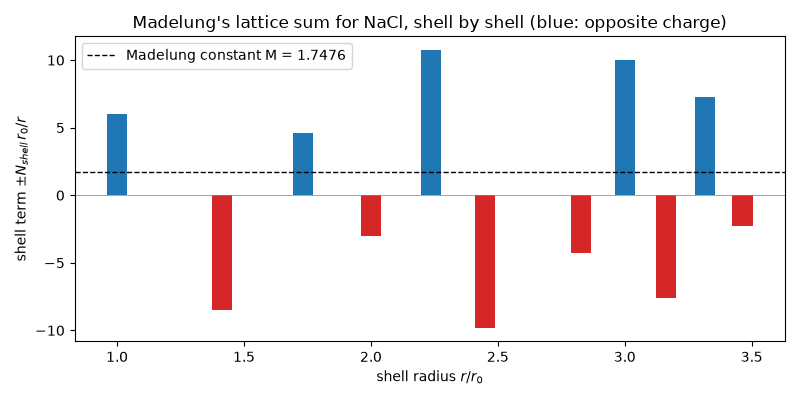

fig, ax = plt.subplots(figsize=(8, 4))
colors = ["C0" if t > 0 else "C3" for t in terms]
ax.bar(r_values, terms, width=0.08, color=colors)
ax.axhline(M, color="k", ls="--", lw=1, label=f"Madelung constant M = {M:.4f}")
ax.axhline(0, color="gray", lw=0.5)
ax.set_xlabel(r"shell radius $r/r_0$")
ax.set_ylabel(r"shell term $\pm N_{shell}\,r_0/r$")
ax.set_title("Madelung's lattice sum for NaCl, shell by shell (blue: opposite charge)")
ax.legend()
plt.tight_layout()
plt.show()
