Alder and Wainwright’s hard spheres: packing-driven order with no attraction

Alder and Wainwright’s 1957 computer experiments showed that particles with no attraction at all – hard spheres – order into a crystal-like arrangement once they are packed densely enough: freezing driven by excluded volume (entropy), not by energy. This package integrates smooth forces rather than hard-sphere collision events, so the hard spheres are approximated by steeply repulsive particles: the Lennard-Jones potential cut off at its own minimum \(r=2^{1/6}\sigma\) (r_min) and shifted, which leaves only a repulsive wall. Comparing the radial distribution function g(r) of this purely repulsive LJFluid at low density and at a density near hard-sphere freezing shows sharp positional order appearing from packing alone.

import matplotlib.pyplot as plt

from chemistrykit.md.systems.lj_fluid import LennardJones, LJFluid
from chemistrykit.md.systems.thermostats import VelocityRescalingThermostat
from chemistrykit.md.visualizers.md_plots import plot_radial_distribution_function

r_wca_cutoff = LennardJones().r_min  # 2**(1/6) sigma: purely repulsive, hard-sphere-like
T_target = 1.0
dt, n_steps = 0.003, 4000

fig, ax = plt.subplots(figsize=(7, 5))
peak_heights = {}
for density, color in [(0.30, "steelblue"), (1.05, "darkorange")]:
    fluid = LJFluid.from_lattice(
        n_per_side=6,
        density=density,
        temperature=T_target,
        cutoff=r_wca_cutoff,
        rng=0,
        skin=0.3,
        rebuild_every=10,
    )
    thermostat = VelocityRescalingThermostat(target_temperature=T_target, interval=5)
    fluid.run(dt=dt, n_steps=n_steps, thermostat=thermostat, sample_every=200)
    r, g = fluid.radial_distribution_function(n_bins=120)
    plot_radial_distribution_function(r, g, ax=ax, color=color, label=f"density = {density}")
    peak_heights[density] = float(g.max())

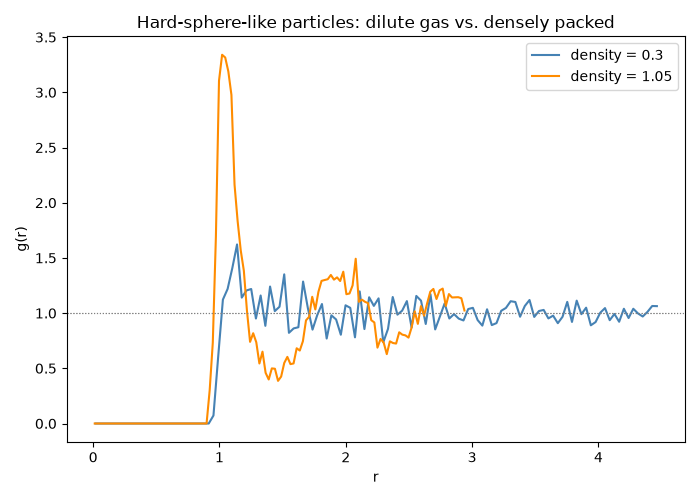

ax.set_title("Hard-sphere-like particles: dilute gas vs. densely packed")
ax.legend()
fig.tight_layout()

The dilute configuration’s g(r) is essentially featureless beyond the repulsive core – close to the flat g(r)=1 of an ideal gas, since particles rarely encounter one another. At more than three times the density, with exactly the same purely repulsive potential (no attractive term added), the first-neighbor peak becomes far taller and sharper: particles are packed closely enough that excluded volume alone forces pronounced local order, exactly the entropic (packing-driven) ordering mechanism Alder and Wainwright found in hard-sphere computer experiments – reproducing it here only qualitatively, since a convincing first-order fluid-solid transition needs a much larger system and a much longer run than this short pedagogical example:

for density, height in peak_heights.items():
    print(f"density = {density}: g(r) first-peak height = {height:.2f}")

plt.show()

density = 0.3: g(r) first-peak height = 1.62
density = 1.05: g(r) first-peak height = 3.34
