Pauling’s resonance energy as Huckel delocalization energy

Linus Pauling’s The Nature of the Chemical Bond made “resonance energy” the chemist’s measure of the extra stability a molecule gains because its true structure is a superposition of several Lewis structures (benzene’s two Kekule structures foremost). In Huckel theory that stabilization is the delocalization energy (delocalization_energy()): the computed pi energy minus that of the same electrons held in isolated, ethylene-like double bonds, \(2(\alpha+\beta)\) per bond.

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.quantum.systems.huckel import HuckelSystem

molecules = {
    "ethylene": (HuckelSystem.linear_polyene(2), 2),
    "butadiene": (HuckelSystem.linear_polyene(4), 4),
    "hexatriene": (HuckelSystem.linear_polyene(6), 6),
    "cyclobutadiene": (HuckelSystem.cyclic_polyene(4), 4),
    "benzene": (HuckelSystem.cyclic_polyene(6), 6),
}
resonance = {}
for name, (system, n_pi) in molecules.items():
    resonance[name] = system.delocalization_energy(n_pi)
    print(f"{name:15s} pi energy = {system.pi_electron_energy(n_pi):7.4f} |beta|, resonance energy = {resonance[name]:7.4f}")

ethylene        pi energy = -2.0000 |beta|, resonance energy =  0.0000
butadiene       pi energy = -4.4721 |beta|, resonance energy = -0.4721
hexatriene      pi energy = -6.9879 |beta|, resonance energy = -0.9879
cyclobutadiene  pi energy = -4.0000 |beta|, resonance energy = -0.0000
benzene         pi energy = -8.0000 |beta|, resonance energy = -2.0000

With \(\beta = -1\), benzene’s resonance energy is exactly \(2|\beta|\), far more than open-chain hexatriene with the same six pi electrons, and cyclobutadiene gets none at all. The thermochemical benzene resonance energy of about 36 kcal/mol (from heats of hydrogenation) corresponds to \(|\beta|\) near 18 kcal/mol on this scale.

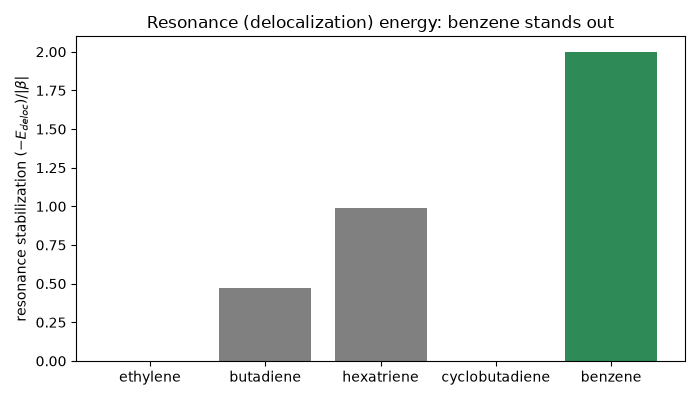

fig, ax = plt.subplots(figsize=(7, 4))
names = list(resonance)
values = -np.array([resonance[n] for n in names])
ax.bar(names, values, color=["gray", "gray", "gray", "lightcoral", "seagreen"])
ax.set_ylabel(r"resonance stabilization $(-E_{deloc})/|\beta|$")
ax.set_title("Resonance (delocalization) energy: benzene stands out")
fig.tight_layout()

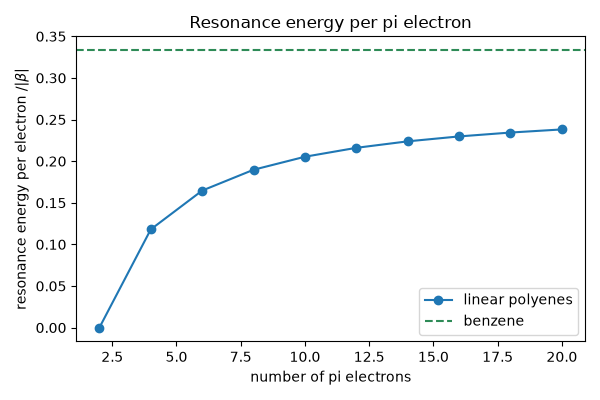

Resonance energy per pi electron in linear polyenes creeps up with chain length but stays well below benzene’s \(|\beta|/3\) per electron.

n_values = np.arange(2, 21, 2)
per_electron = [-HuckelSystem.linear_polyene(n).delocalization_energy(n) / n for n in n_values]
fig2, ax2 = plt.subplots(figsize=(6, 4))
ax2.plot(n_values, per_electron, "o-", label="linear polyenes")
ax2.axhline(-resonance["benzene"] / 6, color="seagreen", linestyle="--", label="benzene")
ax2.set_xlabel("number of pi electrons")
ax2.set_ylabel(r"resonance energy per electron $/|\beta|$")
ax2.set_title("Resonance energy per pi electron")
ax2.legend()
fig2.tight_layout()

plt.show()
