Guldberg and Waage’s law of mass action: Q = K at equilibrium

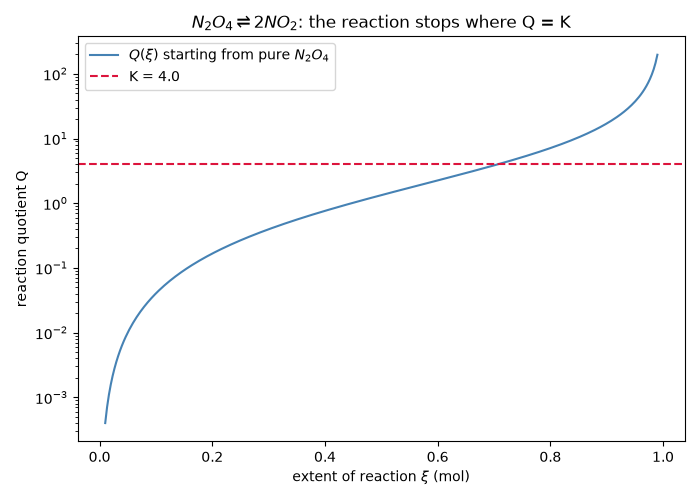

For \(N_2O_4 \rightleftharpoons 2NO_2\) the reaction quotient \(Q = x_{NO_2}^2/x_{N_2O_4}\) (at \(P = P^\circ\)), computed by reaction_quotient(), rises monotonically with the extent of reaction. The law of mass action says the mixture stops changing where \(Q\) reaches the equilibrium constant \(K\). Starting from different mixtures of reactant and product, the equilibrium compositions found by solve_equilibrium_composition() all give the same \(Q = K\).

import matplotlib.pyplot as plt
import numpy as np

from chemistrykit.constants import R
from chemistrykit.thermo.systems.equilibrium import reaction_quotient, solve_equilibrium_composition

T = 298.15
K = 4.0
gibbs_formation = [0.0, -R * T * np.log(K) / 2.0]  # [N2O4, NO2]
nu = np.array([-1.0, 2.0])

xi = np.linspace(0.01, 0.99, 300)
Q = [reaction_quotient([(1 - x) / (1 + x), 2 * x / (1 + x)], nu) for x in xi]

fig, ax = plt.subplots(figsize=(7, 5))
ax.semilogy(xi, Q, color="steelblue", label=r"$Q(\xi)$ starting from pure $N_2O_4$")
ax.axhline(K, color="crimson", linestyle="--", label=f"K = {K}")
ax.set_xlabel(r"extent of reaction $\xi$ (mol)")
ax.set_ylabel("reaction quotient Q")
ax.set_title(r"$N_2O_4 \rightleftharpoons 2NO_2$: the reaction stops where Q = K")
ax.legend()
fig.tight_layout()

Different starting mixtures end with different amounts of each gas, but always with the same value of the mass-action ratio (at fixed total pressure, that also pins the mole fractions):

for n0 in ([1.0, 0.0], [0.05, 1.9], [1.0, 1.0], [0.2, 3.0]):
    res = solve_equilibrium_composition(("N2O4", "NO2"), [[-1.0], [2.0]], n0, gibbs_formation, T)
    Q_eq = reaction_quotient(res.x, nu)
    print(f"start n = {n0}: equilibrium n = {np.round(res.n, 4)} mol, Q = {Q_eq:.4f}")

plt.show()

start n = [1.0, 0.0]: equilibrium n = [0.2929 1.4142] mol, Q = 3.9999
start n = [0.05, 1.9]: equilibrium n = [0.2929 1.4142] mol, Q = 4.0000
start n = [1.0, 1.0]: equilibrium n = [0.4393 2.1213] mol, Q = 4.0000
start n = [0.2, 3.0]: equilibrium n = [0.4979 2.4042] mol, Q = 4.0000
