Baker’s Map: Stretch, Cut, and Stack

The (generalized) baker’s map cuts the unit square \([0,1) \times [0,1)\) at \(x=\alpha\), stretches each piece horizontally back to unit width (contracting it vertically to match), and stacks the two pieces:

\[\begin{split}T(x, y) = \begin{cases} (x / \alpha,\ \alpha y) & 0 \le x < \alpha \\ ((x - \alpha) / (1 - \alpha),\ \alpha + (1 - \alpha) y) & \alpha \le x < 1 \end{cases}\end{split}\]

It is the textbook conceptual bridge of deterministic chaos: it makes this “stretch, cut, and stack” mechanism – the geometric operation behind exponential sensitivity and topological mixing – completely explicit and exactly solvable. Unlike the Henon map, it is area-preserving (its Jacobian determinant is exactly 1 everywhere), yet it is still uniformly hyperbolic, ergodic, and mixing. The example below uses the classic symmetric cut, \(\alpha=0.5\).

import matplotlib.pyplot as plt
import numpy as np

from physicskit.chaos.systems.maps import BakersMap
from physicskit.chaos.visualizers import theme
from physicskit.chaos.visualizers.dynamic_plots import animate_bakers_map

system = BakersMap(alpha=0.5)

Animation: stretch, cut, and stack, in motion

A dense, regular grid of square markers starts colored in just two bands – blue on the left half, red on the right – about as simple an initial state as there is, and one that (for this map’s default alpha = 0.5) lines up exactly with the map’s own cut point. Rather than blending straight to each iteration’s end state, every iteration is animated as three distinct phases: the square visibly stretches out to twice its width (squashed vertically, stretched horizontally, spilling past the unit square’s outline), pauses on the dashed cut line at x = 1, then stacks as the right-hand piece slides back and up onto the left-hand piece – landing the two original colors as clean top and bottom halves after the very first iteration. Because every square keeps its original color, the two halves are then seen getting sliced and interleaved into progressively thinner, more numerous fragments. After 20 iterations the two colors are, to the eye, uniformly salt-and-peppered across the whole square: mixing, made literal.

anim = animate_bakers_map(system, n_points=10000, n_iterations=20, frames_per_iteration=15)

plt.show()

To save the animation to a file instead of (or in addition to) displaying it interactively, use e.g.:

anim.save("bakers_map_animation.gif", writer="pillow", fps=20)

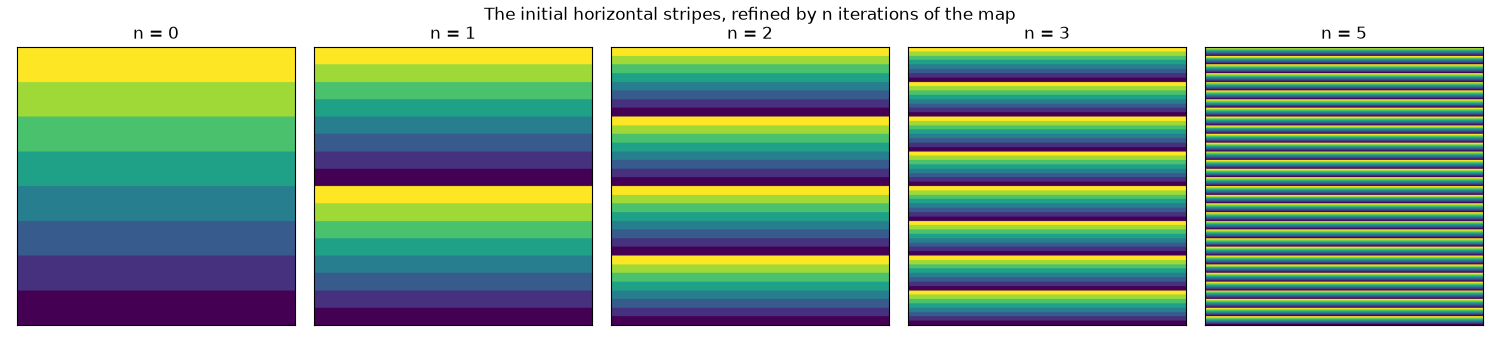

The stripes get thinner, iteration by iteration

The static counterpart of the animation above: render the unit square as a fine-grained raster of colored horizontal stripes, then trace each output pixel backward through the map (the baker’s map’s inverse is just as explicit as its forward form) to find which stripe it originally belonged to. This is far crisper than a scatter plot and makes the exponential refinement of the partition – the hallmark of mixing – directly visible: by 5 iterations, the coarse stripes have already become an interleaved weave too fine to resolve by eye.

alpha = system.alpha
resolution = 500
n_stripes = 8


def _inverse_step(x: np.ndarray, y: np.ndarray) -> tuple[np.ndarray, np.ndarray]:
    """One backward step of the baker's map: undo stretch-cut-stack."""
    bottom = y < alpha
    x_new = np.where(bottom, alpha * x, alpha + (1.0 - alpha) * x)
    y_new = np.where(bottom, y / alpha, (y - alpha) / (1.0 - alpha))
    return x_new, y_new


centers = (np.arange(resolution) + 0.5) / resolution
grid_x, grid_y = np.meshgrid(centers, centers)

cmap = plt.get_cmap(theme.SEQUENTIAL_CMAP, n_stripes)
iterations_shown = [0, 1, 2, 3, 5]
fig, axes = plt.subplots(1, len(iterations_shown), figsize=(15, 3.4))

x, y = grid_x, grid_y
prev_n = 0
for ax, n in zip(axes, iterations_shown):
    for _ in range(n - prev_n):
        x, y = _inverse_step(x, y)
    prev_n = n
    stripe_idx = np.minimum((y * n_stripes).astype(int), n_stripes - 1)
    ax.imshow(stripe_idx, origin="lower", extent=(0, 1, 0, 1), cmap=cmap, vmin=0, vmax=n_stripes - 1)
    ax.set_title(f"n = {n}")
    ax.set_xticks([])
    ax.set_yticks([])
fig.suptitle("The initial horizontal stripes, refined by n iterations of the map")
fig.tight_layout()

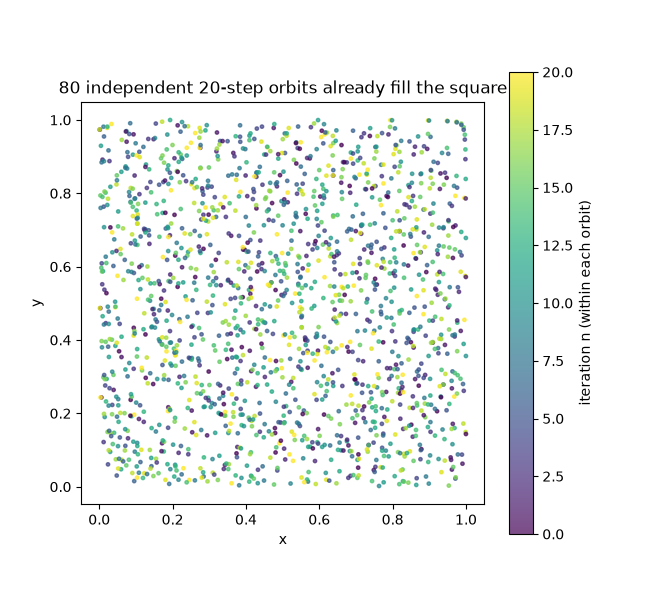

Mixing: many orbits fill the square uniformly

Because the map is area-preserving and ergodic, the ergodic theorem promises that a single orbit, run long enough, visits every region of the unit square with equal density – there is no fractal attractor to see here (unlike the dissipative Henon map): the “attractor” is the whole square.

In double-precision floating point, though, a single orbit of the classic alpha=0.5 map is a poor way to actually demonstrate that: because each step is an exact bit-shift of the state’s binary expansion (see the caveat in BakersMap’s docstring), a double-precision orbit runs out of fresh bits and its x collapses to the exact fixed point 0 within roughly 50 iterations – nowhere near enough to fill the square. A small ensemble of independent short orbits sidesteps this entirely while showing exactly the same mixing: even after just a few dozen iterations each, their combined points already spread densely and (up to small-sample noise) uniformly across the square.

rng = np.random.default_rng(3)
n_orbits, orbit_len = 80, 20
starts = rng.uniform(size=(n_orbits, 2))
orbits = [system.trajectory(s0, n_iter=orbit_len) for s0 in starts]
traj = np.concatenate(orbits, axis=0)
iter_index = np.tile(np.arange(orbit_len + 1), n_orbits)

fig2, ax2 = plt.subplots(figsize=(6.5, 6))
sc = ax2.scatter(traj[:, 0], traj[:, 1], c=iter_index, s=6, cmap=theme.SEQUENTIAL_CMAP, alpha=0.7)
ax2.set_aspect("equal")
ax2.set_xlabel("x")
ax2.set_ylabel("y")
ax2.set_title(f"{n_orbits} independent {orbit_len}-step orbits already fill the square")
fig2.colorbar(sc, ax=ax2, label="iteration n (within each orbit)")

<matplotlib.colorbar.Colorbar object at 0x16c6e6a80>

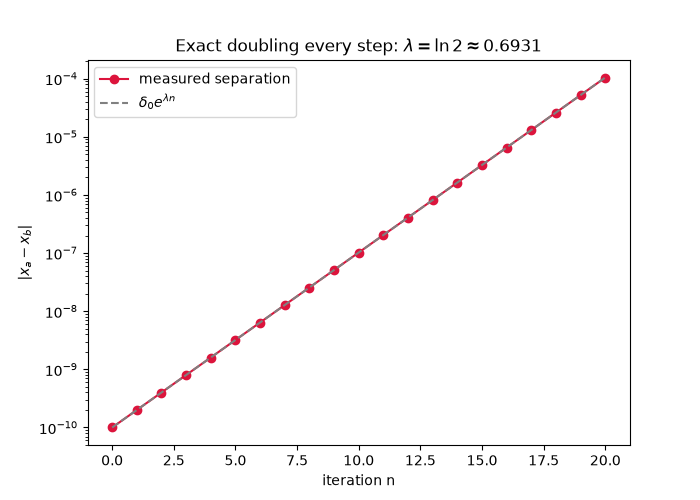

Exponential sensitivity, exactly

Because each branch of the map is exactly linear, the “stretch” step doubles the horizontal separation between two nearby points at every single iteration (for the symmetric \(\alpha=0.5\) map) – no averaging or fitting needed, unlike for smooth chaotic flows. This gives the baker’s map its role as the ground-truth validation case for physicskit.chaos’s numerical Lyapunov estimators: lyapunov_exponents() returns the pair of exact analytic exponents \(\pm h\), with

\[h = -\alpha \ln\alpha - (1 - \alpha)\ln(1 - \alpha),\]

the Shannon entropy of the two-symbol Bernoulli process that describes which branch a typical orbit lands in at each step (\(h = \ln 2\) for the symmetric map).

delta0 = 1e-10
state_a = np.array([0.1, 0.2])
state_b = np.array([0.1 + delta0, 0.2])
separations = [delta0]
for _ in range(20):
    state_a = system.step(state_a)
    state_b = system.step(state_b)
    separations.append(abs(state_b[0] - state_a[0]))
separations = np.array(separations)

lam_plus, lam_minus = system.lyapunov_exponents()

fig3, ax3 = plt.subplots(figsize=(7, 5))
n = np.arange(len(separations))
ax3.semilogy(n, separations, "o-", color=theme.ACCENT, label="measured separation")
ax3.semilogy(n, delta0 * np.exp(lam_plus * n), "--", color=theme.MUTED, label=r"$\delta_0 e^{\lambda n}$")
ax3.set_xlabel("iteration n")
ax3.set_ylabel(r"$|x_a - x_b|$")
ax3.set_title(rf"Exact doubling every step: $\lambda = \ln 2 \approx {lam_plus:.4f}$")
ax3.legend()

plt.show()
