Fresnel diffraction and the Poisson/Arago spot

Augustin-Jean Fresnel combined Huygens’ wavelet construction with Young’s principle of interference into a quantitative near-field diffraction theory. Simeon Poisson pointed out – intending it as a reductio ad absurdum – that Fresnel’s own theory predicted a bright spot at the center of the shadow of a circular obstacle; Francois Arago promptly observed the “Poisson spot” in the laboratory, turning a supposed refutation into the theory’s most dramatic confirmation.

fresnel_diffraction() implements the near-field quadratic-phase (paraxial) propagator that predicts this effect, computed as a single Fourier transform of the field \(U_0(x,y)\) immediately after the obstacle:

\[U(x',y') = \frac{e^{ikz}}{i\lambda z} e^{i\frac{k}{2z}(x'^2+y'^2)}\, \mathcal{F}\!\left[U_0(x,y)\, e^{i\frac{k}{2z}(x^2+y^2)}\right]_{f_x=x'/(\lambda z),\ f_y=y'/(\lambda z)},\]

with wavenumber \(k = 2\pi/\lambda\) and propagation distance \(z\). Here \(U_0\) is generated by circular_aperture(), inverted so that it is 1 everywhere except a disk of radius disk_radius – the complementary transmittance of an opaque circular obstacle – and propagated a distance z = 200 mm at wavelength wavelength = 0.5e-3 mm. Wavelets diffracting around the rim of the disk travel equal path lengths to the axis and interfere constructively there, reproducing the on-axis bright spot Arago observed.

import numpy as np

from physicskit.optics.visualizers import plot_diffraction_pattern
from physicskit.optics.wave import circular_aperture, fresnel_diffraction, intensity

An opaque circular obstacle: transmittance 1 everywhere except the disk

wavelength = 0.5e-3  # mm
dx = 0.004
N = 512
disk_radius = 0.15
disk = (1.0 - circular_aperture((N, N), dx=dx, radius=disk_radius)).astype(complex)

U = fresnel_diffraction(disk, wavelength=wavelength, z=200.0, dx=dx)

fig, ax = plot_diffraction_pattern(U, dx=dx, log_scale=True)

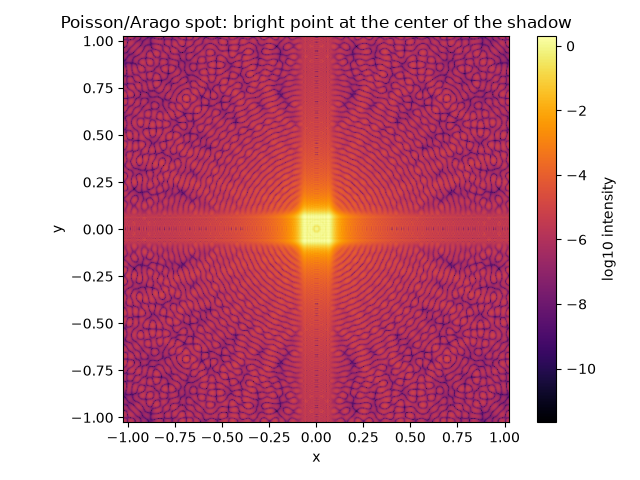

ax.set_title("Poisson/Arago spot: bright point at the center of the shadow")
fig.tight_layout()

The unobstructed on-axis intensity (no disk at all) is the baseline a “reductio ad absurdum” argument implicitly compares against: Poisson’s point was that Fresnel’s theory predicts a bright spot in the shadow of the disk, comparably bright to the unobstructed beam – not simply “some nonzero intensity.”

I_shadow = intensity(U)
center = I_shadow[N // 2, N // 2]

unobstructed = np.ones((N, N), dtype=complex)
U_open = fresnel_diffraction(unobstructed, wavelength=wavelength, z=200.0, dx=dx)
I_open_center = intensity(U_open)[N // 2, N // 2]

print(f"disk radius: {disk_radius} mm")
print(f"intensity at the center of the disk's geometric shadow: {center:.4f}")
print(f"intensity with no disk at all (unobstructed reference): {I_open_center:.4f}")
print("a bright spot at the center of the shadow, comparable to the")
print("unobstructed beam, is exactly the 'absurd' prediction Arago confirmed.")

disk radius: 0.15 mm
intensity at the center of the disk's geometric shadow: 1.0338
intensity with no disk at all (unobstructed reference): 1.2977
a bright spot at the center of the shadow, comparable to the
unobstructed beam, is exactly the 'absurd' prediction Arago confirmed.
