Mandelstam variables and relativistic collision kinematics

Mandelstam (1958) introduced three Lorentz-invariant combinations of a 2-to-2 collision’s four-momenta, \(s=(p_1+p_2)^2\), \(t=(p_1-p_3)^2\), \(u=(p_1-p_4)^2\), satisfying \(s+t+u=\sum_i m_i^2\) for on-shell particles – frame-independent coordinates for any scattering amplitude or cross section. This example computes all three with mandelstam_s(), mandelstam_t(), and mandelstam_u() for an elastic \(2\to2\) scatter, checks the sum rule, and checks that \(s\) itself – unlike the lab-frame energy of either particle – comes out identical whether evaluated in the lab frame or after boosting the whole event into a new frame with boost_to_com().

import matplotlib.pyplot as plt
import numpy as np

from physicskit.particle.kinematics import FourVector, boost_generic, boost_to_com
from physicskit.particle.scattering import mandelstam_s, mandelstam_t, mandelstam_u

An elastic 2-to-2 collision: equal masses, an arbitrary scattering angle

m = 1.0
E_beam = 3.0
p_beam = np.sqrt(E_beam**2 - m**2)

p1 = FourVector(E_beam, 0.0, 0.0, p_beam)  # incoming beam particle
p2 = FourVector(m, 0.0, 0.0, 0.0)  # target at rest

# Elastic scattering at angle theta in the CM frame is easiest to build
# there; go to the CM frame, scatter elastically, then boost the whole
# final state back to the lab.
beta_com = boost_to_com([p1, p2])
p1_com = boost_generic(p1, -beta_com)
p2_com = boost_generic(p2, -beta_com)
p_cm = p1_com.p_mag  # |p| is common to both beams in the CM frame for equal masses... here just use p1's

theta = np.radians(40.0)
p3_com = FourVector(p1_com.E, p_cm * np.sin(theta), 0.0, p_cm * np.cos(theta))
p4_com = FourVector(p2_com.E, -p_cm * np.sin(theta), 0.0, -p_cm * np.cos(theta))

p3 = boost_generic(p3_com, beta_com)
p4 = boost_generic(p4_com, beta_com)

The three invariants, and the sum rule

s = mandelstam_s(p1, p2)
t = mandelstam_t(p1, p3)
u = mandelstam_u(p1, p4)
mass_sum = p1.mass**2 + p2.mass**2 + p3.mass**2 + p4.mass**2

print(f"s = {s:.6f}")
print(f"t = {t:.6f}")
print(f"u = {u:.6f}")
print(f"s + t + u = {s + t + u:.6f}")
print(f"sum of m_i^2 = {mass_sum:.6f}  (should match s+t+u exactly, for on-shell particles)")

s = 8.000000
t = -0.467911
u = -3.532089
s + t + u = 4.000000
sum of m_i^2 = 4.000000  (should match s+t+u exactly, for on-shell particles)

s is frame-independent; the lab-frame energy of a single particle is not

Boost the entire event into an arbitrary new frame and recompute everything: t and u involve specific particles’ momenta and depend on the frame in exactly the way any four-vector’s components do, but s, t, and u are each individually still Lorentz invariant – their numerical values, unlike E or p alone, do not change at all.

beta_new_frame = np.array([0.0, 0.0, 0.4])
p1_boosted = boost_generic(p1, beta_new_frame)
p2_boosted = boost_generic(p2, beta_new_frame)
p3_boosted = boost_generic(p3, beta_new_frame)
p4_boosted = boost_generic(p4, beta_new_frame)

s_boosted = mandelstam_s(p1_boosted, p2_boosted)
t_boosted = mandelstam_t(p1_boosted, p3_boosted)
u_boosted = mandelstam_u(p1_boosted, p4_boosted)

print(f"\nafter boosting the whole event by beta={beta_new_frame[2]}:")
print(f"  particle 1's lab-frame energy: {p1.E:.6f}  ->  {p1_boosted.E:.6f}  (changes -- not invariant)")
print(f"  s: {s:.6f}  ->  {s_boosted:.6f}  (unchanged to machine precision -- s IS invariant)")
print(f"  t: {t:.6f}  ->  {t_boosted:.6f}  (unchanged)")
print(f"  u: {u:.6f}  ->  {u_boosted:.6f}  (unchanged)")

after boosting the whole event by beta=0.4:
  particle 1's lab-frame energy: 3.000000  ->  4.507695  (changes -- not invariant)
  s: 8.000000  ->  8.000000  (unchanged to machine precision -- s IS invariant)
  t: -0.467911  ->  -0.467911  (unchanged)
  u: -3.532089  ->  -3.532089  (unchanged)

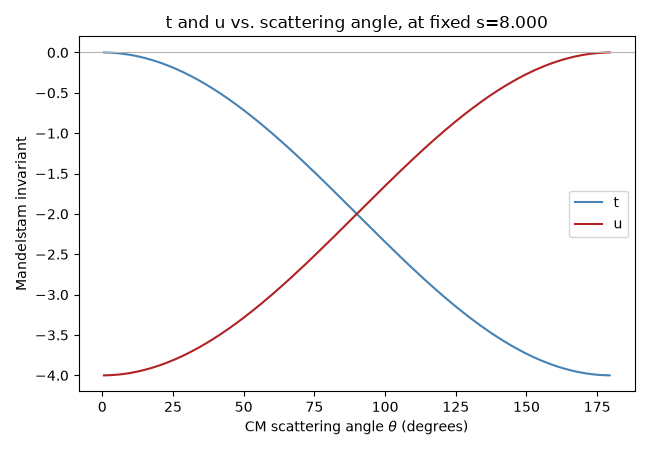

t and u vs. scattering angle, at fixed s

Sweeping the CM scattering angle at fixed beam energy traces out how the momentum-transfer invariants move while s (fixed by the beam energy alone) stays put – t=0 at theta=0 (forward, no momentum transferred to particle 3) and u=0 at theta=180 (backward).

theta_values = np.linspace(0.01, np.pi - 0.01, 200)
t_values, u_values = [], []
for th in theta_values:
    p3c = FourVector(p1_com.E, p_cm * np.sin(th), 0.0, p_cm * np.cos(th))
    p4c = FourVector(p2_com.E, -p_cm * np.sin(th), 0.0, -p_cm * np.cos(th))
    t_values.append(mandelstam_t(p1_com, p3c))
    u_values.append(mandelstam_u(p1_com, p4c))

fig, ax = plt.subplots(figsize=(6.5, 4.5))
ax.plot(np.degrees(theta_values), t_values, color="steelblue", label="t")
ax.plot(np.degrees(theta_values), u_values, color="firebrick", label="u")
ax.axhline(0, color="0.7", lw=0.8)
ax.set_xlabel(r"CM scattering angle $\theta$ (degrees)")
ax.set_ylabel("Mandelstam invariant")
ax.set_title(f"t and u vs. scattering angle, at fixed s={s:.3f}")
ax.legend()
fig.tight_layout()

plt.show()
