Guiding-center drifts and magnetic mirror confinement

Rather than integrate every fast gyration of a charged particle around a field line, plasma theorists of the 1950s (with foundational contributions from Alfven and later systematized by Northrop) showed that the orbit separates cleanly into a rapid gyration plus a slow drift of the gyration’s center – the guiding center – driven by any force or field gradient perpendicular to \(\mathbf{B}\). The gyration itself conserves an adiabatic invariant, the magnetic moment \(\mu=mv_\perp^2/2B\), to very high accuracy whenever the field changes slowly compared to the gyration period; as a particle’s guiding center drifts into stronger field, \(\mu\) conservation forces \(v_\perp\) to grow at the expense of \(v_\parallel\). That conversion is the reaction of a parallel mirror force,

\[F_\parallel = -\mu\,\frac{\partial B}{\partial \ell},\]

decelerating the particle along the field line \(\ell\) as it approaches a region of stronger \(B\) – the mechanism behind magnetic mirror confinement, and the equation of motion magnetic_mirror_bounce() integrates directly (with \(\mu\) held fixed at its initial value) between the mirror’s two throats.

exb_drift(), grad_b_drift(), and curvature_drift() give the guiding-center drift velocities directly; magnetic_moment() and mirror_force() implement the invariant and the resulting bounce motion in magnetic_mirror_bounce().

import matplotlib.pyplot as plt
import numpy as np

import physicskit as pk

A parabolic mirror field profile

Weak at the midplane (z=0), peaking at the throats.

B_func = lambda z: 1.0 + 4.0 * (z / 0.05) ** 2

Launch a proton from the midplane with enough perpendicular velocity that mu-conservation reflects it before the throat.

z_hist, v_par_hist = pk.plasma.magnetic_mirror_bounce(z0=0.0, v_par0=2e4, v_perp0=8e4, m=pk.plasma.MP, B_func=B_func, steps=6000)

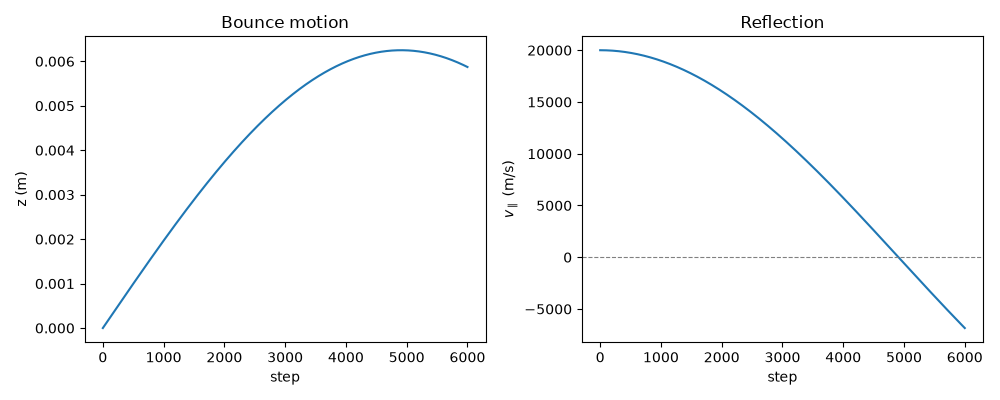

Plot the bounce: z(t) turns around, v_par(t) changes sign exactly at the reflection point – the mirror force decelerating v_par as mu conservation converts it into v_perp.

fig, axes = plt.subplots(1, 2, figsize=(10, 4))
axes[0].plot(z_hist)
axes[0].set_xlabel("step")
axes[0].set_ylabel("z (m)")
axes[0].set_title("Bounce motion")
axes[1].plot(v_par_hist)
axes[1].axhline(0.0, color="gray", linestyle="--", linewidth=0.8)
axes[1].set_xlabel("step")
axes[1].set_ylabel(r"$v_\parallel$ (m/s)")
axes[1].set_title("Reflection")
fig.tight_layout()

plt.show()

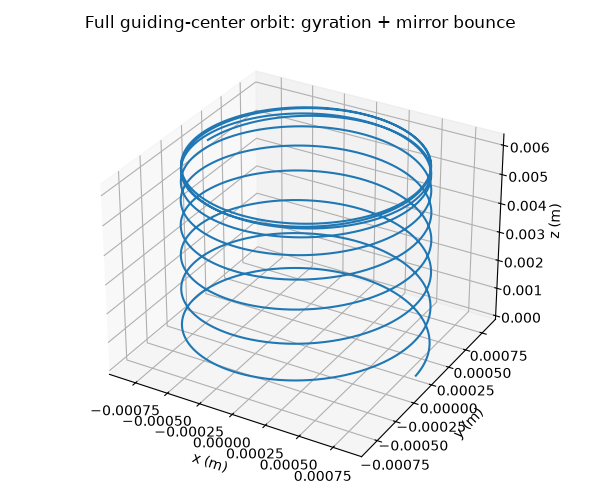

Reconstructing the full 3D guiding-center orbit

The two panels above show only the slow guiding-center motion along the field line; the module’s whole premise is that this is one half of a full orbit that also gyrates rapidly around \(\mathbf{B}\). Mu conservation fixes that fast gyration’s amplitude and phase directly from the guiding-center history already computed: \(v_\perp(z)\) from magnetic_moment() held fixed at \(\mu\), the local gyroradius from larmor_radius(), and the local gyro-phase accumulated from cyclotron_frequency(). Superposing that reconstructed gyration on the bounce shows the actual helical orbit a proton follows – tightening into a fast, small-radius corkscrew near the throats where B is largest, and loosening near the midplane – instead of only its guiding center’s 2D projection.

B_hist = B_func(z_hist)
mu = pk.plasma.magnetic_moment(8e4, pk.plasma.MP, B_func(0.0))
v_perp_hist = np.sqrt(np.clip(2 * mu * B_hist / pk.plasma.MP, 0.0, None))
dt_bounce = 1e-10  # magnetic_mirror_bounce's default time step, used above
omega_c_hist = pk.plasma.cyclotron_frequency(pk.plasma.QE, pk.plasma.MP, B_hist)
gyrophase = np.cumsum(omega_c_hist) * dt_bounce
r_L_hist = pk.plasma.larmor_radius(v_perp_hist, pk.plasma.QE, pk.plasma.MP, B_hist)
pos_hist = np.column_stack([r_L_hist * np.cos(gyrophase), r_L_hist * np.sin(gyrophase), z_hist])

fig = plt.figure(figsize=(6, 5))
ax = fig.add_subplot(projection="3d")
pk.plasma.plot_particle_orbit_3d(pos_hist, ax=ax)
ax.set_title("Full guiding-center orbit: gyration + mirror bounce")
fig.tight_layout()

plt.show()
