Wigner phase-space quasi-probability

The Wigner function represents a quantum state as a quasi-probability distribution over classical phase space \((x,p)\),

\[W(x,p) = \frac{1}{\pi\hbar} \int_{-\infty}^{\infty} \psi^*(x+y)\,\psi(x-y)\, e^{2ipy/\hbar}\, dy,\]

built here from the harmonic-oscillator Fock eigenstates \(\psi=\phi_n(x)\). Unlike a genuine probability density, \(W\) can go negative; its \(x\)- and \(p\)-marginals still reproduce the ordinary quantum probabilities, \(\int W\,dp = \lvert\psi(x)\rvert^2\). The ground state (\(n=0\)) stays a positive Gaussian, but the first excited state (\(n=1\)) develops genuinely negative regions – a hallmark of non-classicality with no counterpart in any classical phase-space distribution.

import matplotlib.pyplot as plt
import numpy as np

from physicskit.quantum.chapters.harmonic_spin import HarmonicOscillator
from physicskit.quantum.visualizers.phase_space import WignerVisualizer

ho = HarmonicOscillator()
x = np.linspace(-6, 6, 220)
wv = WignerVisualizer(n_p=180)

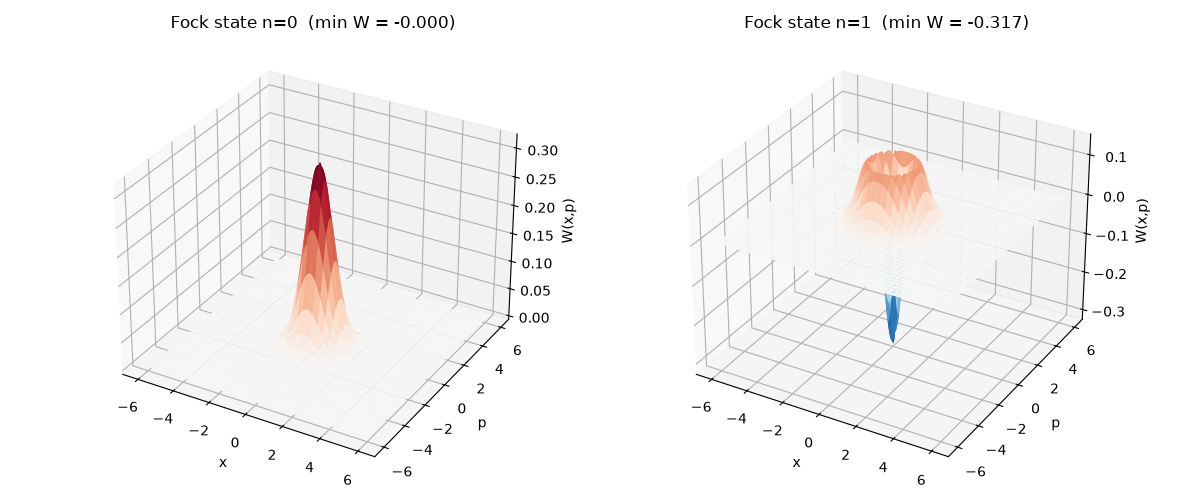

The n=0 and n=1 Fock-state Wigner functions

fig = plt.figure(figsize=(12, 5))

for i, n in enumerate([0, 1]):
    psi_n = ho.eigenfunction(n, x)
    xg, p, W = wv.compute(x, psi_n, p_max=6.0)

    ax = fig.add_subplot(1, 2, i + 1, projection="3d")
    wv.plot_surface(xg, p, W, ax=ax)
    ax.set_title(f"Fock state n={n}  (min W = {W.min():.3f})")

fig.tight_layout()

Sanity check: integrating W over p should recover \(\lvert\psi(x)\rvert^2\).

psi1 = ho.eigenfunction(1, x)
xg, p, W1 = wv.compute(x, psi1)
marginal = wv.position_marginal(p, W1)
print("max |marginal - |psi|^2| =", np.max(np.abs(marginal - psi1**2)))

max |marginal - |psi|^2| = 2.937931927970397e-10

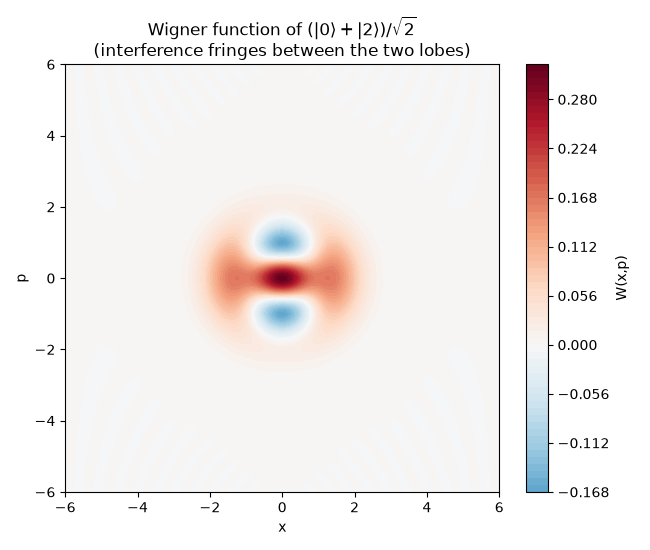

Phase-space interference fringes in a Fock-state superposition

A single Fock state’s Wigner function is rotationally symmetric in phase space, but a coherent superposition of two Fock states develops genuine interference fringes between them – oscillatory, sign-alternating ripples with no classical counterpart – built here with superposition_wavefunction() and rendered with the (previously unused) plot_contour().

psi_super = ho.superposition_wavefunction([0, 2], [1.0, 1.0], x, t=0.0)
xg_s, p_s, W_super = wv.compute(x, psi_super, p_max=6.0)

fig2, ax_super = plt.subplots(figsize=(6.5, 5.5))
wv.plot_contour(xg_s, p_s, W_super, ax=ax_super)
ax_super.set_title(r"Wigner function of $(|0\rangle+|2\rangle)/\sqrt{2}$" "\n(interference fringes between the two lobes)")
fig2.tight_layout()

print(f"min W of the superposition (non-classicality): {W_super.min():.4f}")

min W of the superposition (non-classicality): -0.1647
