Klein’s paradox: relativistic particles at a tall potential step

In 1929 Oskar Klein found that a Dirac electron hitting a step \(V_0\) higher than \(E + mc^2\) is partly transmitted, however tall the step. The transmitted wave is a negative-energy state: the step bends the antiparticle continuum down to the particle’s energy. dirac_step_scattering() and klein_gordon_step_scattering() show the three regimes: ordinary transmission, total reflection, and the Klein zone. There, fermions have \(R < 1\) but spin-0 bosons have \(R > 1\).

import matplotlib.pyplot as plt
import numpy as np

from physicskit.quantum.chapters.relativistic import dirac_step_scattering, klein_gordon_step_scattering

m, E = 1.0, 2.0
V0 = np.linspace(0, 8, 1601)
V0 = V0[np.abs(V0 - 2 * E) > 0.02]  # skip the KG pole at V0 = 2E

R_d, T_d = dirac_step_scattering(E, V0, m)
R_kg, T_kg = klein_gordon_step_scattering(E, V0, m)
R_naive, _ = dirac_step_scattering(E, V0, m, group_velocity=False)

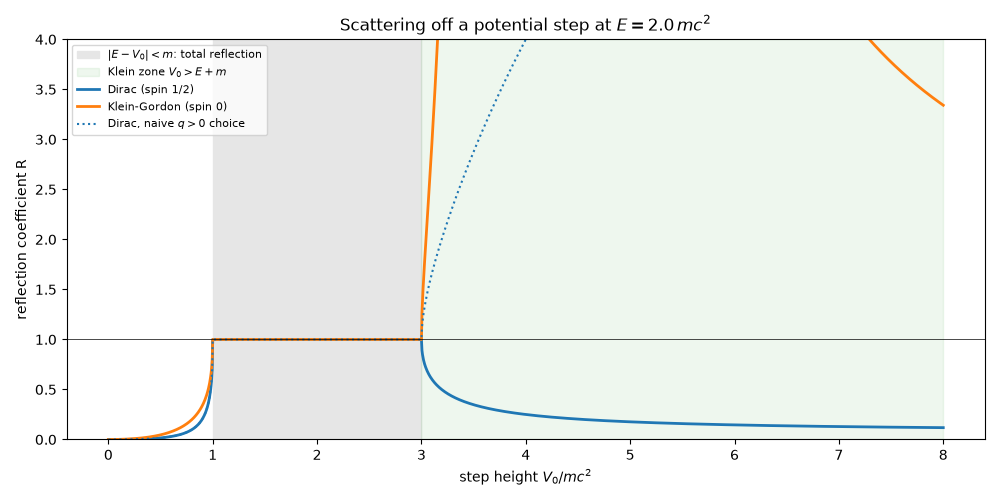

Reflection coefficient across the three regimes

fig, ax = plt.subplots(figsize=(10, 5))
ax.axvspan(E - m, E + m, color="0.9", label=r"$|E - V_0| < m$: total reflection")
ax.axvspan(E + m, V0.max(), color="C2", alpha=0.08, label=r"Klein zone $V_0 > E + m$")
ax.plot(V0, R_d, lw=2, label="Dirac (spin 1/2)")
ax.plot(V0, R_kg, lw=2, label="Klein-Gordon (spin 0)")
ax.plot(V0, R_naive, ":", color="C0", label="Dirac, naive $q > 0$ choice")
ax.axhline(1, color="k", lw=0.5)
ax.set_ylim(0, 4)
ax.set_xlabel(r"step height $V_0 / mc^2$")
ax.set_ylabel("reflection coefficient R")
ax.set_title(rf"Scattering off a potential step at $E = {E}\,mc^2$")
ax.legend(fontsize=8, loc="upper left")
fig.tight_layout()

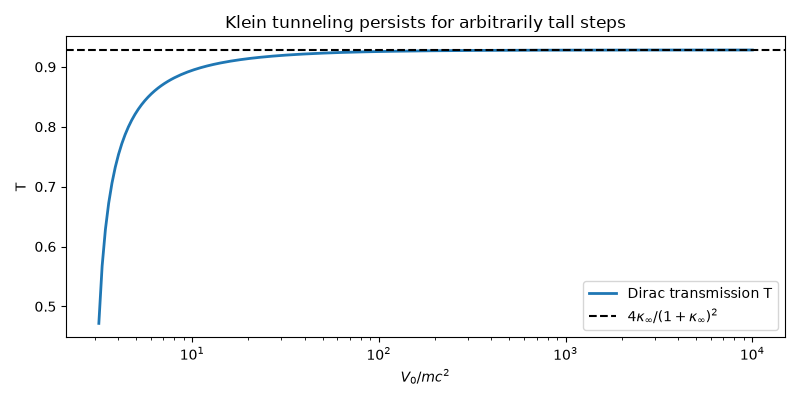

Transmission that never switches off

As \(V_0 \to \infty\) the Dirac transmission tends to \(4\kappa_\infty/(1+\kappa_\infty)^2\) with \(\kappa_\infty = \sqrt{(E+m)/(E-m)}\): a finite fraction of the beam always gets through, the transmitted current being carried by antiparticles created at the step.

V_big = np.logspace(0.5, 4, 200)
_, T_big = dirac_step_scattering(E, V_big, m)
kinf = np.sqrt((E + m) / (E - m))
fig2, ax2 = plt.subplots(figsize=(8, 4))
ax2.semilogx(V_big, T_big, lw=2, label="Dirac transmission T")
ax2.axhline(4 * kinf / (1 + kinf) ** 2, color="k", ls="--", label=r"$4\kappa_\infty/(1+\kappa_\infty)^2$")
ax2.set_xlabel(r"$V_0 / mc^2$")
ax2.set_ylabel("T")
ax2.set_title("Klein tunneling persists for arbitrarily tall steps")
ax2.legend()
fig2.tight_layout()

print(f"R + T = 1 everywhere: Dirac {np.allclose(R_d + T_d, 1)}, Klein-Gordon {np.allclose(R_kg + T_kg, 1)}")

R + T = 1 everywhere: Dirac True, Klein-Gordon True

Check

Probability flux is conserved; there is total reflection for |E - V0| < m; in the Klein zone the spin-0 particle shows superradiant reflection (R > 1) while the Dirac particle never does; and Dirac transmission tends to 4 kappa / (1 + kappa)^2 for an infinite step.

assert np.allclose(R_d + T_d, 1) and np.allclose(R_kg + T_kg, 1)
gap = (V0 > E - m + 0.01) & (V0 < E + m - 0.01)
assert np.allclose(R_d[gap], 1) and np.allclose(R_kg[gap], 1)
klein = V0 > E + m + 0.01
assert np.all(R_kg[klein] > 1) and np.all(R_d[klein] <= 1)
assert abs(T_big[-1] - 4 * kinf / (1 + kinf) ** 2) < 1e-4
