GPS: General Relativity in your pocket

Every GPS satellite carries an atomic clock that runs measurably faster than an identical clock on the ground – about 38 microseconds per day, a combination of gravitational blueshift (from sitting higher in Earth’s potential well) partially offset by special-relativistic time dilation (from orbital speed). A clock at radius \(r\) moving with angular velocity \(\Omega\) around a mass \(M\) (Earth, here) has a proper-to-coordinate time rate that combines both effects in one formula:

\[\frac{d\tau}{dt} = \sqrt{\left(1 - \frac{2M}{r}\right) - r^2 \Omega^2}\]

For a GPS satellite (\(\Omega\) the Keplerian orbital rate \(\sqrt{M/r^3}\)) versus a ground station (\(\Omega\) Earth’s sidereal rotation rate), this net rate difference amounts to about 38 microseconds per day. Left uncorrected, this drift would make GPS position fixes wander by roughly 10 km per day. Every GPS satellite clock is built to tick deliberately slow on the ground, specifically so that once in orbit it matches ground clocks – General Relativity, engineered into a system used by billions of people daily.

import matplotlib.pyplot as plt
import numpy as np

from physicskit.relativity.chapters.timekeeping import (
    EARTH_RADIUS_M,
    GPS_ORBITAL_RADIUS_M,
    clock_rate_factor,
    earth_mass_geometrized,
    gps_relativistic_offset_per_day,
)

The net correction, and its two competing pieces

M = earth_mass_geometrized()
net_offset = gps_relativistic_offset_per_day()

gravity_only_sat = clock_rate_factor(GPS_ORBITAL_RADIUS_M, 0.0, M=M)
gravity_only_ground = clock_rate_factor(EARTH_RADIUS_M, 0.0, M=M)
gravitational_offset = (gravity_only_sat - gravity_only_ground) * 86400.0 * 1.0e6
velocity_offset = net_offset - gravitational_offset

print(f"Gravitational blueshift (satellite higher up):  +{gravitational_offset:.2f} microseconds/day")
print(f"Velocity time dilation (satellite's orbital speed): {velocity_offset:.2f} microseconds/day")
print(f"Net relativistic correction: {net_offset:.2f} microseconds/day")
print(f"Uncorrected position drift: roughly {net_offset * 1e-6 * 3e8 / 1000.0:.1f} km/day")

Gravitational blueshift (satellite higher up):  +45.72 microseconds/day
Velocity time dilation (satellite's orbital speed): -7.11 microseconds/day
Net relativistic correction: 38.61 microseconds/day
Uncorrected position drift: roughly 11.6 km/day

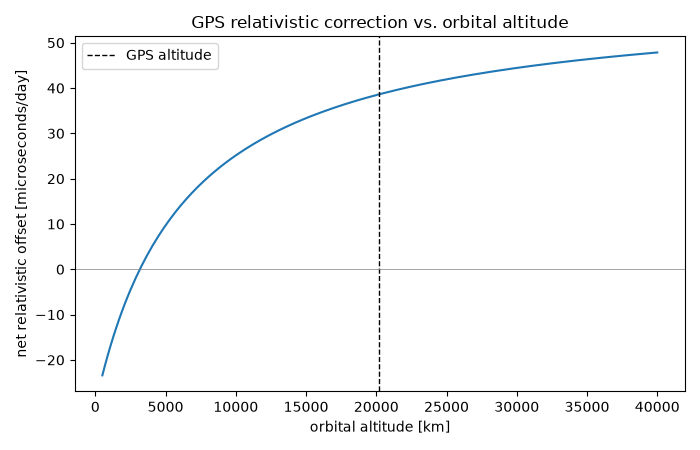

How the correction depends on orbital altitude

altitudes_km = np.linspace(500.0, 40000.0, 200)
radii = EARTH_RADIUS_M + altitudes_km * 1000.0
offsets = [gps_relativistic_offset_per_day(r_satellite=r) for r in radii]

plt.figure(figsize=(7, 4.5))
plt.plot(altitudes_km, offsets)
plt.axvline(
    (GPS_ORBITAL_RADIUS_M - EARTH_RADIUS_M) / 1000.0,
    color="k",
    linestyle="--",
    linewidth=1,
    label="GPS altitude",
)
plt.axhline(0.0, color="gray", linewidth=0.5)
plt.xlabel("orbital altitude [km]")
plt.ylabel("net relativistic offset [microseconds/day]")
plt.title("GPS relativistic correction vs. orbital altitude")
plt.legend()
plt.tight_layout()

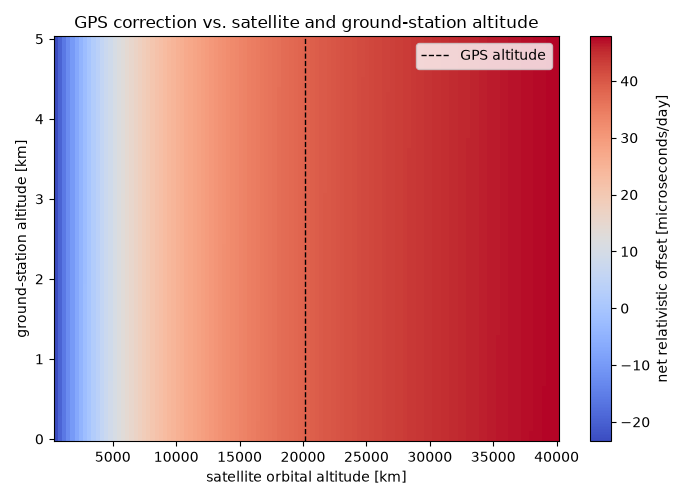

The correction also depends (weakly) on the ground station’s own altitude

gps_relativistic_offset_per_day() takes both r_satellite and r_ground independently – the curve above only varies the satellite’s altitude at sea level. A ground station on a high plateau or mountaintop sits measurably higher in Earth’s potential well too, running its own clock very slightly faster and so trimming the net satellite-minus-ground offset by a small but real amount.

sat_altitude_km = np.linspace(500.0, 40000.0, 120)
ground_altitude_km = np.linspace(0.0, 5.0, 80)  # sea level up to a high mountain
SAT_ALT, GROUND_ALT = np.meshgrid(sat_altitude_km, ground_altitude_km)
r_sat = EARTH_RADIUS_M + SAT_ALT * 1000.0
r_grd = EARTH_RADIUS_M + GROUND_ALT * 1000.0
offset_map = gps_relativistic_offset_per_day(r_satellite=r_sat, r_ground=r_grd)

fig, ax = plt.subplots(figsize=(7, 5))
im = ax.pcolormesh(sat_altitude_km, ground_altitude_km, offset_map, shading="auto", cmap="coolwarm")
plt.colorbar(im, ax=ax, label="net relativistic offset [microseconds/day]")
ax.axvline(
    (GPS_ORBITAL_RADIUS_M - EARTH_RADIUS_M) / 1000.0,
    color="k",
    linestyle="--",
    linewidth=1,
    label="GPS altitude",
)
ax.set_xlabel("satellite orbital altitude [km]")
ax.set_ylabel("ground-station altitude [km]")
ax.set_title("GPS correction vs. satellite and ground-station altitude")
ax.legend()
plt.tight_layout()
plt.show()
