The Dumitriu-Edelman Tridiagonal Model

The classical Gaussian ensembles GOE/GUE/GSE only exist at Dyson index \(\beta = 1, 2, 4\), and are conventionally built as dense \(n \times n\) matrices costing \(O(n^3)\) to diagonalize. Dumitriu and Edelman (2002) showed that the tridiagonal matrix

\[H_\beta = \mathrm{tridiag}(\text{off-diag},\ \text{diag},\ \text{off-diag}),\]

with independent entries \(\text{diag}_i \sim \mathcal{N}(0, 2)\) and \(\text{off-diag}_i \sim \chi(\beta(n-i))\) (a chi-distributed random variable with \(\beta(n-i)\) degrees of freedom), has exactly the joint eigenvalue density of the Gaussian beta-ensemble,

\[f(x_1, \dots, x_n) \propto e^{-\tfrac{\beta}{4}\sum_i x_i^2} \prod_{i<j} |x_i - x_j|^\beta,\]

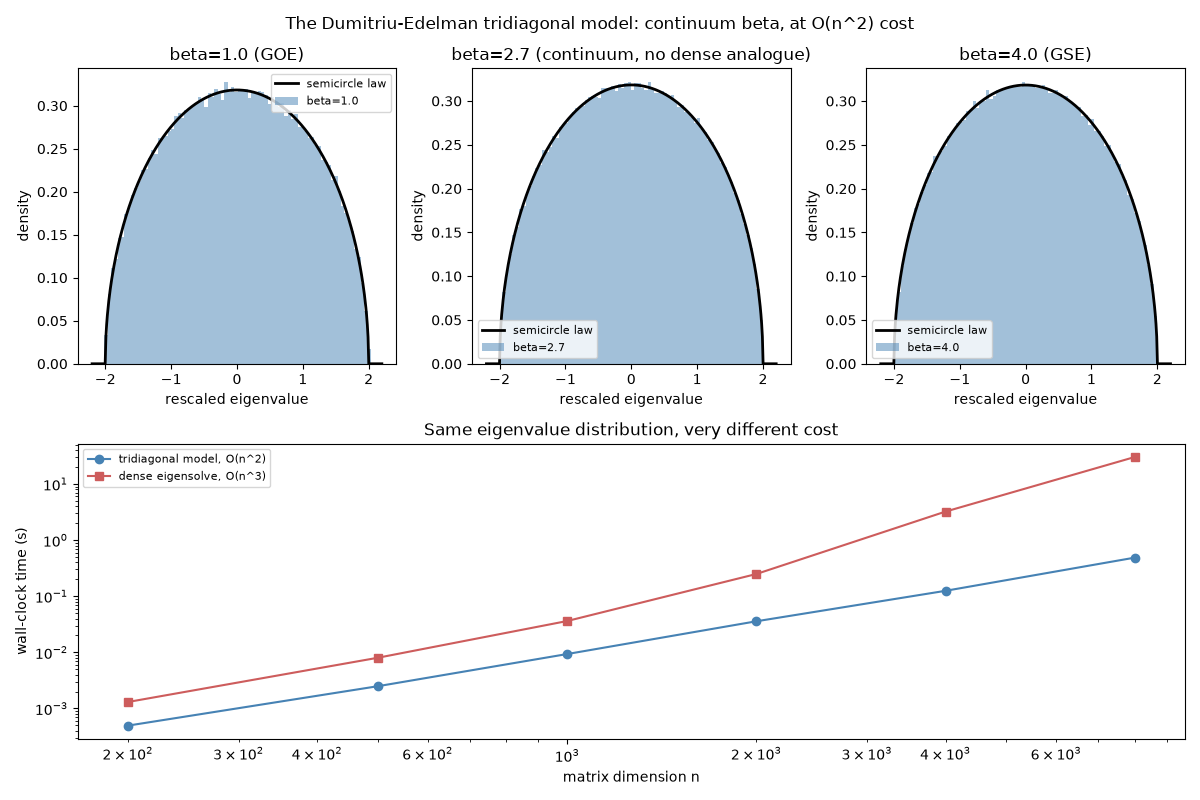

for any continuum \(\beta > 0\) – not just the classical \(\beta=1,2,4\) – while costing only \(O(n^2)\) to diagonalize (a tridiagonal eigensolve), since the dense Hermitian matrix is never formed. This example reproduces the two things this construction made possible for the first time: (1) simulating the Gaussian beta-ensemble at any continuum Dyson index beta > 0, not just beta=1, 2, 4, with eigenvalues that still converge to the universal semicircle law after the standard rescaling; and (2) doing so in O(n^2) time, rather than the O(n^3) a dense Hermitian eigensolve requires – the algorithmic advance that makes large-n asymptotic theorems (semicircle, Tracy-Widom, …) actually reachable.

Reference: I. Dumitriu, A. Edelman, J. Math. Phys. 43, 5830 (2002).

Run:

python examples/paper_replications/tridiagonal_demo.py

Saved tridiagonal_replication.png

import time

import matplotlib.pyplot as plt
import numpy as np

import physicskit.rmt as rmt
from physicskit.rmt.utils.tridiagonal import sample_hermite_beta_eigenvalues

SEED = 2026

fig, axd = plt.subplot_mosaic(
    [["b1", "b2", "b3"], ["timing", "timing", "timing"]],
    figsize=(12, 8),
)

# --- Panels "b1"-"b3": continuum-beta semicircle universality ---
N = 800
N_SAMPLES = 30
BETAS = [1.0, 2.7, 4.0]
x_grid = np.linspace(-2.2, 2.2, 400)

for beta, key in zip(BETAS, ["b1", "b2", "b3"], strict=True):
    ensemble = rmt.ensembles.HermiteBetaEnsemble(n=N, beta=beta, seed=SEED)
    spectrum = ensemble.sample(n_samples=N_SAMPLES)
    ax = axd[key]
    ax.plot(x_grid, rmt.stats.semicircle_pdf(x_grid), "k-", lw=2, label="semicircle law")
    ax.hist(spectrum.rescaled.ravel(), bins=80, density=True, alpha=0.5, color="steelblue", label=f"beta={beta}")
    ax.set_xlabel("rescaled eigenvalue")
    ax.set_ylabel("density")
    ax.set_title(f"beta={beta}")
    ax.legend(fontsize=8)
axd["b1"].set_title("beta=1.0 (GOE)")
axd["b2"].set_title("beta=2.7 (continuum, no dense analogue)")
axd["b3"].set_title("beta=4.0 (GSE)")

# --- Panel "timing": O(n^2) tridiagonal vs. O(n^3) dense eigensolve ---
n_values = np.array([200, 500, 1000, 2000, 4000, 8000])
rng = np.random.default_rng(SEED)

tridiag_times = []
dense_times = []
for n in n_values:
    t0 = time.time()
    sample_hermite_beta_eigenvalues(int(n), 2.0, rng)
    tridiag_times.append(time.time() - t0)

    t0 = time.time()
    x = rng.standard_normal((n, n))
    a = (x + x.T) / np.sqrt(2.0)
    np.linalg.eigvalsh(a)
    dense_times.append(time.time() - t0)

ax = axd["timing"]
ax.plot(n_values, tridiag_times, "o-", color="steelblue", label="tridiagonal model, O(n^2)")
ax.plot(n_values, dense_times, "s-", color="indianred", label="dense eigensolve, O(n^3)")
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel("matrix dimension n")
ax.set_ylabel("wall-clock time (s)")
ax.set_title("Same eigenvalue distribution, very different cost")
ax.legend(fontsize=8)

fig.suptitle(
    "The Dumitriu-Edelman tridiagonal model: continuum beta, at O(n^2) cost",
)
fig.tight_layout()
out_path = "tridiagonal_replication.png"
fig.savefig(out_path, dpi=150)
print(f"Saved {out_path}")
