The Elastic Pendulum and 1:2 Autoparametric Resonance

ElasticPendulum is a mass \(m\) on a Hookean spring of natural length \(L_0\) and stiffness \(k\), free to both stretch and swing. With generalized coordinates \(q = (s, \theta)\) – \(s\) the spring’s stretch beyond \(L_0\) (so the pivot-to-mass distance is \(r = L_0 + s\)) and \(\theta\) the swing angle from the downward vertical – its Lagrangian is

\[L = \frac{m}{2}\left[\dot s^2 + (L_0 + s)^2 \dot\theta^2\right] - \frac{k}{2} s^2 + m g (L_0 + s)\cos\theta .\]

The \((L_0+s)^2\dot\theta^2\) term is what couples the (otherwise independent, linear) stretch and swing motions: whenever the mass swings, its varying distance from the pivot pumps the spring, and vice versa. Written alone each mode would oscillate at its own natural frequency, \(\omega_s = \sqrt{k/m}\) for the stretch and \(\omega_\theta = \sqrt{g/L_0}\) for the swing; the coupling becomes strong – and famously resonant – whenever \(\omega_s \approx 2\,\omega_\theta\) (1:2 autoparametric resonance), where energy started as pure vertical stretching oscillation periodically leaks into, and back out of, swinging. ElasticPendulum’s default parameters (\(k = 4mg/L_0\)) are set to this 1:2 resonance condition exactly.

import matplotlib.pyplot as plt

from physicskit.classical.systems.lagrangian import ElasticPendulum
from physicskit.classical.visualizers.animations import animate_elastic_pendulum

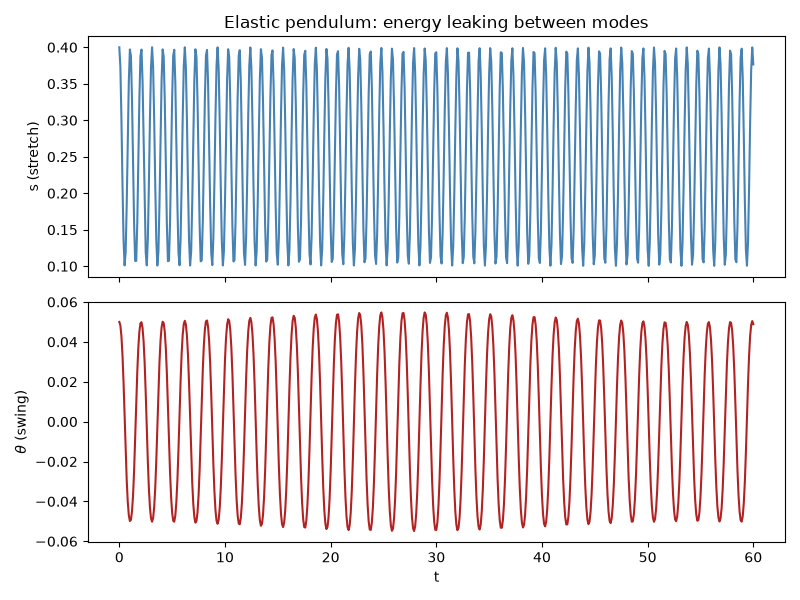

Energy exchange between stretching and swinging

Start mostly stretched, with only a small swing seed, and integrate long enough to see the swing amplitude visibly beat.

system = ElasticPendulum(q0=[0.4, 0.05], qdot0=[0.0, 0.0])
result = system.integrate((0.0, 60.0), dt=0.1, method="implicit_midpoint")

fig1, (ax1, ax2) = plt.subplots(2, 1, figsize=(8, 6), sharex=True)
ax1.plot(result.t, result.q[:, 0], color="steelblue")
ax1.set_ylabel("s (stretch)")
ax1.set_title("Elastic pendulum: energy leaking between modes")
ax2.plot(result.t, result.q[:, 1], color="firebrick")
ax2.set_ylabel(r"$\theta$ (swing)")
ax2.set_xlabel("t")
fig1.tight_layout()

Animation: the coil stretching and swinging together

anim = animate_elastic_pendulum(system, result, interval=20, trail=300)

plt.show()

To save the animation to a file instead of (or in addition to) displaying it interactively, use e.g.:

anim.save("elastic_pendulum_animation.gif", writer="pillow", fps=30)
