GW170817: the first binary neutron star merger

On 17 August 2017, LIGO and Virgo detected the inspiral of two neutron stars – far lighter than any binary black hole seen before, and correspondingly slower-chirping: the signal remained in the detectors’ sensitive band for over a minute, instead of the fraction of a second GW150914’s ~30-solar-mass black holes took. The measured chirp mass,

\[\mathcal{M} = \frac{(m_1 m_2)^{3/5}}{(m_1+m_2)^{1/5}} \approx 1.186\,M_\odot,\]

was immediately recognizable as two neutron stars rather than two black holes: far below any black hole binary LIGO had detected, and consistent with the narrow mass range neutron stars are observed to occupy. This example reproduces that chirp mass from representative component masses and, using the same leading-order (Newtonian quadrupole) inspiral formula as the GW150914 example, shows directly why such light compact objects sweep through the detector band so much more slowly than a comparable binary black hole.

import matplotlib.pyplot as plt
import numpy as np

from physicskit.relativity.chapters.gw_merger import BinaryMerger
from physicskit.relativity.utils import constants as const

The chirp mass pins down the source as two neutron stars, not black holes

Component masses of roughly 1.46 and 1.27 solar masses – squarely inside the observed neutron star mass range – reproduce the measured chirp mass to within its reported uncertainty.

m1_Msun, m2_Msun = 1.46, 1.27
m1 = const.solar_masses_to_geometrized(m1_Msun)
m2 = const.solar_masses_to_geometrized(m2_Msun)
distance = const.PARSEC_M * 40.0e6  # GW170817: roughly 40 Mpc away
gw170817 = BinaryMerger(m1=m1, m2=m2, distance=distance, inclination=0.4)
chirp_mass_Msun = const.geometrized_to_solar_masses(gw170817.chirp_mass)
print(f"GW170817-like: M1={m1_Msun} Msun, M2={m2_Msun} Msun, chirp mass={chirp_mass_Msun:.3f} Msun (measured: ~1.186 Msun)")

GW170817-like: M1=1.46 Msun, M2=1.27 Msun, chirp mass=1.185 Msun (measured: ~1.186 Msun)

Why light neutron stars chirp for so much longer than heavy black holes

Inverting the inspiral frequency formula

\[f(t) = \frac{1}{\pi}\left[\frac{5}{256\,(t_{\text{merger}}-t)}\right]^{3/8} \mathcal{M}^{-5/8}\]

for the time remaining before merger at a given frequency,

\[\tau(f) = \frac{5}{256\,(\pi f)^{8/3}\,\mathcal{M}^{5/3}},\]

shows how strongly the chirp mass alone controls the inspiral’s duration: a lighter chirp mass spends far longer sweeping through the same frequency band, since \(\tau \propto \mathcal{M}^{-5/3}\).

def time_to_merger_at_frequency(merger, f_gw_hz):
    """Time before merger at which the GW frequency first reaches ``f_gw_hz``."""
    f_geom = f_gw_hz / const.C_SI
    tau = 5.0 / (256.0 * (np.pi * f_geom) ** (8.0 / 3.0) * merger.chirp_mass ** (5.0 / 3.0))
    return const.geometrized_to_seconds(tau)


gw150914 = BinaryMerger(
    m1=const.solar_masses_to_geometrized(36.0),
    m2=const.solar_masses_to_geometrized(29.0),
    distance=const.PARSEC_M * 410.0e6,
)

f_low_hz = 24.0  # roughly where Advanced LIGO's sensitive band began for this event
tau_170817 = time_to_merger_at_frequency(gw170817, f_low_hz)
tau_150914 = time_to_merger_at_frequency(gw150914, f_low_hz)
print(f"Time from {f_low_hz:.0f} Hz to merger -- GW170817-like: {tau_170817:.1f} s, GW150914-like: {tau_150914:.2f} s")

t_170817_s = np.linspace(-tau_170817, -0.05, 2000)
t_150914_s = np.linspace(-tau_150914, -0.005, 2000)
f_170817_Hz = gw170817.inspiral_frequency(const.seconds_to_geometrized(t_170817_s), t_merger=0.0) * const.C_SI
f_150914_Hz = gw150914.inspiral_frequency(const.seconds_to_geometrized(t_150914_s), t_merger=0.0) * const.C_SI

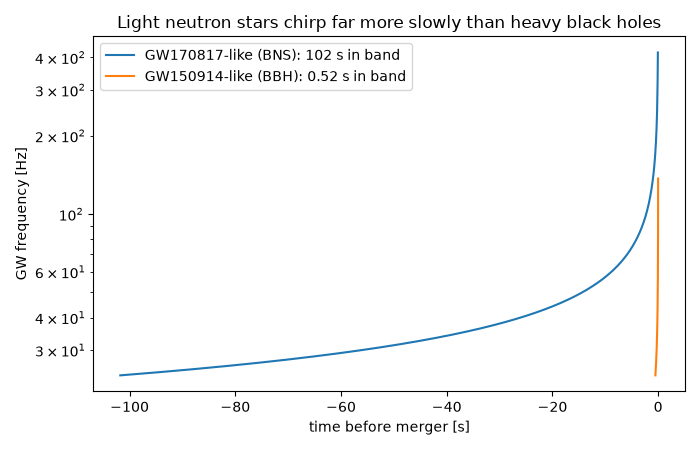

fig, ax = plt.subplots(figsize=(7, 4.5))
ax.plot(t_170817_s, f_170817_Hz, label=f"GW170817-like (BNS): {tau_170817:.0f} s in band")
ax.plot(t_150914_s, f_150914_Hz, label=f"GW150914-like (BBH): {tau_150914:.2f} s in band")
ax.set_xlabel("time before merger [s]")
ax.set_ylabel("GW frequency [Hz]")
ax.set_yscale("log")
ax.set_title("Light neutron stars chirp far more slowly than heavy black holes")
ax.legend()
plt.tight_layout()
plt.show()

Time from 24 Hz to merger -- GW170817-like: 101.8 s, GW150914-like: 0.52 s
