Stress#

Plane stress transformation, three-dimensional principal stresses and strain-gauge rosettes.

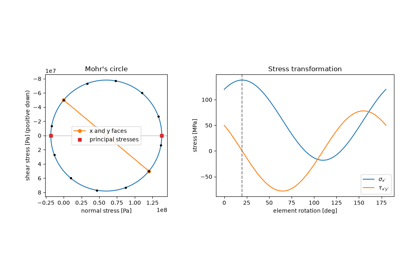

Mohr’s circle (1882)

Mohr's circle (1882)

Simmons and Ruge’s bonded strain gauge (1938)

Simmons and Ruge's bonded strain gauge (1938)
