Maillart’s shear centre (1921)

Carl von Bach’s tests on channel beams at Stuttgart showed them twisting under loads applied through the web, and bending sideways under loads in the plane of the web. Robert Maillart (1921) explained both. In a section without two axes of symmetry the neutral axis is not perpendicular to the plane of the loads unless the loads act along a principal axis (unsymmetrical_bending_stress(), neutral_axis_angle()); and the shear flows in the flanges of a channel form a couple, so the load must pass through a point outside the web, the shear centre (channel_shear_center()), to bend the beam without twisting it. The example computes both for a channel and an angle, built from rectangles by channel_section() and angle_section().

import matplotlib.pyplot as plt
import numpy as np

from engineeringkit.structural_engineering import (
    angle_section,
    channel_section,
    channel_shear_center,
    neutral_axis_angle,
    unsymmetrical_bending_stress,
)

The channel: centroid and shear centre on opposite sides of the web

d, bf, tf, tw = 0.2, 0.075, 0.01, 0.006
channel = channel_section(d, bf, tf, tw)
h, b = d - tf, bf - tw / 2  # centreline dimensions
e = channel_shear_center(h, b, tf, tw)
print(f"centroid {channel.z_centroid * 1e3:.1f} mm in front of the web's back, shear centre {e * 1e3:.1f} mm behind its centreline")

# The flange shear flows rise linearly to V b h tf / (2 I) at the web; their couple F h must equal V e.
I_thin = tw * h**3 / 12 + 2 * b * tf * (h / 2) ** 2
F = b**2 * h * tf / (4 * I_thin)
assert np.isclose(F * h, e)

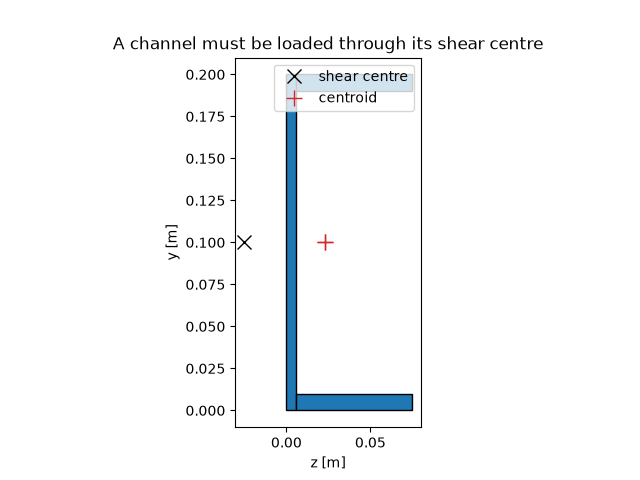

fig, ax = channel.plot()
ax.plot(tw / 2 - e, d / 2, "x", color="k", ms=10, label="shear centre")
ax.plot(channel.z_centroid, channel.y_centroid, "+", color="C3", ms=12, label="centroid")
ax.legend(loc="upper right")
ax.set_title("A channel must be loaded through its shear centre")

centroid 23.1 mm in front of the web's back, shear centre 28.5 mm behind its centreline

Text(0.5, 1.0, 'A channel must be loaded through its shear centre')

The angle: a vertical load does not bend it vertically

angle = angle_section(0.15, 0.1, 0.012)
I1, I2, theta = angle.principal_moments()
Mz = -8e3  # hogging moment from a vertical load on a cantilever [N m]
alpha = neutral_axis_angle(0.0, Mz, angle.Iy, angle.Iz, angle.Iyz)
print(f"Iz {angle.Iz * 1e8:.0f} cm^4, Iy {angle.Iy * 1e8:.0f} cm^4, Iyz {angle.Iyz * 1e8:.0f} cm^4")
print(f"principal axes at {np.degrees(theta):.1f} deg, neutral axis at {np.degrees(alpha):.1f} deg (not 0)")
corners = np.array([[0, 0], [0, 0.15], [0.012, 0.15], [0.1, 0.012], [0.1, 0]]) - [angle.z_centroid, angle.y_centroid]
sigma = unsymmetrical_bending_stress(0.0, Mz, corners[:, 1], corners[:, 0], angle.Iy, angle.Iz, angle.Iyz)
for (z, y), stress in zip(corners, sigma):
    print(f"  corner ({z * 1e3:+.0f}, {y * 1e3:+.0f}) mm: {stress / 1e6:+.1f} MPa")
assert np.isclose(unsymmetrical_bending_stress(0.0, Mz, np.sin(alpha), np.cos(alpha), angle.Iy, angle.Iz, angle.Iyz), 0, atol=1e-3)
assert abs(alpha) > np.radians(5)

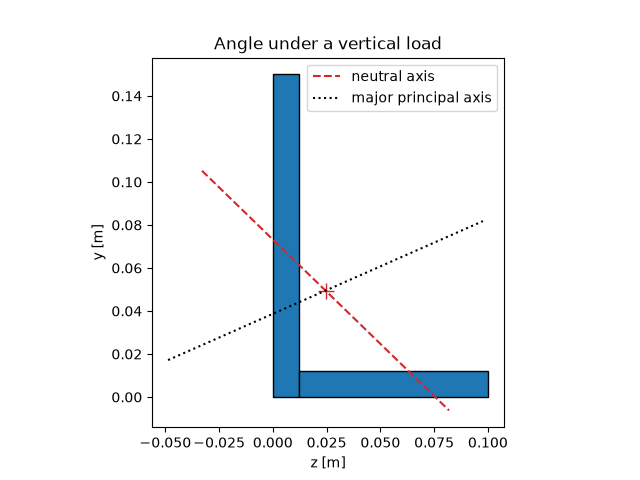

fig, ax = angle.plot()
t = np.linspace(-0.08, 0.08, 2)
ax.plot(angle.z_centroid + t * np.cos(alpha), angle.y_centroid + t * np.sin(alpha), "--", color="C3", label="neutral axis")
ax.plot(angle.z_centroid + t * np.cos(theta), angle.y_centroid + t * np.sin(theta), ":", color="k", label="major principal axis")
ax.legend(loc="upper right")
ax.set_title("Angle under a vertical load")

plt.show()

Iz 656 cm^4, Iy 237 cm^4, Iyz -230 cm^4
principal axes at 23.8 deg, neutral axis at -44.1 deg (not 0)
  corner (-24, -49) mm: -135.4 MPa
  corner (-24, +101) mm: +141.9 MPa
  corner (-12, +101) mm: +163.4 MPa
  corner (+76, -37) mm: +66.1 MPa
  corner (+76, -49) mm: +43.9 MPa
