Lamé’s thick-walled cylinder (1833)

The hoop stress \(pr/t\) of a boiler shell (thin_wall_vessel_stresses()) assumes the stress is uniform through the wall. Gabriel Lamé and Émile Clapeyron, in their memoir on the equilibrium of elastic solids (written in Russia, published in Paris in 1833), solved the hollow cylinder exactly: \(\sigma_r = A - B/r^2\) and \(\sigma_\theta = A + B/r^2\) (thick_wall_cylinder_stresses()). The hoop stress is highest at the bore, and no thickness of wall can carry an internal pressure above the material’s strength. The example plots the stresses through a gun-barrel wall and finds the radius ratio at which the thin-wall formula is 5% low.

import matplotlib.pyplot as plt
import numpy as np
from scipy.optimize import brentq

from engineeringkit.structural_engineering import thick_wall_cylinder_stresses, thin_wall_vessel_stresses

Stresses through a thick wall

ri, ro, p = 0.05, 0.1, 200e6
r = np.linspace(ri, ro, 201)
radial, hoop, axial = thick_wall_cylinder_stresses(r, ri, ro, p)
print(f"hoop stress {hoop[0] / 1e6:.0f} MPa at the bore, {hoop[-1] / 1e6:.0f} MPa outside")
print(f"thin-wall formula {p * ri / (ro - ri) / 1e6:.0f} MPa")
assert np.isclose(hoop[0], p * (ro**2 + ri**2) / (ro**2 - ri**2))
assert np.isclose(np.trapezoid(hoop, r), p * ri)  # the wall carries the bursting force p * 2 ri per unit length

fig, ax = plt.subplots(figsize=(6, 3.5))
ax.plot(r * 1e3, hoop / 1e6, label="hoop")
ax.plot(r * 1e3, radial / 1e6, label="radial")
ax.plot(r * 1e3, axial / 1e6, label="axial (closed ends)")

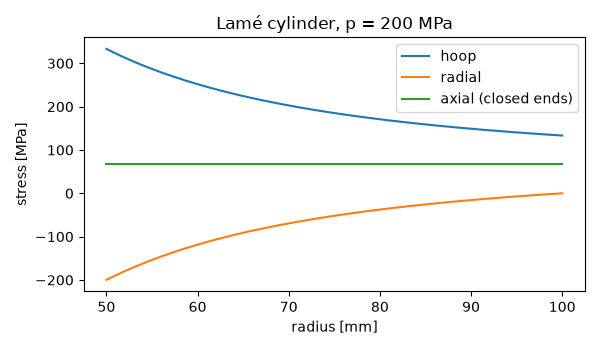

ax.set(xlabel="radius [mm]", ylabel="stress [MPa]", title=f"Lamé cylinder, p = {p / 1e6:.0f} MPa")
ax.legend()
fig.tight_layout()

hoop stress 333 MPa at the bore, 133 MPa outside
thin-wall formula 200 MPa

When is a wall thin?

def error(ratio, t=1.0):
    """Shortfall of the thin-wall hoop stress against Lamé's peak, for inner radius / thickness."""
    exact = thick_wall_cylinder_stresses(ratio * t, ratio * t, (ratio + 1) * t, 1.0)[1]
    return 1 - thin_wall_vessel_stresses(1.0, ratio * t, t)[0] / exact


ratios = np.linspace(1, 40, 200)
limit = brentq(lambda k: error(k) - 0.05, 1, 40)
print(f"the thin-wall hoop stress is 5% low at r/t = {limit:.1f}")
assert 9 < limit < 11

fig, ax = plt.subplots(figsize=(6, 3.5))
ax.plot(ratios, 100 * np.array([error(k) for k in ratios]))
ax.axvline(limit, color="gray", ls="--")

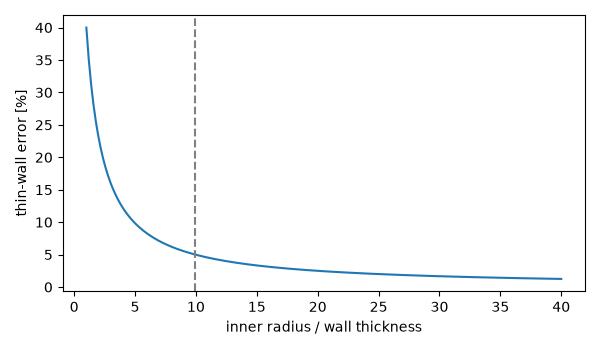

ax.set(xlabel="inner radius / wall thickness", ylabel="thin-wall error [%]")
fig.tight_layout()

plt.show()

the thin-wall hoop stress is 5% low at r/t = 10.0
