Fanno flow: friction chokes a duct (1904)

Gino Fanno’s 1904 diploma thesis at the ETH Zürich, written under Aurel Stodola, followed an adiabatic gas along a constant-area pipe with wall friction. Friction drives the Mach number towards one, from below in subsonic flow and from above in supersonic flow, while the stagnation temperature stays fixed and the stagnation pressure falls. The states lie on a Fanno line in the temperature-entropy plane, whose point of maximum entropy is the sonic state. fanno_flow() gives every ratio to that sonic state, and fanno_choking_length() the pipe length that chokes it. This example marches the friction ODE down a pipe and checks the closed form.

import matplotlib.pyplot as plt
import numpy as np
from scipy.integrate import solve_ivp

from engineeringkit.aerodynamics import fanno_choking_length, fanno_flow

gamma, D, f = 1.4, 0.05, 0.02

March the Mach number down the pipe

Momentum and energy give \(\frac{dM}{dx} = \frac{f}{2D}\,\frac{\gamma M^3(1 + \tfrac{\gamma-1}{2}M^2)}{1 - M^2}\) with the Darcy friction factor \(f\).

def dM_dx(x, M):
    return f / (2 * D) * gamma * M**3 * (1 + (gamma - 1) / 2 * M**2) / (1 - M**2)


fig, axes = plt.subplots(1, 2, figsize=(10, 4))
for M_in in (0.3, 0.5, 2.0, 3.0):
    L_star = float(fanno_choking_length(M_in, D, f, gamma))
    sonic = solve_ivp(lambda x, M: dM_dx(x, M), (0, 0.999 * L_star), [M_in], rtol=1e-10, atol=1e-12, dense_output=True)
    x = np.linspace(0, 0.999 * L_star, 200)
    axes[0].plot(x / D, sonic.sol(x)[0], label=f"$M_1$ = {M_in}, $L^*$ = {L_star:.2f} m")
    print(f"M1 = {M_in}: L* = {L_star:.3f} m, Mach after 0.999 L* = {sonic.y[0, -1]:.3f}")
    assert abs(sonic.y[0, -1] - 1) < 0.1
axes[0].axhline(1, color="gray", lw=0.8)

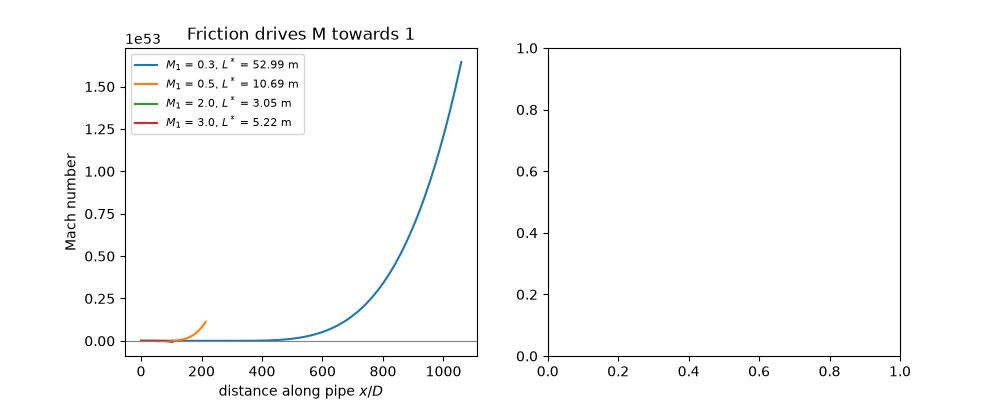

axes[0].set(xlabel="distance along pipe $x/D$", ylabel="Mach number", title="Friction drives M towards 1")
axes[0].legend(fontsize=8)

M1 = 0.3: L* = 52.993 m, Mach after 0.999 L* = 1.000
M1 = 0.5: L* = 10.691 m, Mach after 0.999 L* = 1.000
M1 = 2.0: L* = 3.050 m, Mach after 0.999 L* = 1.000
M1 = 3.0: L* = 5.222 m, Mach after 0.999 L* = 1.000

<matplotlib.legend.Legend object at 0x7fd5b65bb830>

The Fanno line

Entropy relative to the sonic state is \((s - s^*)/c_p = \ln(T/T^*) - \tfrac{\gamma-1}{\gamma}\ln(p/p^*)\). Its maximum, where friction can do no more, is at \(M = 1\).

M = np.linspace(0.15, 3.5, 400)
state = fanno_flow(M, gamma)
entropy = np.log(state.temperature_ratio) - (gamma - 1) / gamma * np.log(state.pressure_ratio)
axes[1].plot(entropy, state.temperature_ratio)
axes[1].plot(0, 1, "ko")
axes[1].set(xlabel="$(s - s^*)/c_p$", ylabel="$T/T^*$", title="Fanno line")
axes[1].annotate("subsonic", (entropy[20], state.temperature_ratio[20]))
axes[1].annotate("supersonic", (entropy[-60], state.temperature_ratio[-60]))
fig.tight_layout()

assert np.isclose(M[np.argmax(entropy)], 1.0, atol=0.01)
assert np.isclose(float(fanno_flow(2.0).friction_parameter) / 4, 0.30500, atol=1e-5)

plt.show()
