Rankine-Hugoniot jump conditions across a normal shock

W. J. Macquorn Rankine (1870) and Pierre-Henri Hugoniot (1887-1889) derived the jump in state across a shock from conservation of mass, momentum and energy alone. For a normal shock in a perfect gas the downstream Mach number and pressure ratio are normal_shock_mach2() and normal_shock_pressure_ratio(). This example reconstructs the full downstream state and checks the three conservation laws, the entropy rise, and the loss of stagnation pressure.

import matplotlib.pyplot as plt
import numpy as np

from engineeringkit.aerodynamics import normal_shock_mach2, normal_shock_pressure_ratio, speed_of_sound, stagnation_pressure

gamma, R = 1.4, 287.05287
p1, T1 = 101325.0, 288.15
M1 = np.linspace(1.0, 5.0, 81)

Reconstruct the downstream state

rho1 = p1 / (R * T1)
u1 = M1 * speed_of_sound(gamma, R, T1)
p2 = p1 * normal_shock_pressure_ratio(M1, gamma)
density_ratio = (gamma + 1) * M1**2 / ((gamma - 1) * M1**2 + 2)
rho2 = rho1 * density_ratio
T2 = p2 / (rho2 * R)
u2 = normal_shock_mach2(M1, gamma) * speed_of_sound(gamma, R, T2)
cp = gamma * R / (gamma - 1)

mass = rho2 * u2 / (rho1 * u1) - 1
momentum = (p2 + rho2 * u2**2) / (p1 + rho1 * u1**2) - 1
energy = (cp * T2 + u2**2 / 2) / (cp * T1 + u1**2 / 2) - 1
print(f"max conservation residuals: mass {np.max(abs(mass)):.1e}, momentum {np.max(abs(momentum)):.1e}, energy {np.max(abs(energy)):.1e}")
assert np.allclose([mass, momentum, energy], 0, atol=1e-12)

max conservation residuals: mass 3.3e-16, momentum 4.4e-16, energy 6.7e-16

Entropy rises and stagnation pressure falls

entropy = cp * np.log(T2 / T1) - R * np.log(p2 / p1)
p01 = stagnation_pressure(p1, M1, gamma)
p02 = stagnation_pressure(p2, normal_shock_mach2(M1, gamma), gamma)
assert np.all(entropy >= -1e-9)
print(f"at M1 = 2: p02/p01 = {np.interp(2, M1, p02 / p01):.4f}, M2 = {float(normal_shock_mach2(2.0)):.4f}")

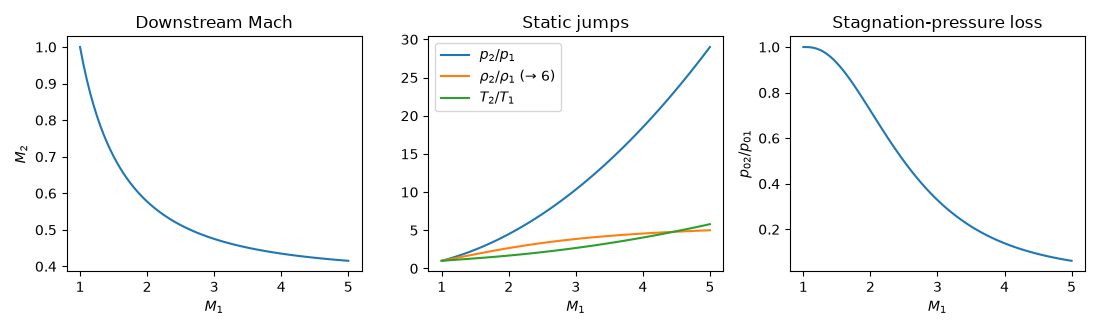

fig, axes = plt.subplots(1, 3, figsize=(11, 3.3))
axes[0].plot(M1, normal_shock_mach2(M1, gamma))
axes[0].set(xlabel="$M_1$", ylabel="$M_2$", title="Downstream Mach")
axes[1].plot(M1, p2 / p1, label="$p_2/p_1$")
axes[1].plot(M1, density_ratio, label=r"$\rho_2/\rho_1$ (→ 6)")
axes[1].plot(M1, T2 / T1, label="$T_2/T_1$")
axes[1].set(xlabel="$M_1$", title="Static jumps")
axes[1].legend()
axes[2].plot(M1, p02 / p01)
axes[2].set(xlabel="$M_1$", ylabel="$p_{02}/p_{01}$", title="Stagnation-pressure loss")
fig.tight_layout()

plt.show()

at M1 = 2: p02/p01 = 0.7209, M2 = 0.5774
