Shannon’s entropy and the binary symmetric channel

Claude Shannon’s “A mathematical theory of communication” (1948) measured information by entropy, \(H = -\sum p\log_2 p\). For a binary source entropy_binary() peaks at one bit when both symbols are equally likely. The same paper defined channel capacity. A binary symmetric channel that flips each bit with probability \(p\) has capacity \(1 - H(p)\) (binary_symmetric_capacity()): even a very noisy channel can carry information reliably at a reduced rate, and a channel with \(p = 1/2\) carries nothing.

import matplotlib.pyplot as plt
import numpy as np

from engineeringkit.communications import binary_symmetric_capacity, entropy_binary

Entropy as the limit of lossless compression

The empirical entropy of a long biased bit stream matches \(H(p)\).

rng = np.random.default_rng(1948)
for p in [0.5, 0.1, 0.01]:
    bits = rng.random(200_000) < p
    blocks = bits[: bits.size // 8 * 8].reshape(-1, 8) @ (1 << np.arange(8))
    counts = np.bincount(blocks, minlength=256) / blocks.size
    empirical = -np.sum(counts[counts > 0] * np.log2(counts[counts > 0])) / 8
    print(f"p = {p:4}: H(p) = {entropy_binary(p):.4f} bit, empirical (8-bit blocks) = {empirical:.4f} bit")
    assert np.isclose(empirical, entropy_binary(p), atol=0.01)

p =  0.5: H(p) = 1.0000 bit, empirical (8-bit blocks) = 0.9991 bit
p =  0.1: H(p) = 0.4690 bit, empirical (8-bit blocks) = 0.4678 bit
p = 0.01: H(p) = 0.0808 bit, empirical (8-bit blocks) = 0.0809 bit

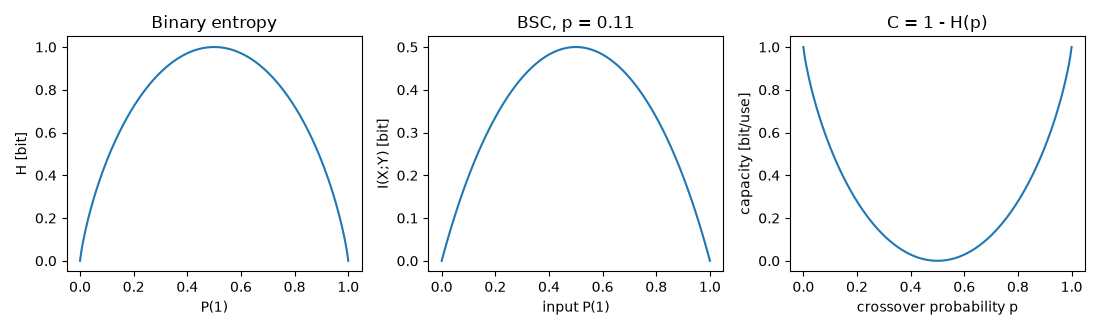

Capacity of a bit-flipping channel

Mutual information \(I = H(Y) - H(Y|X)\) over input distributions peaks at the uniform input, where it equals \(1 - H(p)\).

p = np.linspace(0, 1, 201)
q = np.linspace(0, 1, 201)
crossover = 0.11
mutual = entropy_binary(q * (1 - crossover) + (1 - q) * crossover) - entropy_binary(crossover)
assert np.isclose(mutual.max(), binary_symmetric_capacity(crossover))
fig, axes = plt.subplots(1, 3, figsize=(11, 3.3))
axes[0].plot(p, entropy_binary(p))
axes[0].set(xlabel="P(1)", ylabel="H [bit]", title="Binary entropy")
axes[1].plot(q, mutual)
axes[1].set(xlabel="input P(1)", ylabel="I(X;Y) [bit]", title=f"BSC, p = {crossover}")
axes[2].plot(p, binary_symmetric_capacity(p))
axes[2].set(xlabel="crossover probability p", ylabel="capacity [bit/use]", title="C = 1 - H(p)")
fig.tight_layout()

plt.show()
