Poisson’s law of rare failures (1837)

Poisson (1837) derived the distribution of the number of rare events among many trials, \(P(k) = (\lambda T)^k e^{-\lambda T}/k!\) (poisson_failures_probability()). A fleet of units failing independently at a constant rate \(\lambda\) has \(\lambda T\) expected failures in total operating time \(T\) (expected_failures()), and the count is Poisson. The example simulates failures as exponential gaps and checks the counts, then sizes a spares kit.

import matplotlib.pyplot as plt
import numpy as np

from engineeringkit.reliability import expected_failures, poisson_failures_probability

Simulate failure counts

50 units, each failing at \(2\times10^{-5}\) per hour, run for a year of 8760 h; every failed unit is replaced at once. Time unit: hours.

rng = np.random.default_rng(1837)
lam, units, hours = 2e-5, 50, 8760.0
mean = expected_failures(lam, units * hours)
trials = 20_000
gaps = rng.exponential(1 / lam, size=(trials, units, 8))
counts = (np.cumsum(gaps, axis=2) <= hours).sum(axis=(1, 2))
k = np.arange(0, 25)
pmf = np.array([poisson_failures_probability(int(i), lam, units * hours) for i in k])
observed = np.bincount(counts, minlength=k.size)[: k.size] / trials
print(f"expected failures per year: {mean:.2f}; simulated mean {counts.mean():.2f}")
assert np.isclose(pmf.sum(), 1, atol=1e-6)
assert np.abs(observed - pmf).max() < 0.01

expected failures per year: 8.76; simulated mean 8.77

How many spares?

Stock enough spares that the year’s failures exceed them with probability under 1%.

cumulative = np.cumsum(pmf)
spares = int(np.argmax(cumulative >= 0.99))
print(f"spares for 99% cover: {spares} (P = {cumulative[spares]:.4f})")

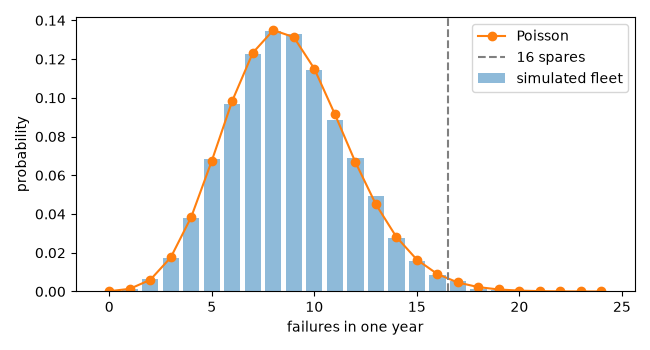

fig, ax = plt.subplots(figsize=(6.5, 3.5))
ax.bar(k, observed, alpha=0.5, label="simulated fleet")
ax.plot(k, pmf, "o-", color="C1", label="Poisson")
ax.axvline(spares + 0.5, color="gray", ls="--", label=f"{spares} spares")
ax.set(xlabel="failures in one year", ylabel="probability")
ax.legend()
fig.tight_layout()

assert cumulative[spares] >= 0.99 > cumulative[spares - 1]

plt.show()

spares for 99% cover: 16 (P = 0.9913)
