Hofstadter’s Butterfly

Sweeping the flux per plaquette continuously (rather than fixing it, as the Aharonov-Bohm ring example does) reveals a self-similar, fractal spectrum: at rational flux p/q, each Landau-level-like band splits into q sub-bands, and the whole pattern is periodic in the flux with period one flux quantum. This script sweeps set_magnetic_field() over a finite square-lattice flake and plots the resulting “butterfly”.

import numpy as np
import matplotlib.pyplot as plt

from tbkit.lattice import Lattice
from tbkit.system import System
from tbkit.plot import Plot


N1, N2 = 16, 16  # flake size


def flake(alpha):
    lat = Lattice(unit_cell=[{'tag': 'a', 'r0': (0., 0.)}], prim_vec=[(1., 0.), (0., 1.)])
    lat.get_lattice(n1=N1, n2=N2)
    sys = System(lat)
    sys.set_hopping([{'n': 1, 't': 1.}])
    if alpha != 0.:
        sys.set_magnetic_field(alpha=alpha)
    sys.get_ham()
    sys.get_eig()
    return sys

The flake

A square-lattice flake. The flux swept below threads each of its square plaquettes; the Peierls substitution multiplies the bonds drawn here by a phase, leaving their magnitude (and so this picture) unchanged.

fig0 = Plot(flake(alpha=0.)).lattice(plt_hop=True, ms=7, figsize=(5, 5))

Sanity checks that hold at every flux

These hold regardless of the (fractal, hard to predict in detail) spectrum shape itself:

1. \(|E|\le 4|t|\) always (Gershgorin: at most 4 neighbors of hopping magnitude \(|t|=1\), and the Peierls substitution changes their phase, never their magnitude).

2. The spectrum is symmetric under \(E \to -E\) (the square lattice is bipartite, and that chiral symmetry survives the Peierls substitution since it only ever multiplies hoppings by a phase).

3. The spectrum is periodic in \(\alpha\) with period 1 (one flux quantum per plaquette is gauge-equivalent to no flux at all).

alphas = np.linspace(0., 1., 161)
spectra = [flake(alpha).en.real for alpha in alphas]

max_abs_e = max(np.max(np.abs(en)) for en in spectra)
print('max|E| over the whole sweep: {:.4f} (Gershgorin bound: 4.0000)'.format(max_abs_e))
assert max_abs_e <= 4. + 1e-8

sym_ok = all(np.allclose(np.sort(en), -np.sort(en)[::-1], atol=1e-6) for en in spectra)
print('Particle-hole symmetry E -> -E holds at every flux: {}'.format(sym_ok))
assert sym_ok

periodic_ok = np.allclose(np.sort(spectra[0]), np.sort(spectra[-1]), atol=1e-6)
print('Spectrum at alpha=0 matches alpha=1 (period-1 flux quantum): {}'.format(periodic_ok))
assert periodic_ok

max|E| over the whole sweep: 3.9319 (Gershgorin bound: 4.0000)
Particle-hole symmetry E -> -E holds at every flux: True
Spectrum at alpha=0 matches alpha=1 (period-1 flux quantum): True

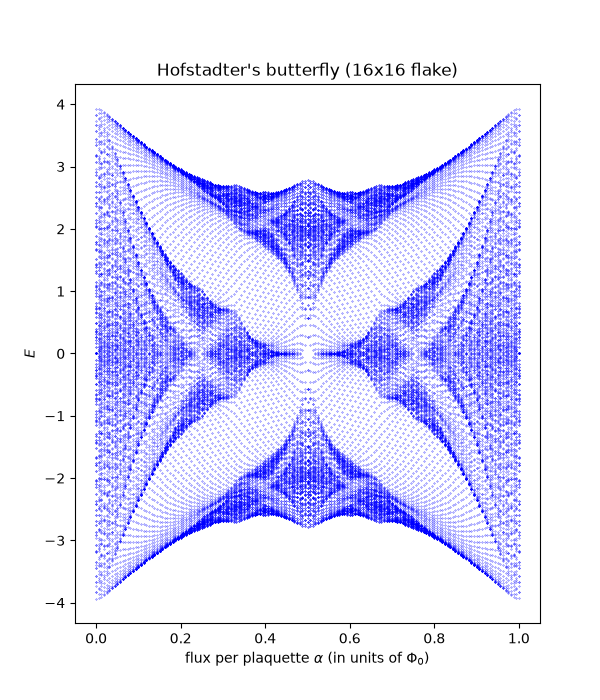

The butterfly itself

fig, ax = plt.subplots(figsize=(6, 7))
for alpha, en in zip(alphas, spectra):
    ax.plot(alpha*np.ones_like(en), en, '.', ms=0.5, color='b')
ax.set_xlabel(r'flux per plaquette $\alpha$ (in units of $\Phi_0$)')
ax.set_ylabel('$E$')
ax.set_title("Hofstadter's butterfly ({}x{} flake)".format(N1, N2))

Text(0.5, 1.0, "Hofstadter's butterfly (16x16 flake)")
